XBB-27-90G-HC

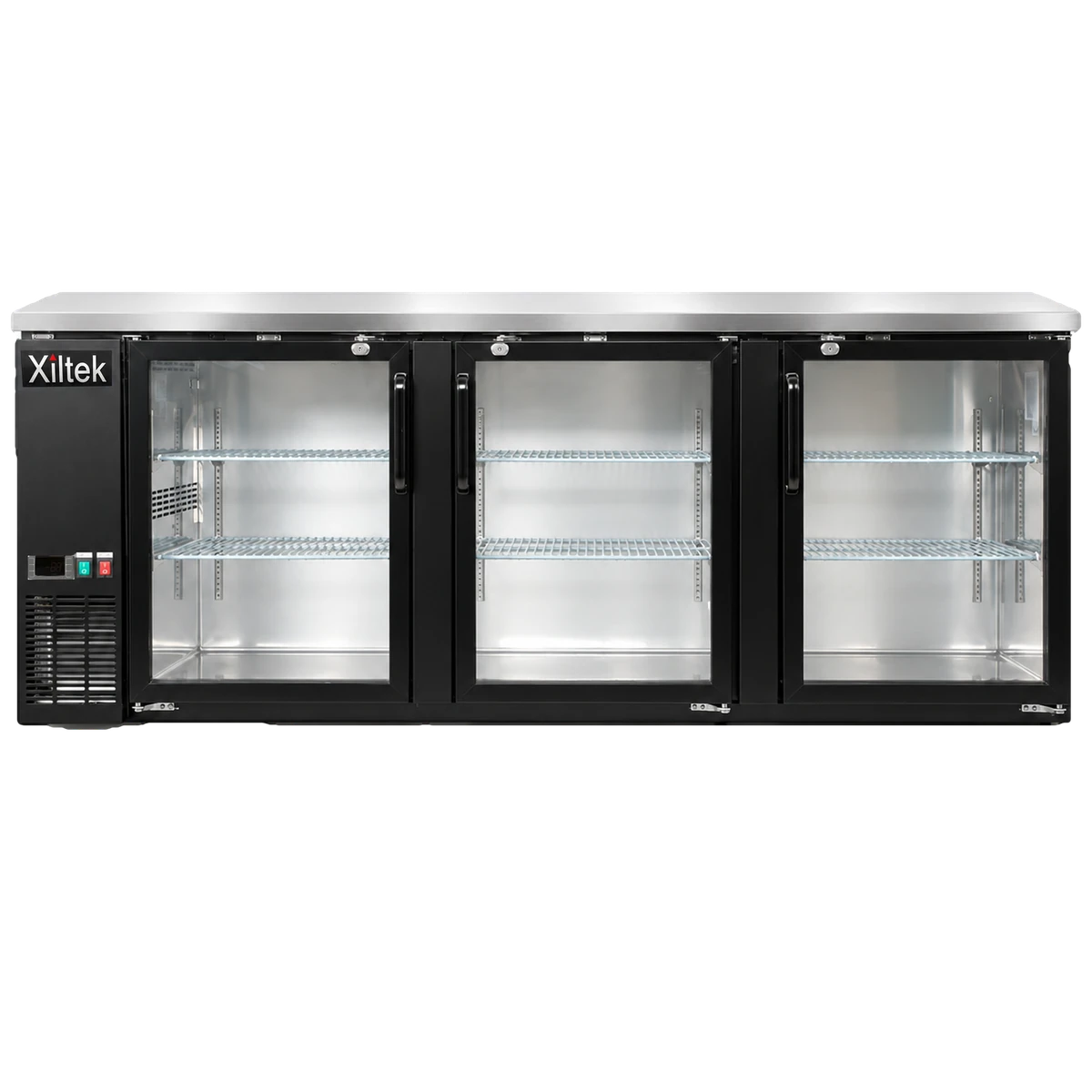

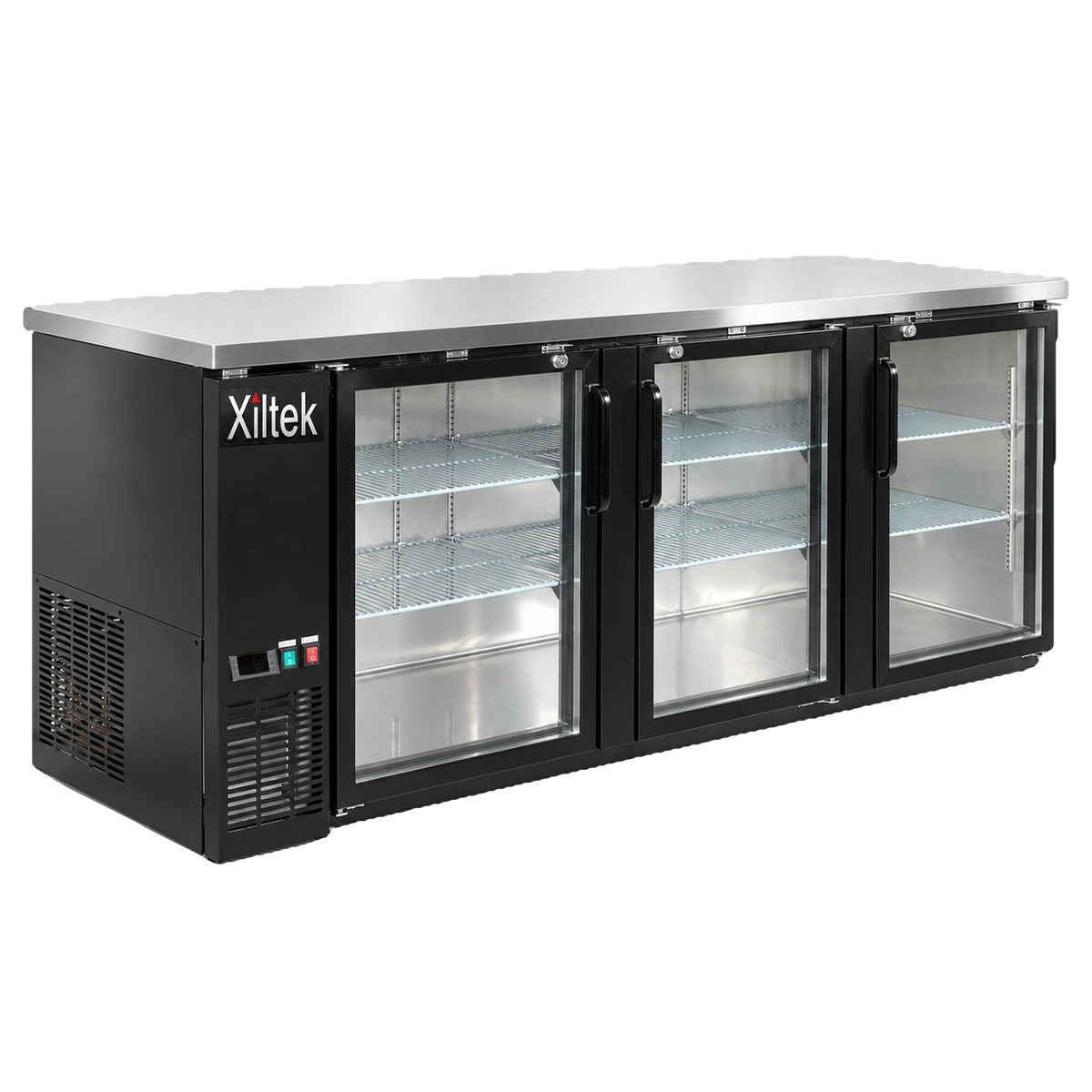

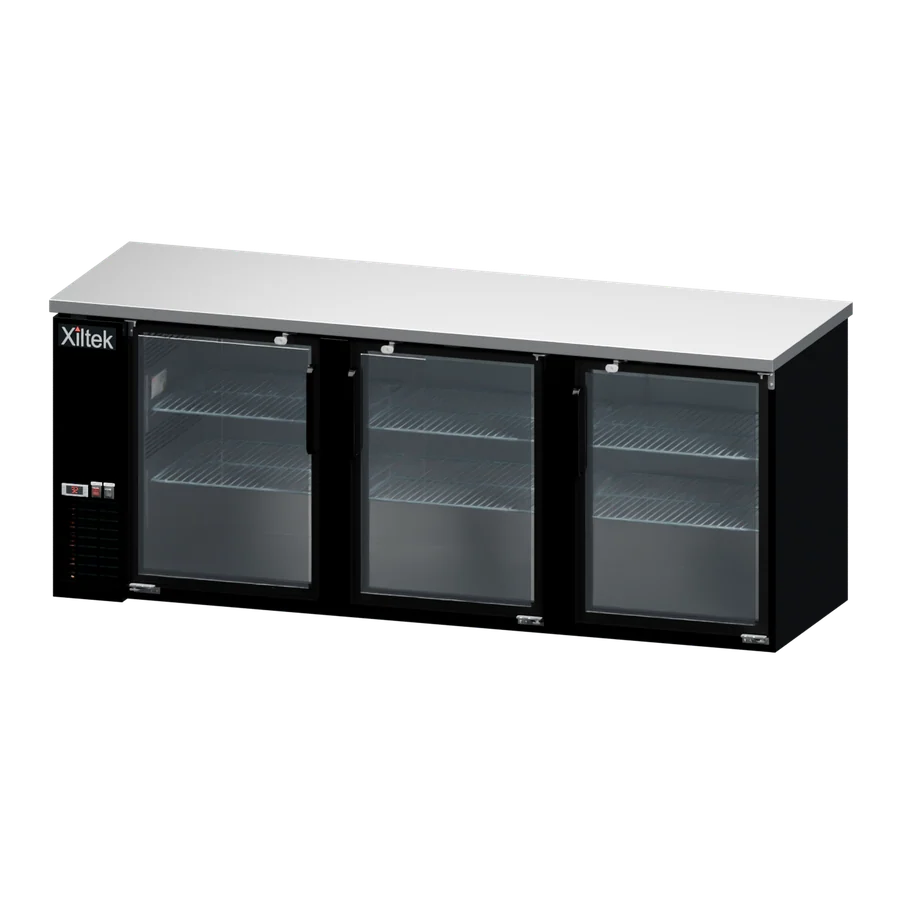

27" Depth 90" Three Glass Door Back Bar Refrigerator
Xiltek’s Back Bar Coolers are made with an entirely wear resistant vinyl on steel in a black finish including glass doors. It features an oversized, factory balanced, R290 Hydrocarbon natural refrigeration system that holds 33°F to 38°F(0.5°C to 3.3°C). The bottle cooler is designed to accommodate a variety of beer kegs for easy access. Other features include a standard LED light inside the cabinet, easily accessible condenser coil, and more.
HOLDS
33°F to 38°F
CAPACITY
4 (1/2) Kegs
POWER
115V · 4.7A

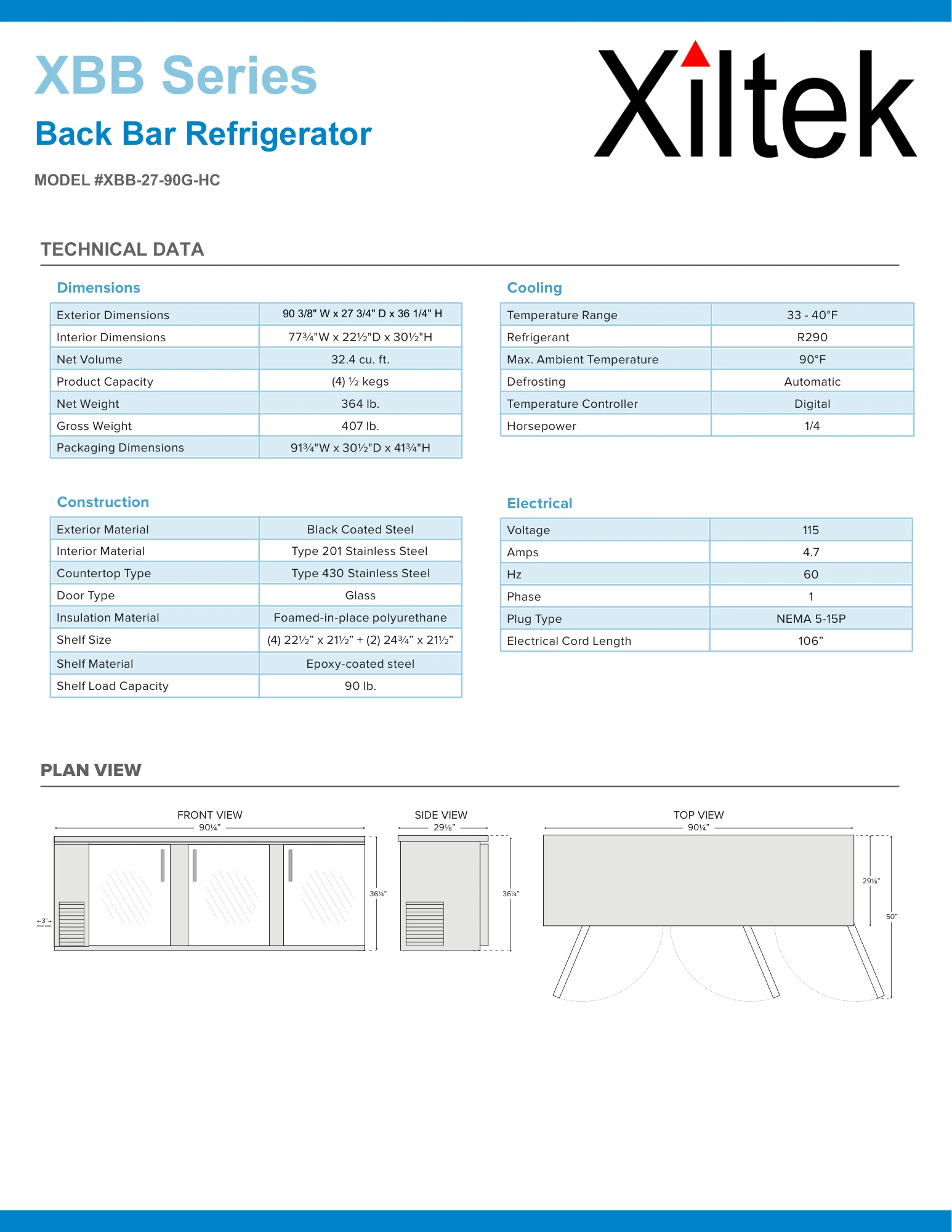

Specifications
- Model
- XBB-27-90G-HC
- Doors
- 3
- Shelves
- 6
- Dimensions (L x D x H)
- 90.38" x 27.75" x 36.25"
- Capacity
- 4 (1/2) Kegs
- HP
- 1/4+
- Voltage
- 115/60/1
- Amps
- 4.7
- NEMA Config
- 5-15P
- Casters
- Optional

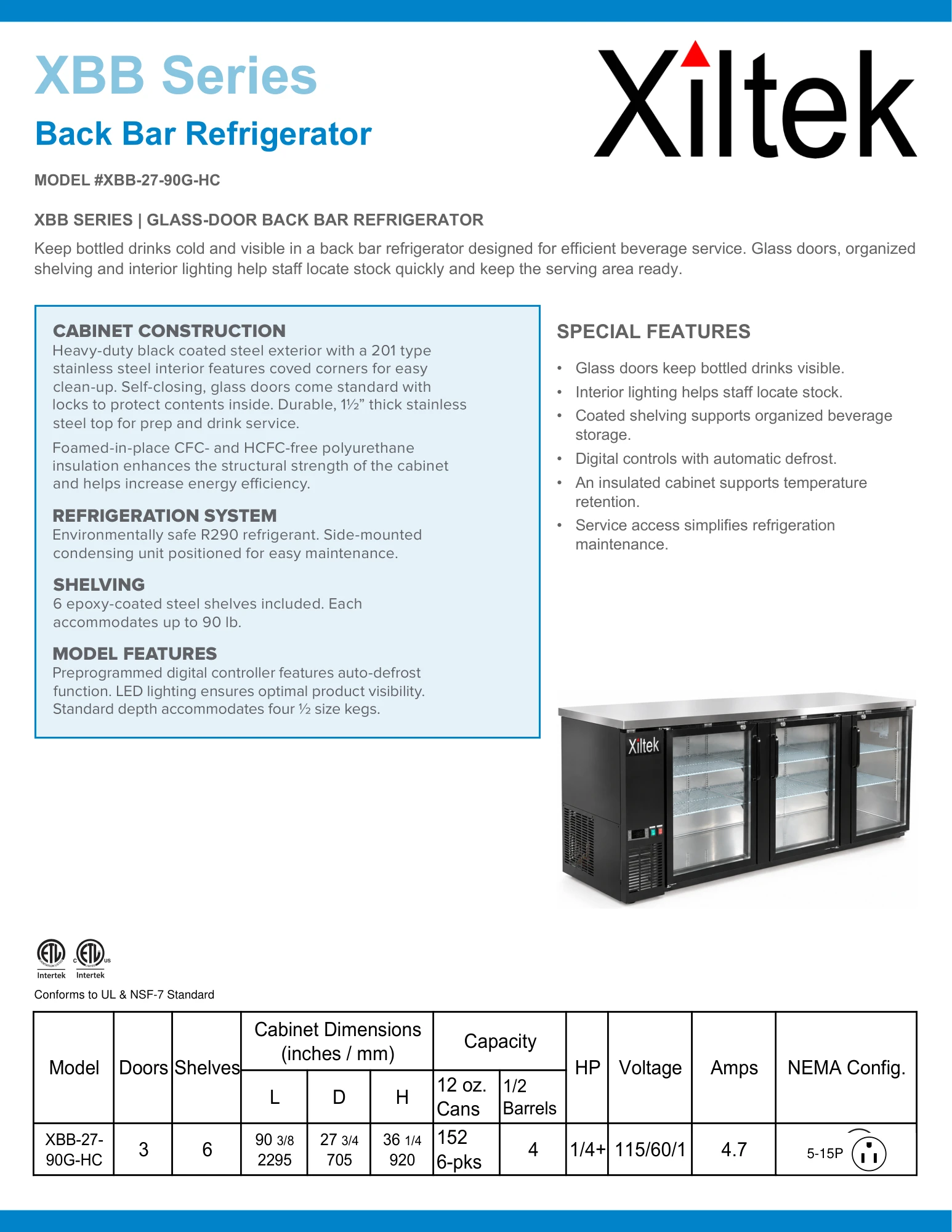

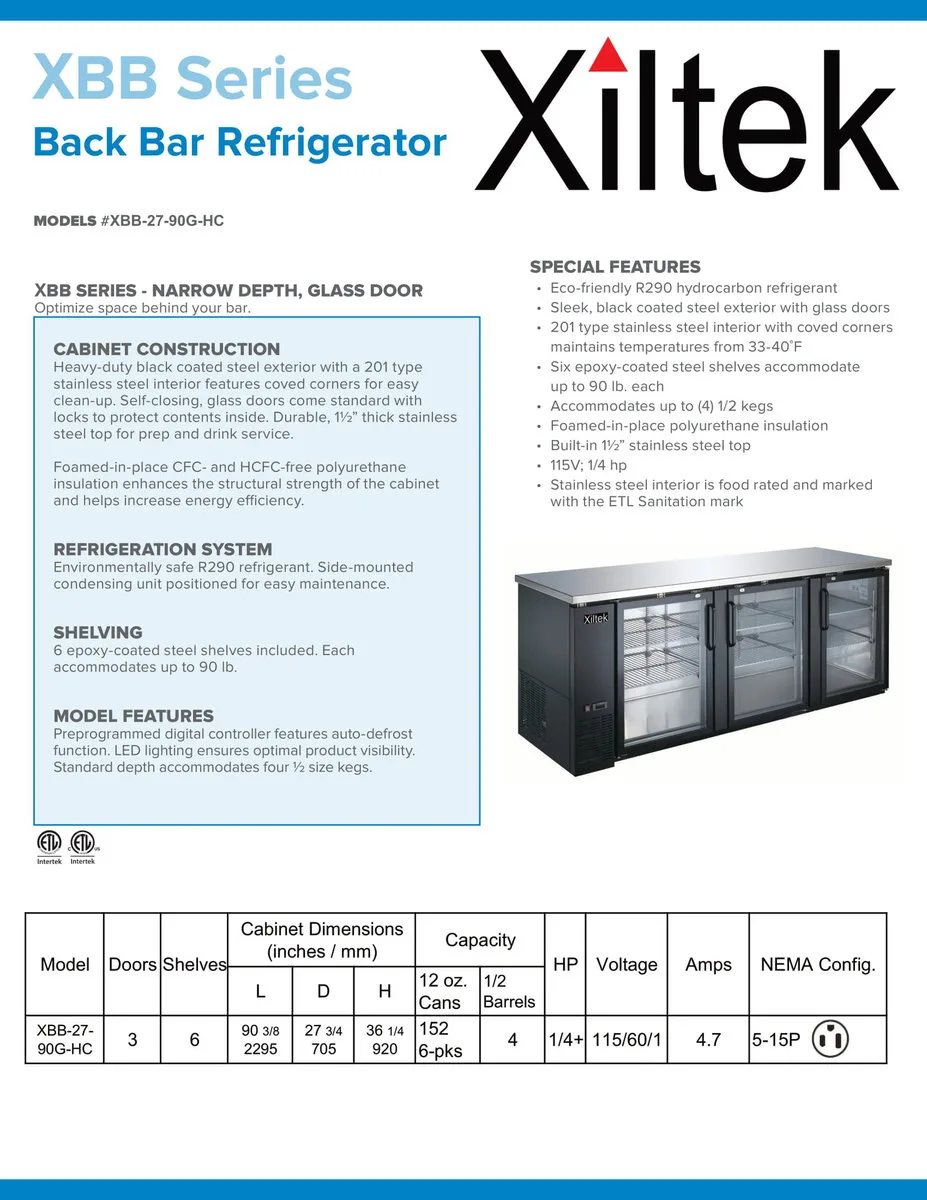

Features
- Standard, cabinet exterior construction includes attractive, wear resistant vinyl on steel in black finish. Stainless exterior options available. Standard interior construction utilizes stainless steel walls, floor and ceiling.
- HYDRO-CARBON R290 which is environmentally friendly and more efficient than R134a/R404a refrigerant.
- Units wired at factory and ready for connection to a 115/60/1 phase, 15 amp dedicated outlet.
- Oversized, factory balanced, refrigeration system holds 33°F to 38°F(0.5°C to 3.3°C)
- Great for packaged and bottled products.
- Standard LED light inside of the cabinet
- Easily accessible condenser coil for cleaning, and easy service access
- Designed to accommodate a variety of beer kegs
View all specificationsHide full specifications

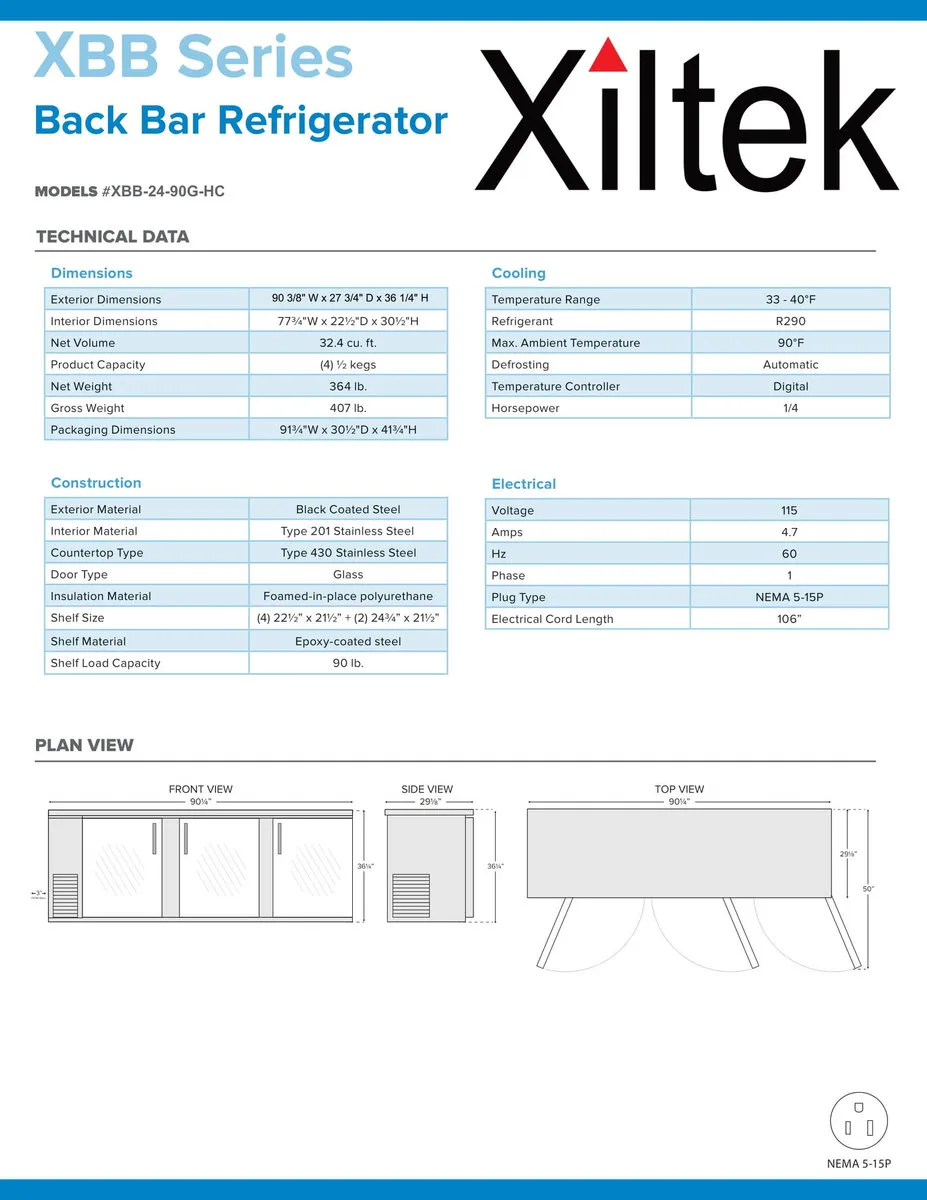

Dimensions
- Exterior Dimensions
- 90.38"W x 27.75"D x 36.25"H
- Net Volume
- 32.4 cu. ft.
- Net Weight
- 364 lb.
- Gross Weight
- 407 lb.
Construction
- Exterior Material
- Black Coated Steel
- Interior Material
- Type 201 Stainless Steel
- Countertop Type
- Type 430 Stainless Steel
- Door Type
- Glass
- Insulation Material
- Foamed-in-place polyurethane
- Shelf Material
- Epoxy-coated steel
- Shelf Load Capacity
- 90 lb.
Cooling
- Temperature Range
- 33 - 40°F
- Refrigerant
- R290
- Max. Ambient Temperature
- 90°F
- Defrosting
- Automatic
- Temperature Controller
- Digital
- Horsepower
- 1/4
Electrical
- Voltage
- 115
- Amps
- 4.7
- Hz
- 60
- Phase
- 1
- Plug Type
- NEMA 5-15P
- Electrical Cord Length
- 106"
Specifications are taken from the model's spec sheet and may be updated without notice. Please confirm key dimensions and electrical requirements before ordering.
