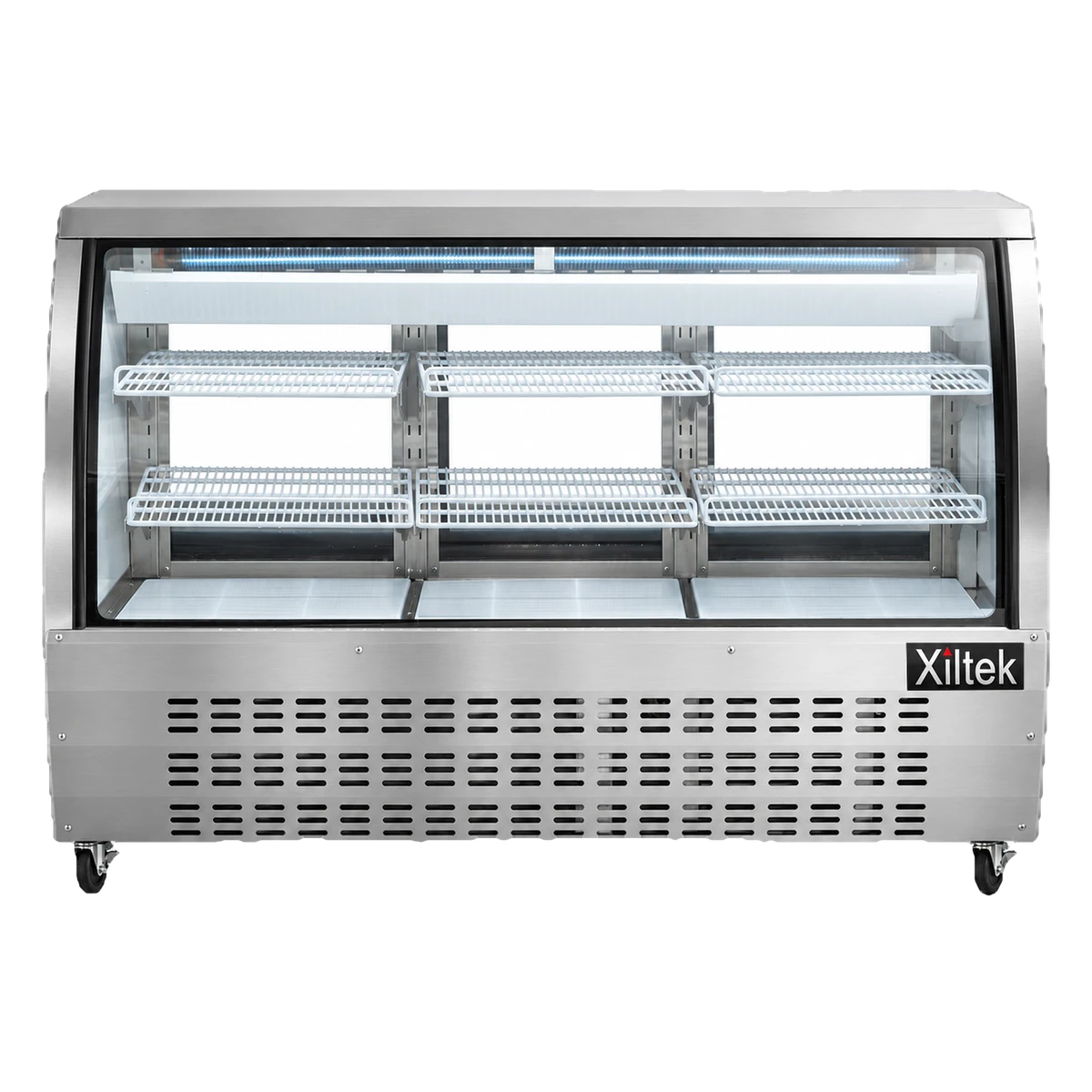

65" Deli Display Case
Making your food and products look as appealing as possible to customers is necessary to help increase sales.
Overview

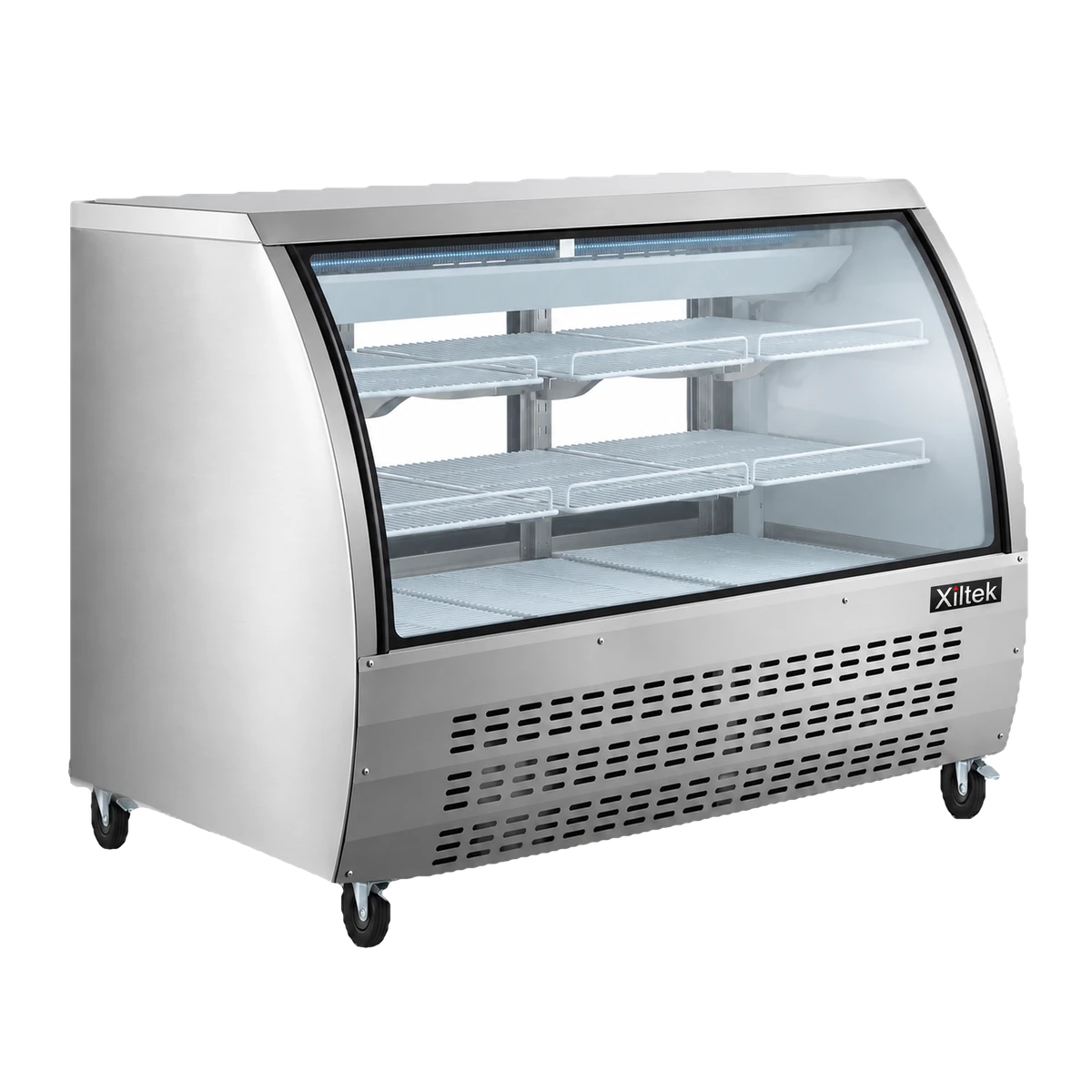

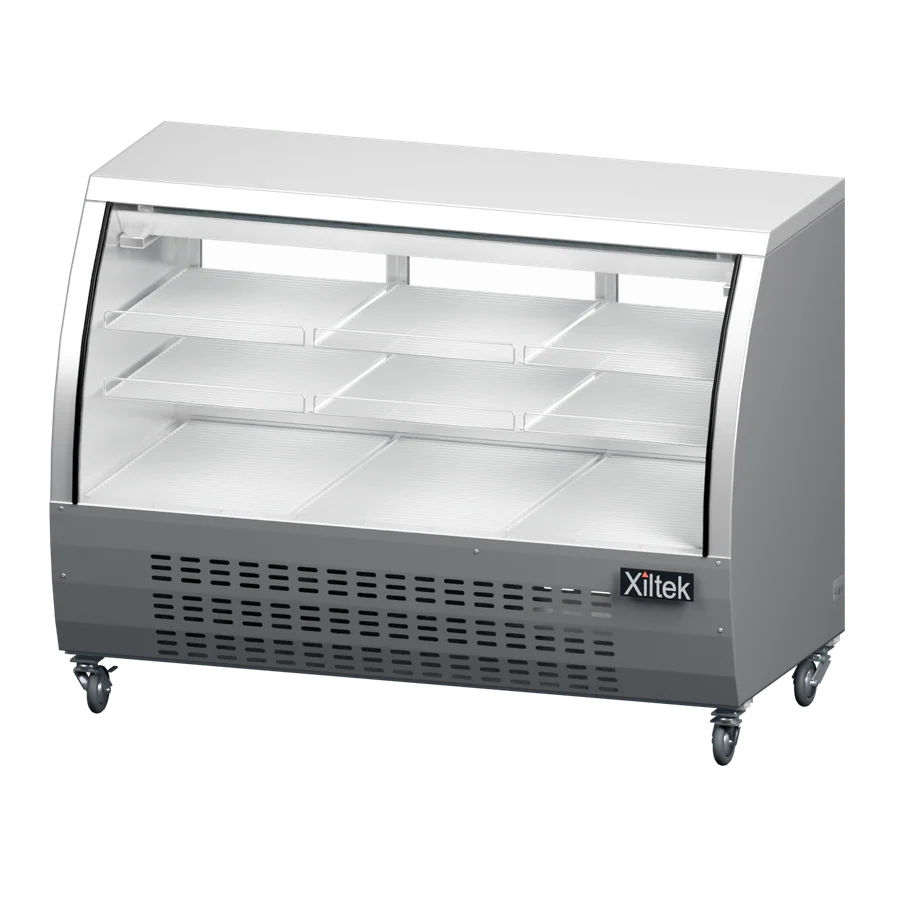

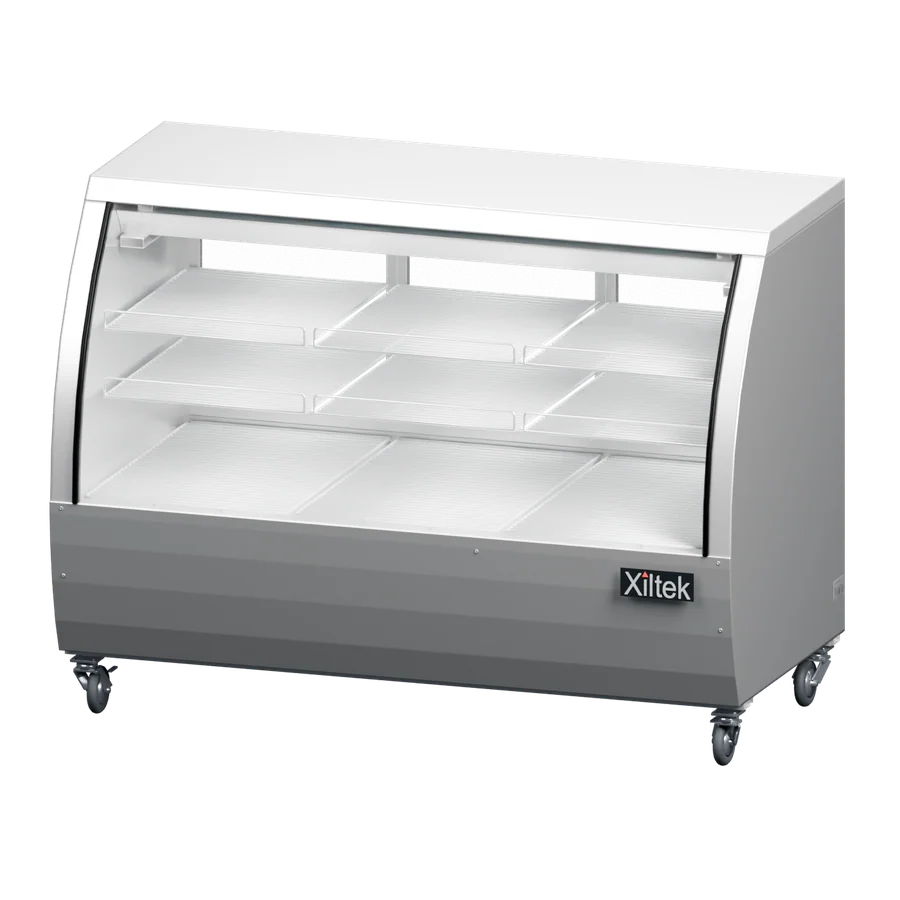

Making your food and products look as appealing as possible to customers is necessary to help increase sales. This is especially true for deli counters, where people will usually choose what kind of sandwich they'll have for lunch based or how good the meats and cheeses look. Of course, it's helpful if the case displaying your cold cuts is also attractive to look at,which also encourages sales. When looking for a solid appliance in which to store and show off your deli selections, choose the Xiltek stainless steel XDC-163 Deli Case. With features like an R290 hydrocarbon natural refrigeration system efficiently holding any temperatures ranging from 32°F to 43°F (0°C to 6.1°C), an electronic control system, simple installation, and more. Xiltek is here to make your business better.

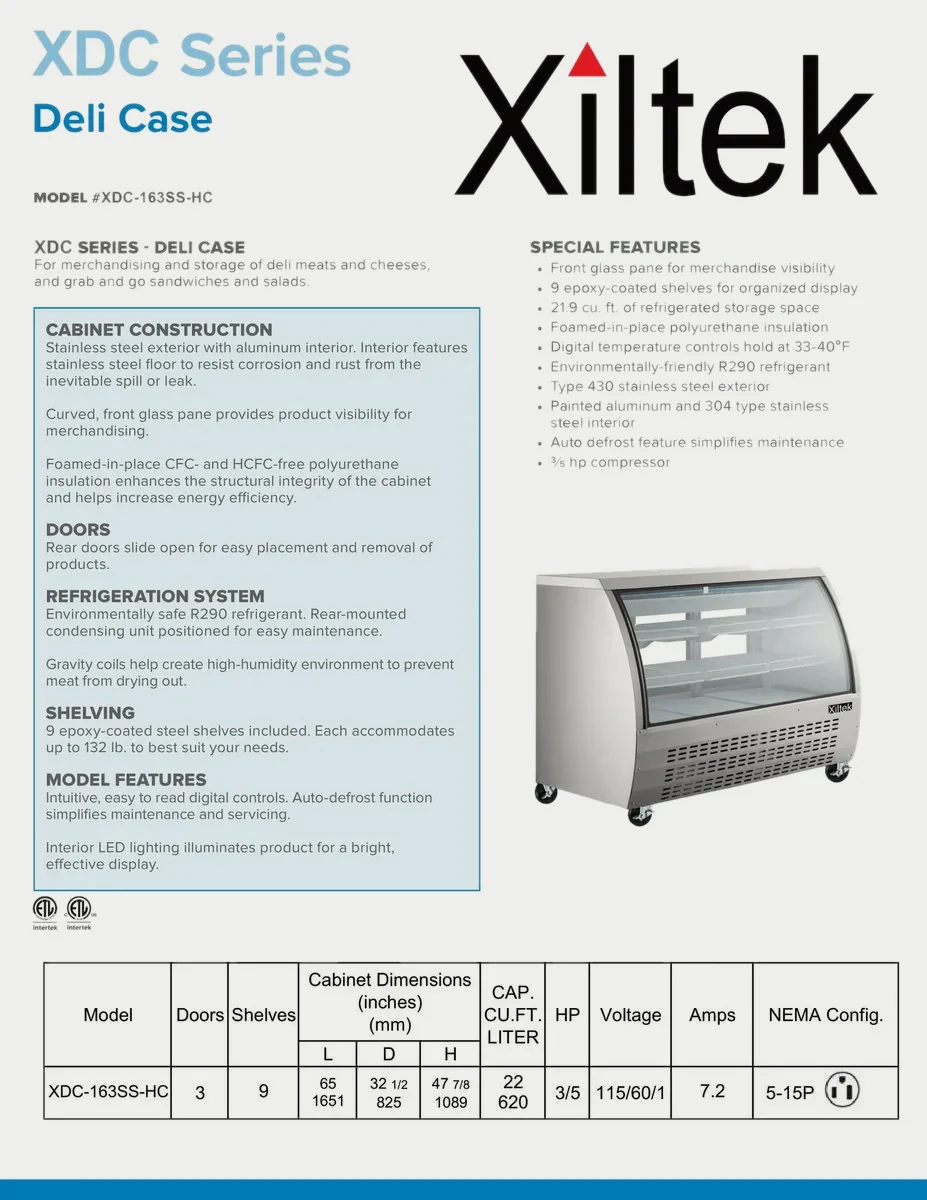

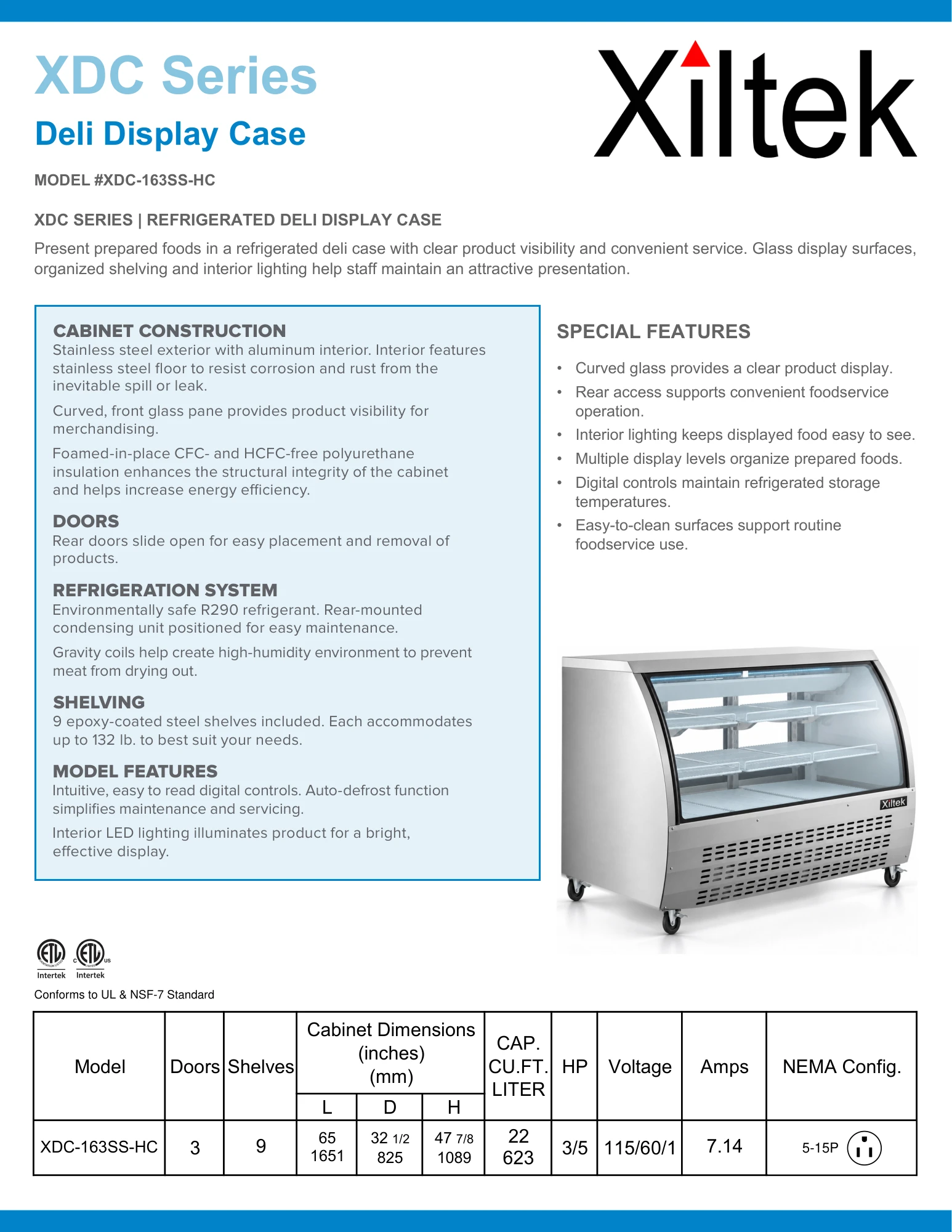

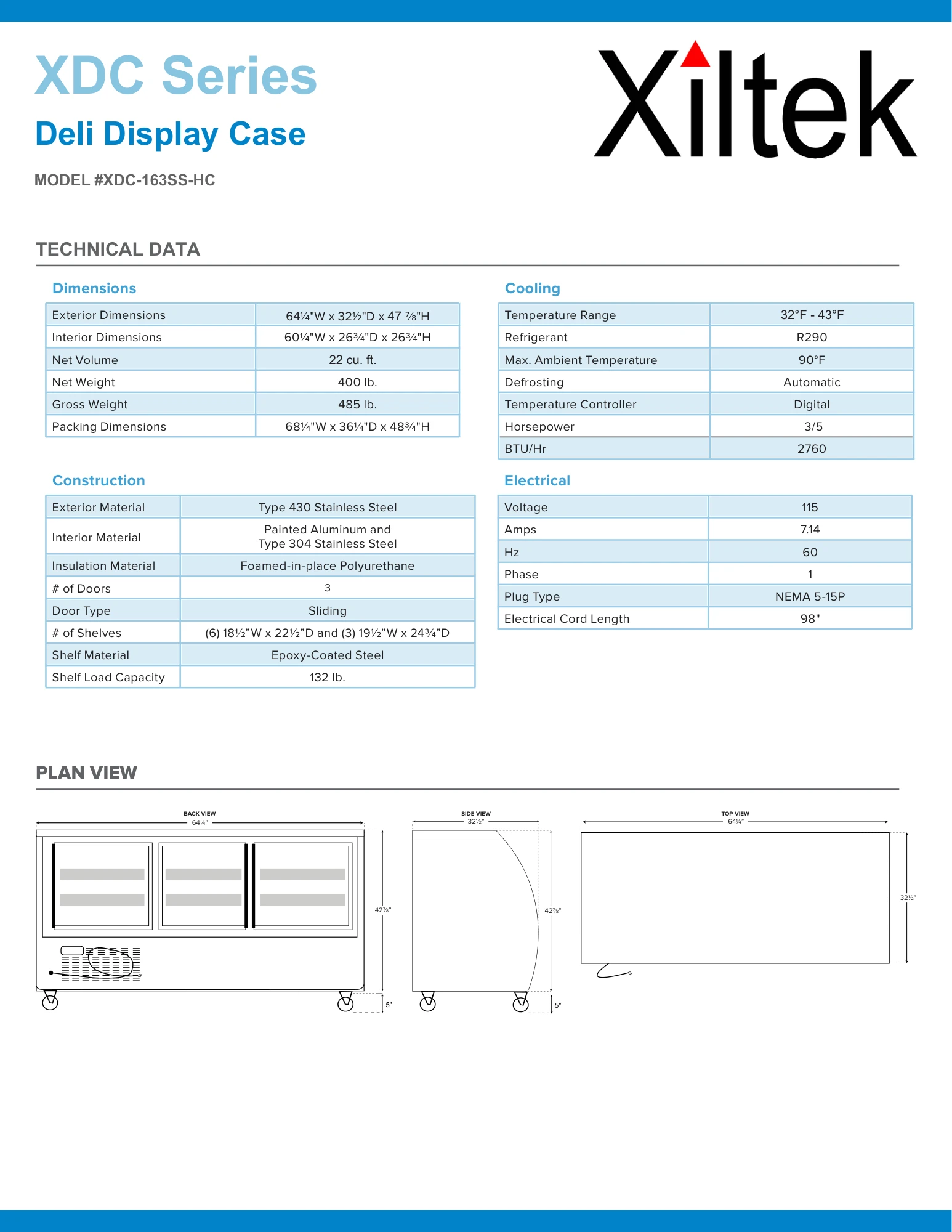

Specifications
- Model
- XDC-163SS-HC
- Doors
- 3
- Shelves
- 9
- Dimensions (L x D x H)
- 65" x 32.5" x 42.88"
- Capacity
- 22 cu. ft.
- HP
- 3/5
- Voltage
- 115/60/1
- Amps
- 7.14
- NEMA Config
- 5-15P
- Casters
- Pre-Installed
View all specificationsHide full specifications
Dimensions
- Exterior Dimensions
- 641/4"W x 321/2"D x 47 7/8"H
- Interior Dimensions
- 601/4"W x 263/4"D x 263/4"H
- Net Volume
- 22 cu. ft.
- Net Weight
- 400 lb.
- Gross Weight
- 485 lb.
- Packing Dimensions
- 681/4"W x 361/4"D x 483/4"H
Construction
- Exterior Material
- Type 430 Stainless Steel
- Insulation Material
- Foamed-in-place Polyurethane

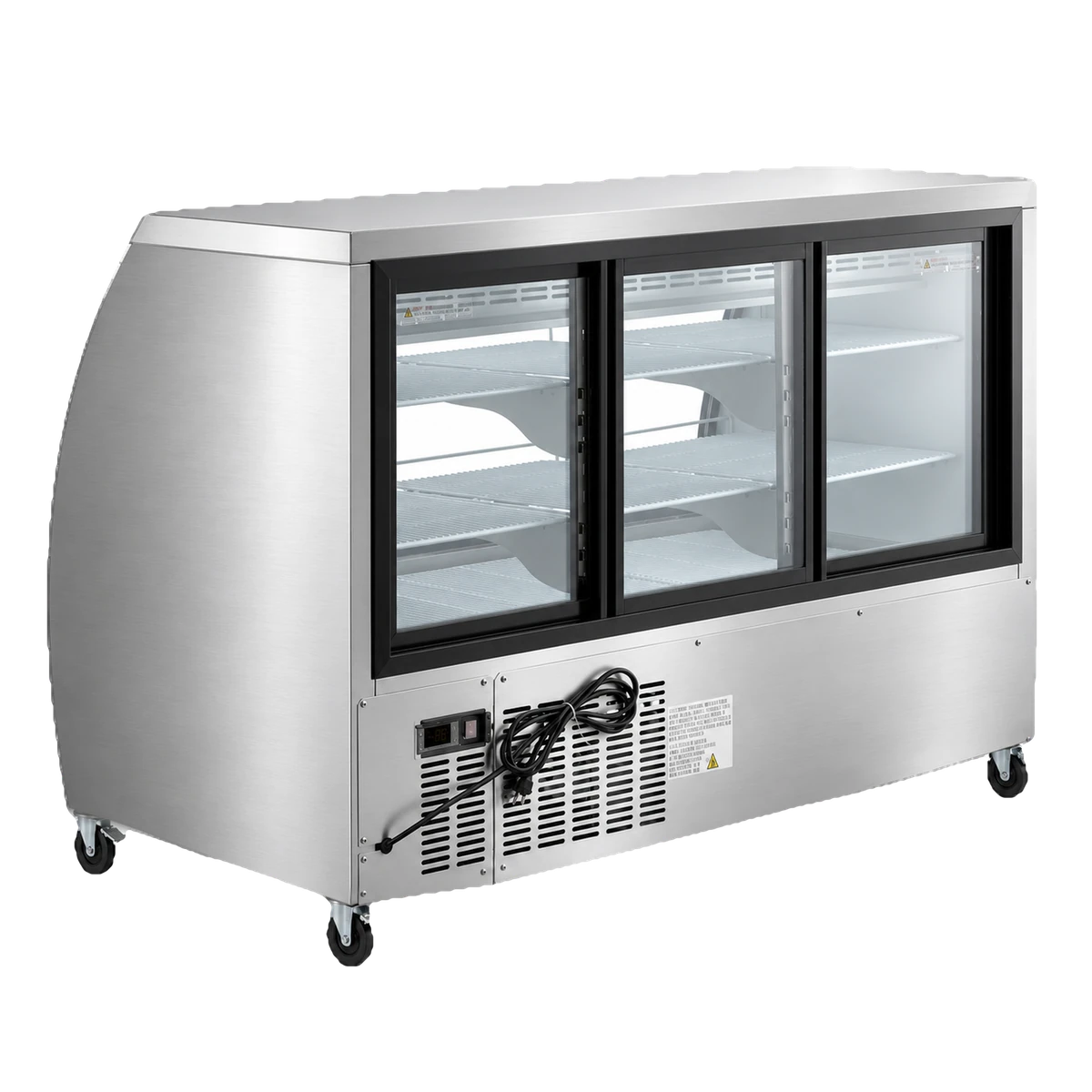

- Door Type
- Sliding
- # of Shelves
- (6) 181/2"W x 221/2"D and (3) 191/2"W x 243/4"D
- Shelf Material
- Epoxy-Coated Steel
- Shelf Load Capacity
- 132 lb.
- BTU/Hr
- 2760
Cooling
- Temperature Range
- 32°F to 43°F
- Refrigerant
- R290
- Max. Ambient Temperature
- 90°F
- Defrosting
- Automatic
- Temperature Controller
- Digital
- Horsepower
- 3/5
Electrical
- Voltage
- 115
- Amps
- 7.14
- Hz
- 60
- Phase
- 1
- Plug Type
- NEMA 5-15P
- Electrical Cord Length
- 98"
Features
- Cabinet constructionCoated steel exterior with an attractive aluminum interior liner and a stainless steel floor.
- Rounded interior cornersThe cabinet interior has rounded corners, which makes the storage room easy to clean.
- Gravity coil refrigerationA gravity coil system provides a high-humidity environment for exceptional preservation of meats and deli products. Holds 32°F to 43°F (0°C to 6.1°C).
- Electronic control systemAdjustable temperature set point and defrost frequency, with error codes to diagnose service issues.

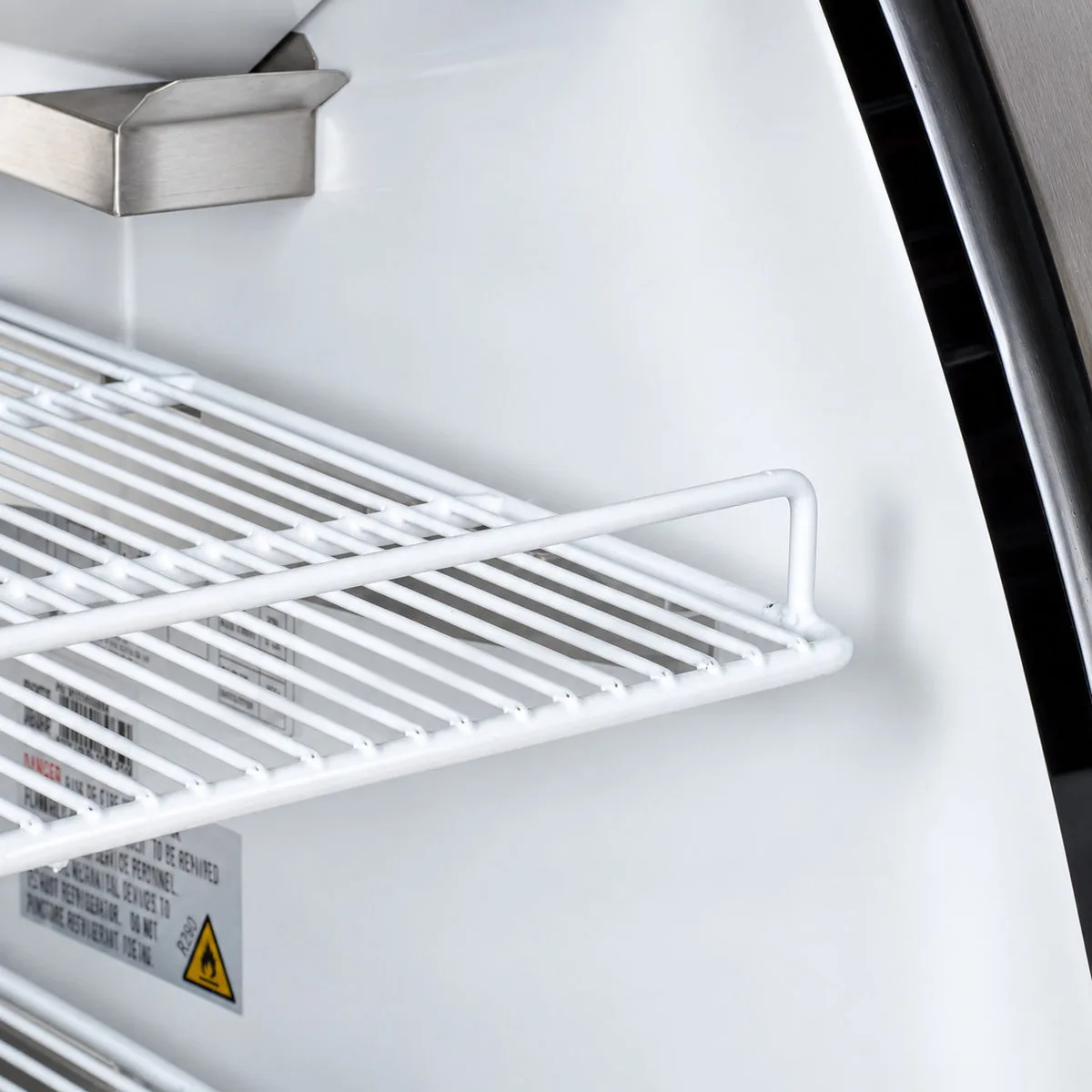

- Adjustable shelvesHeavy-duty, epoxy-coated shelves adjust to fit what you store.
- Heavy-duty castersStandard heavy-duty casters make it easy to move the unit and clean underneath it.
- Accessible condenser coilThe condenser coil is easy to reach for cleaning, and for easy service access.
