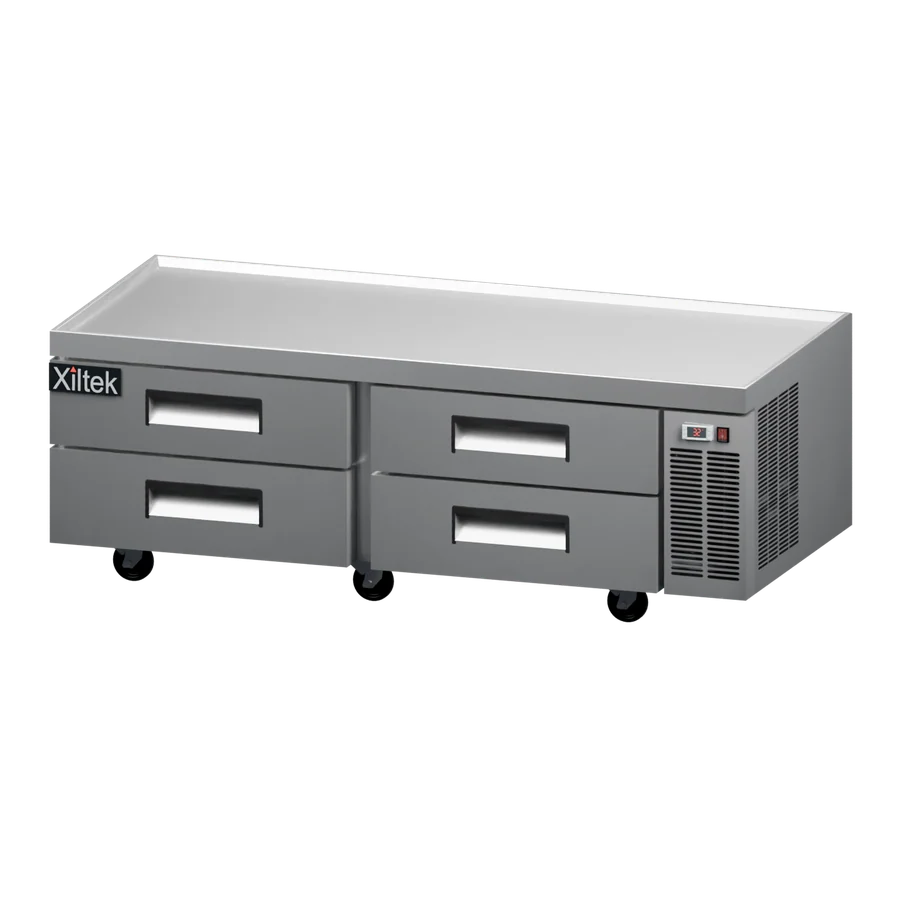

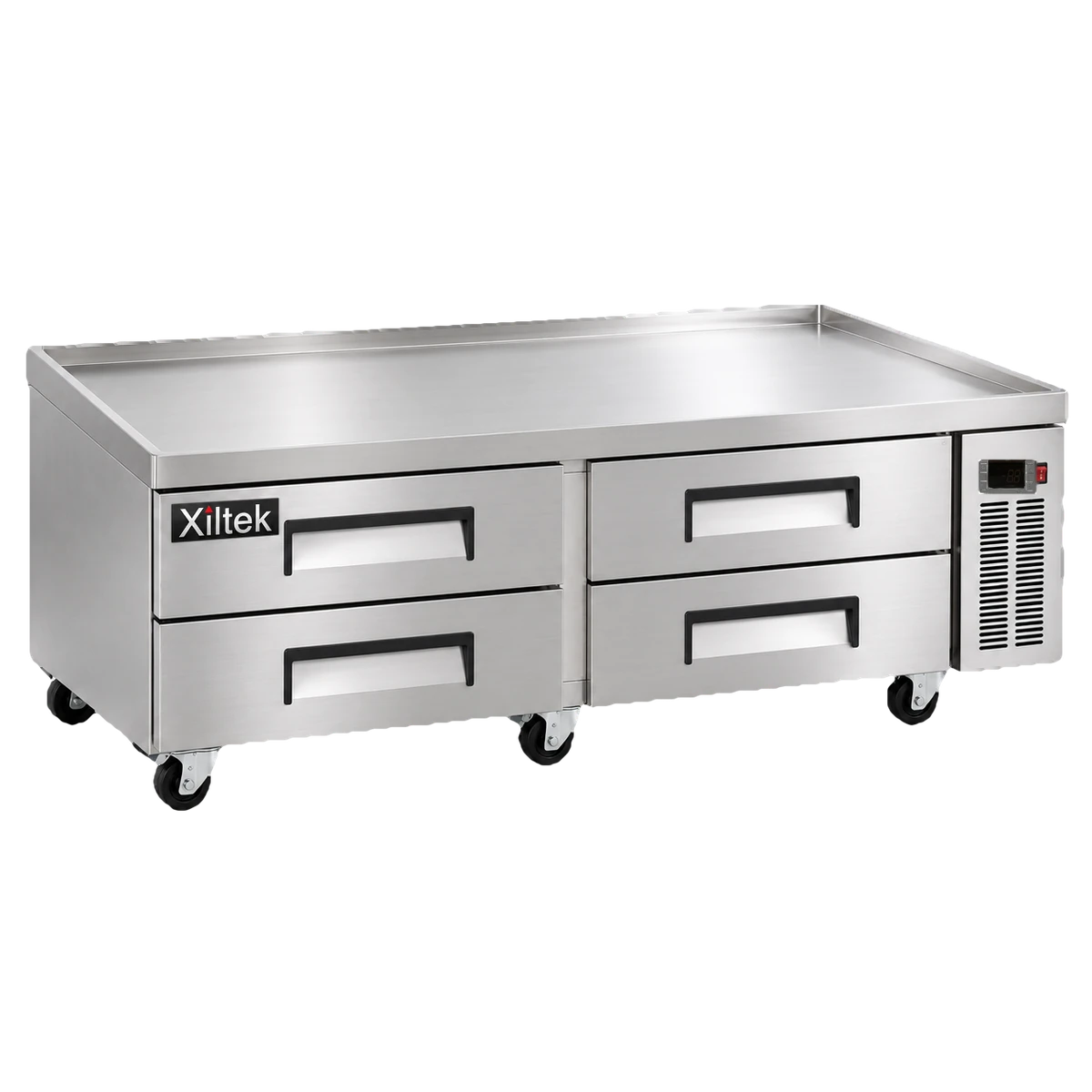

XCB-72-HC

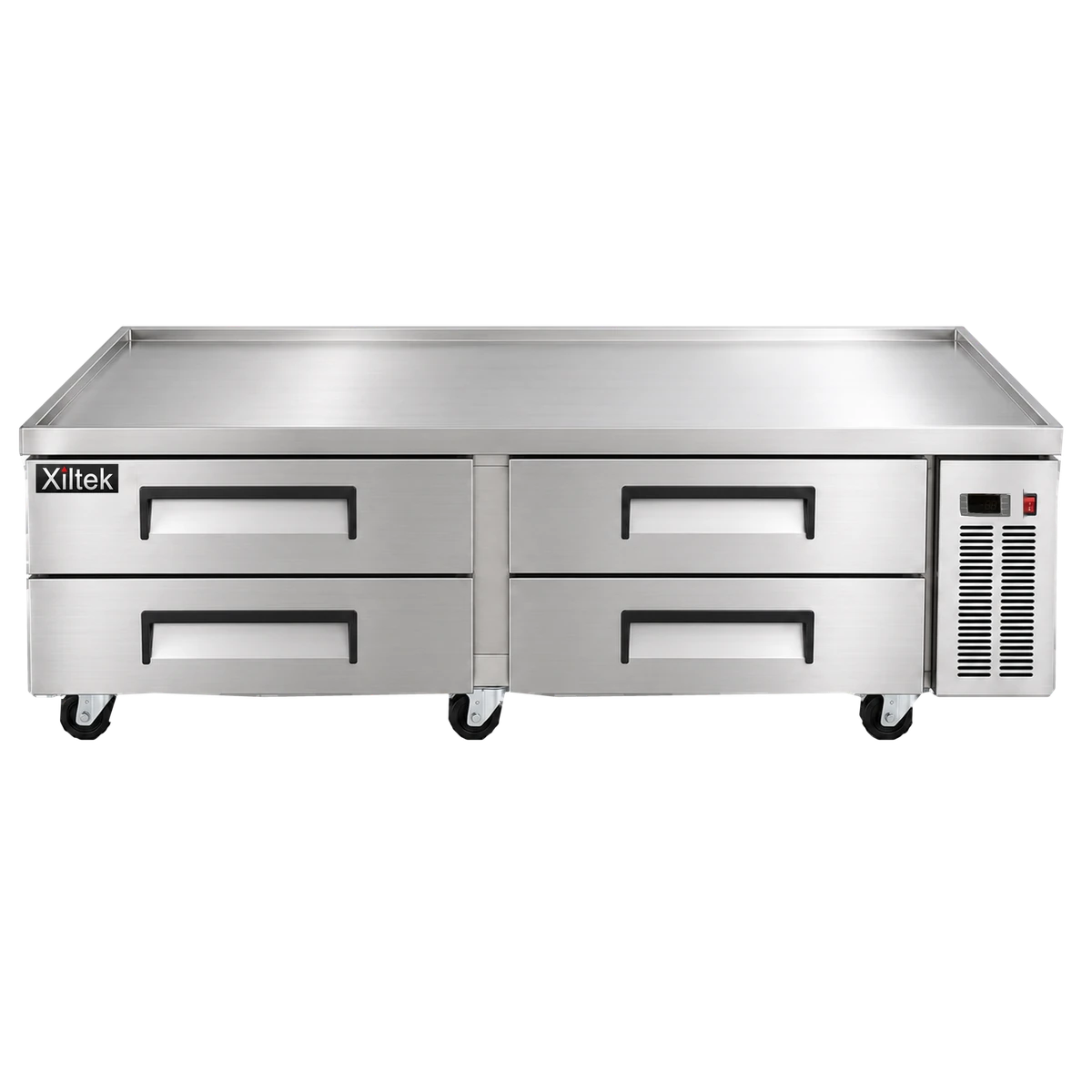

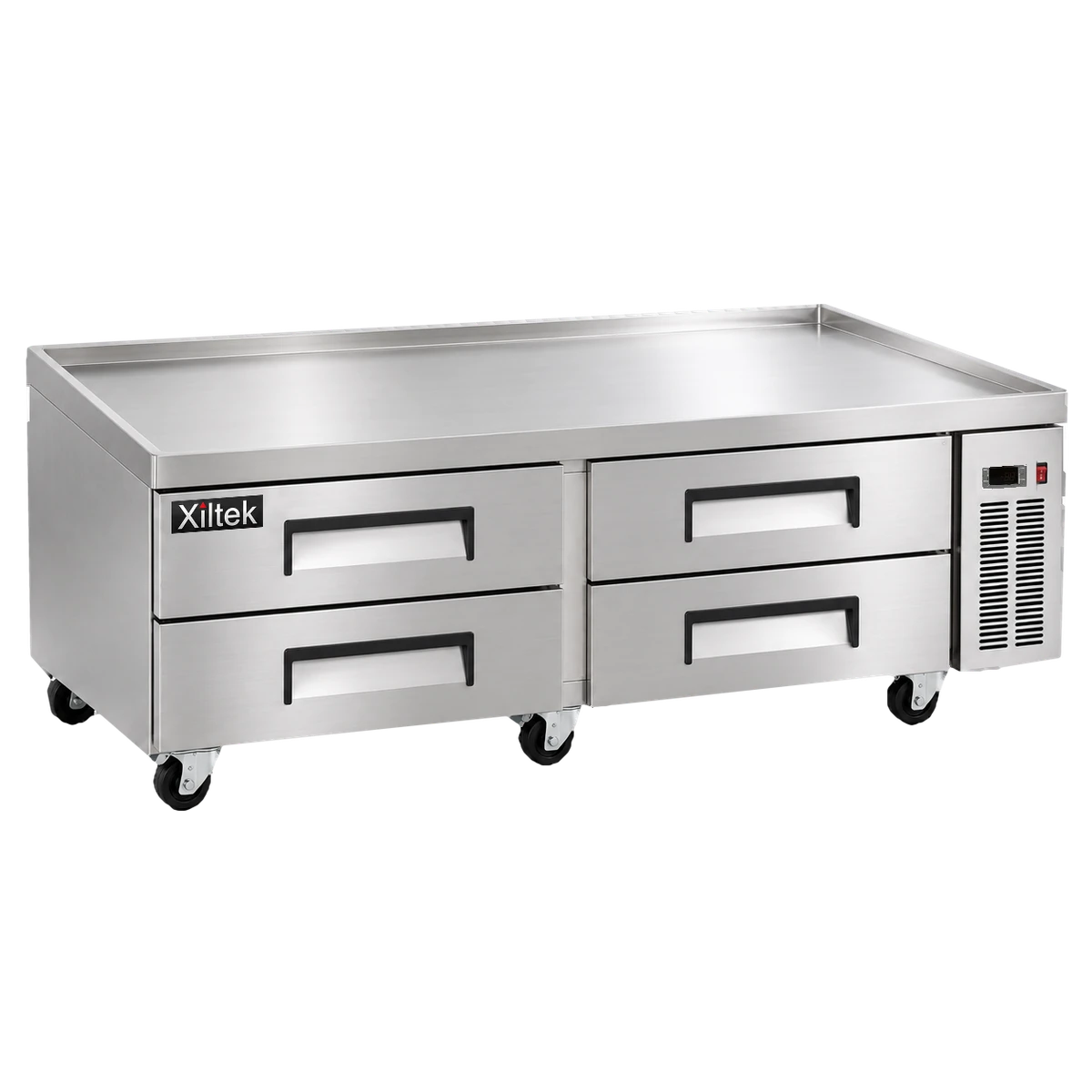

72" 4 Drawer Refrigerated Chef Base
Chef bases at Xiltek were designed with practicality in functionality and design at the core.
HOLDS33°F to 41°F
CAPACITY15 cu. ft.
POWER115V · 4.7A
Overview
Chef bases at Xiltek were designed with practicality in functionality and design at the core. Xiltek’s chef bases feature a stainless-steel interior and exterior to retain its attractive finish. Standard heavy-duty casters and accessible condenser coils make it easy for cleaning as well as easy service access. Other features present in this unit include an electronic control system, drip resistant “V” edge to protect against spills, heavy duty pull handles, and more.

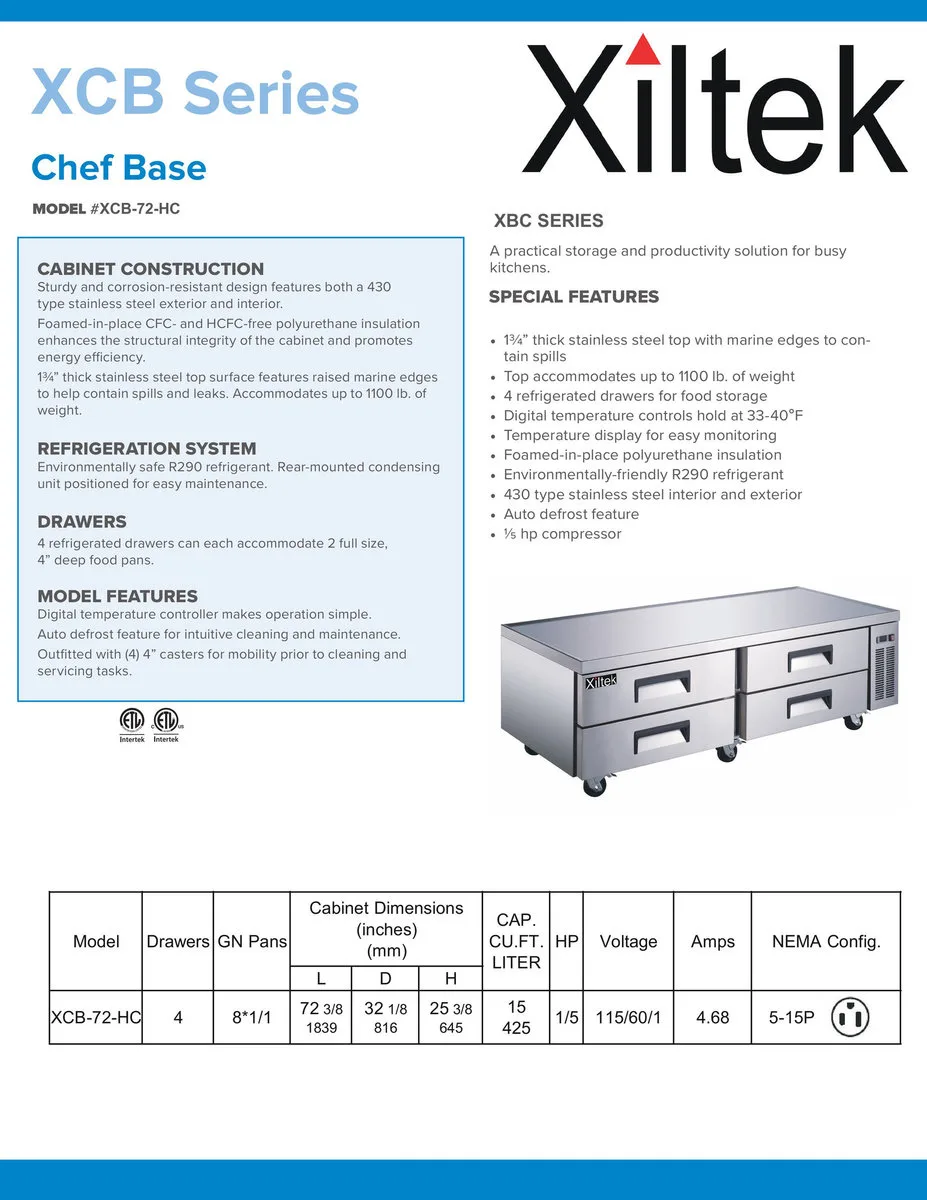

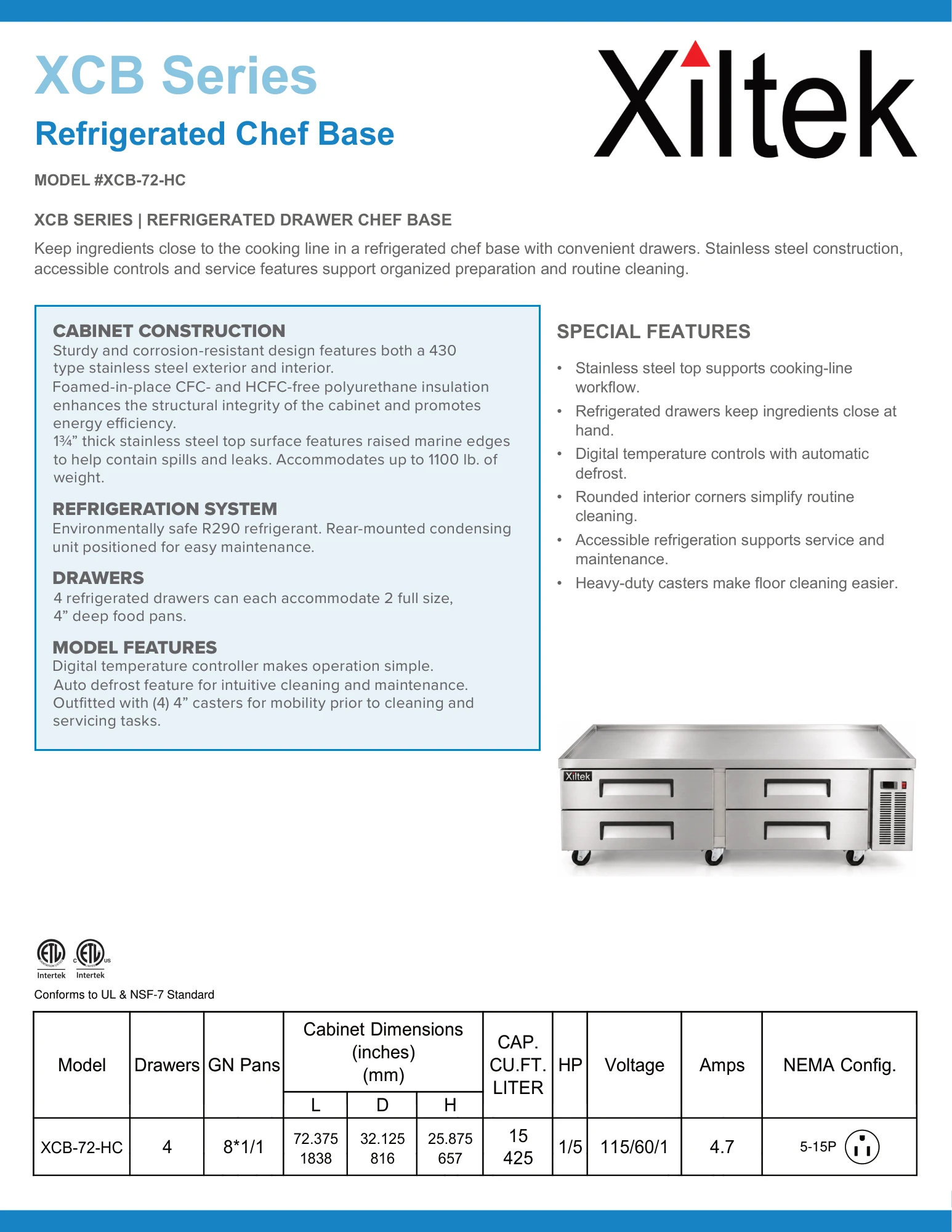

Specifications
- Model
- XCB-72-HC
- Drawers
- 4
- Steam Pans
- 8 Full Size
- Dimensions (L x D x H)
- 72.375" x 32.125" x 25.875"
- Capacity
- 15 cu. ft.
- HP
- 1/5
- Voltage
- 115/60/1
- Amps
- 4.7
- NEMA Config
- 5-15P
- Casters
- Pre-Installed
View all specificationsHide full specifications

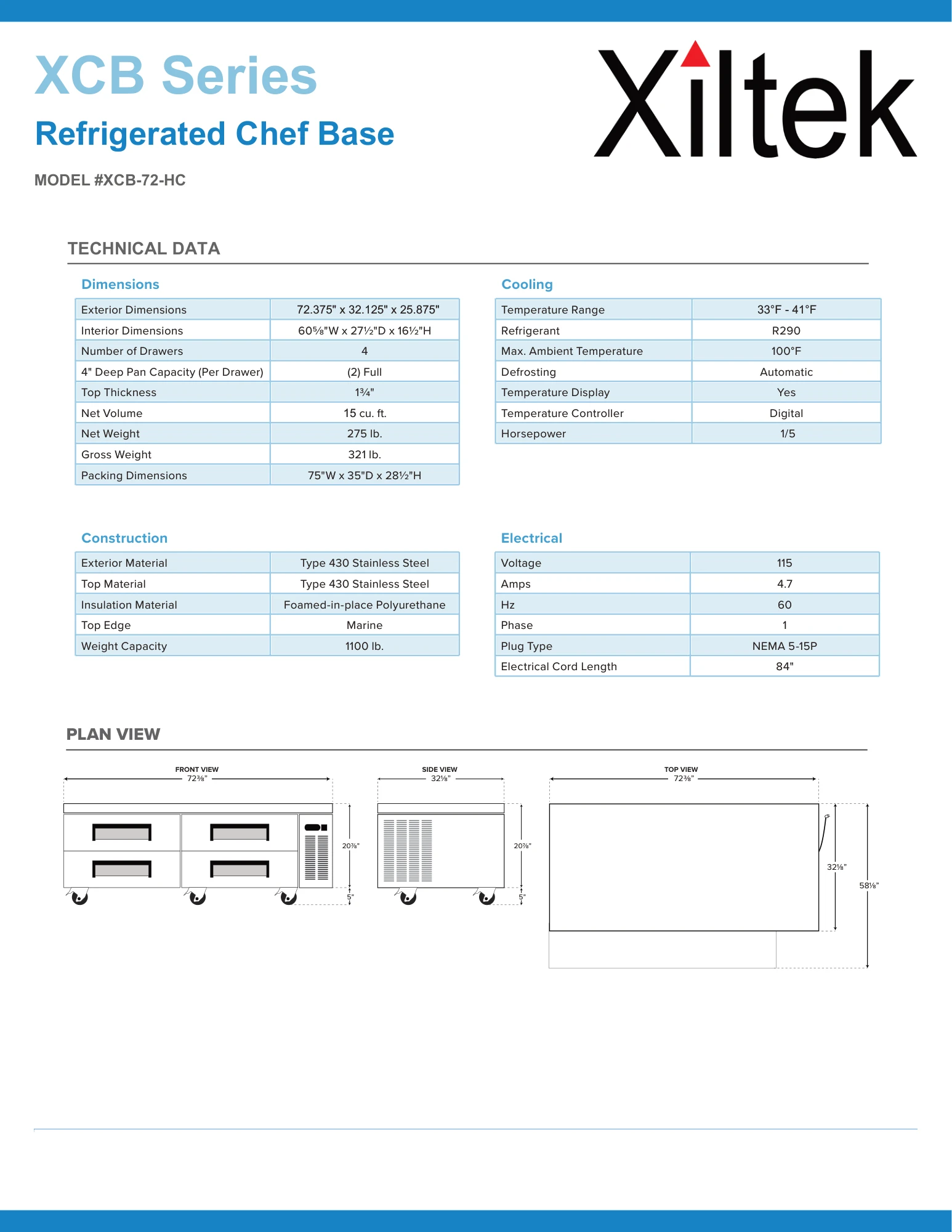

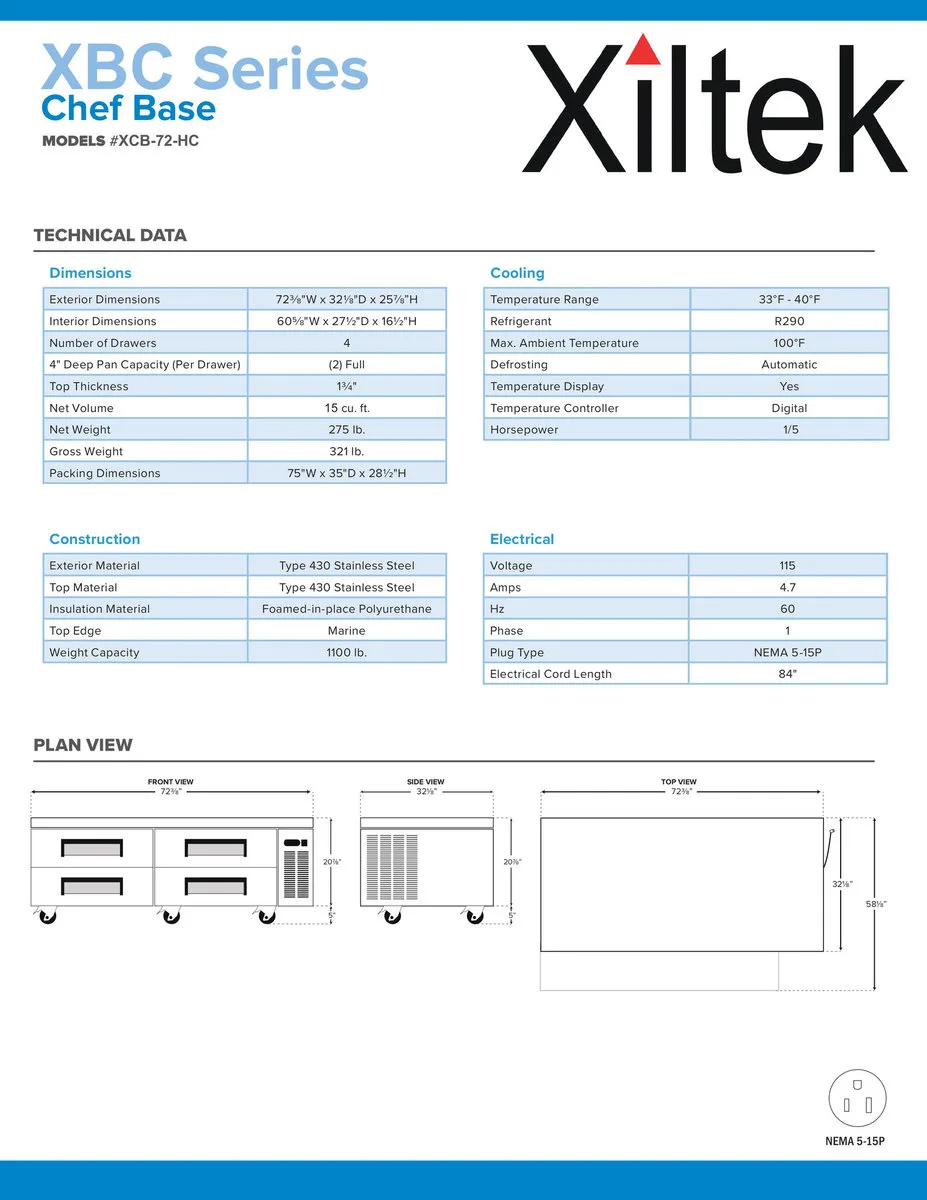

Dimensions
- Exterior Dimensions
- 723/8"W x 321/8"D x 257/8"H
- Interior Dimensions
- 605/8"W x 271/2"D x 161/2"H
- Net Volume
- 15 cu. ft.
- Net Weight
- 275 lb.
- Gross Weight
- 321 lb.
- Packing Dimensions
- 75"W x 35"D x 281/2"H
- Weight Capacity
- 1100 lb.
Construction
- Number of Drawers
- 4
- Top Thickness
- 13/4"
- Exterior Material
- Type 430 Stainless Steel
- Top Material
- Type 430 Stainless Steel
- Insulation Material
- Foamed-in-place Polyurethane
- Top Edge
- Marine
- Temperature Display
- Yes
Cooling
- Temperature Range
- 33°F to 41°F
- Refrigerant
- R290
- Max. Ambient Temperature
- 100°F
- Defrosting
- Automatic
- Temperature Controller
- Digital
- Horsepower
- 1/5
Electrical
- Voltage
- 115
- Amps
- 4.7
- Hz
- 60
- Phase
- 1
- Plug Type
- NEMA 5-15P
- Electrical Cord Length
- 84"
Features
- Stainless steel finishThe stainless steel interior and exterior keeps its attractive finish longer, with a matching aluminum-finished back.
- Rounded interior cornersThe cabinet interior has rounded corners, which makes the storage room easy to clean.
- One-piece stainless topThe cabinet top is one piece of heavy-duty, reinforced stainless steel. A drip-resistant “V” edge protects against spills.
- Refrigeration systemHolds 33°F to 41°F (0.6°C to 5°C) for the best in-food preservation.
- Electronic control systemAdjustable temperature set point and defrost frequency.

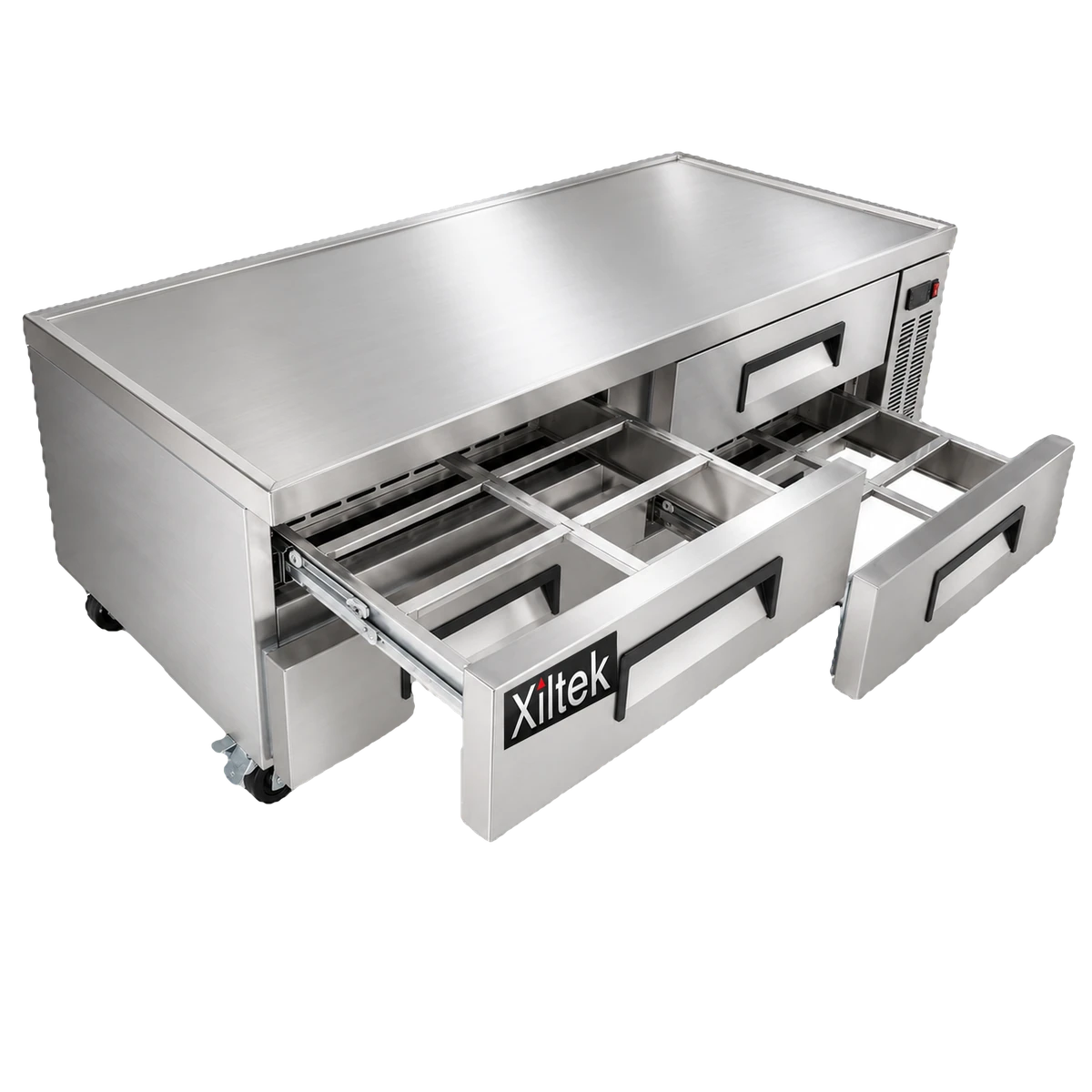

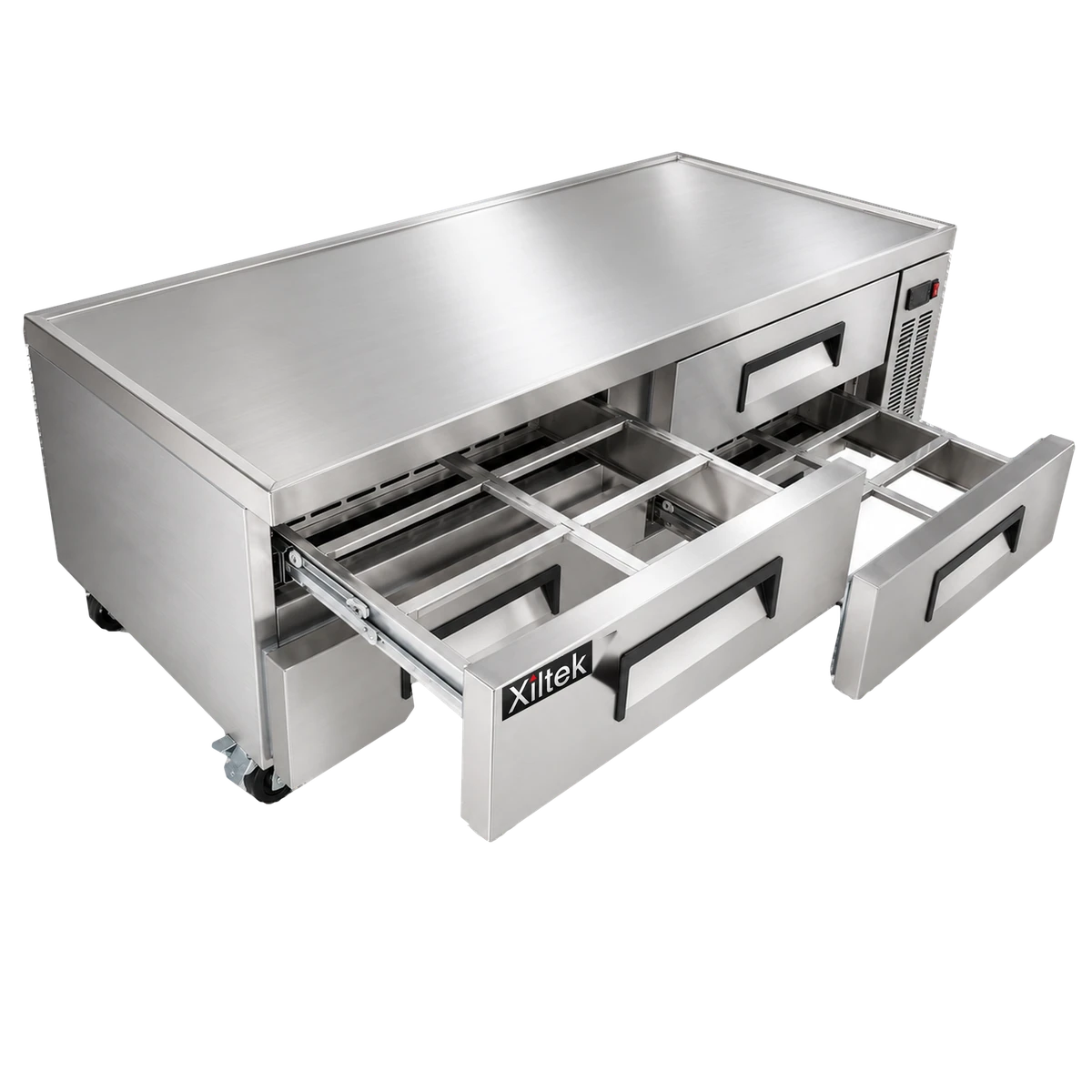

- DrawersA heavy-duty pull handle on each drawer, with tracks and rollers so drawers open and close easily with enduring quality.

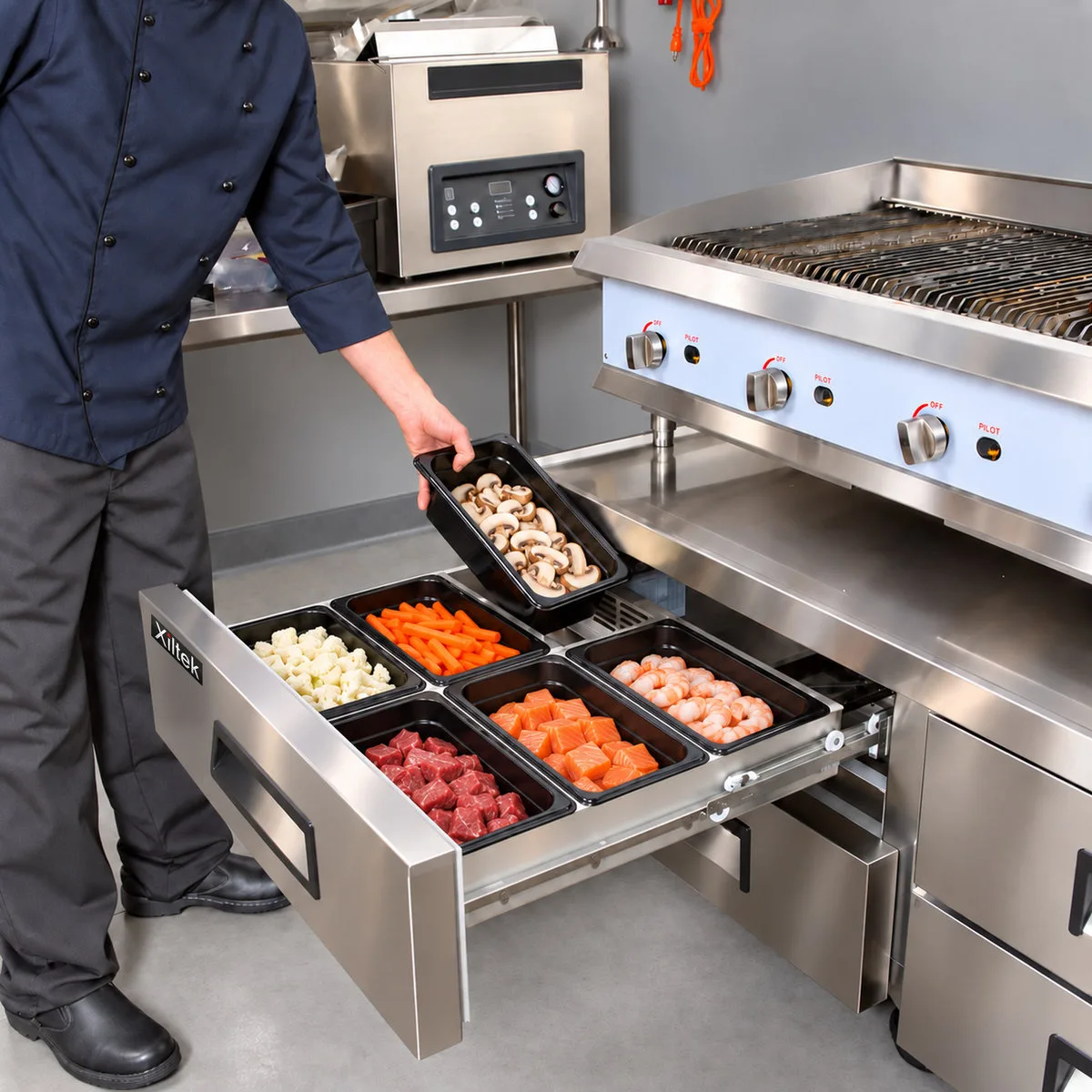

- Food pan capacityEach drawer fits two (2) full-size 12"L x 20"W x 4"D (305 mm x 508 mm x 102 mm) food pans.
- Heavy-duty castersStandard heavy-duty casters make it easy to move the unit and clean underneath it.

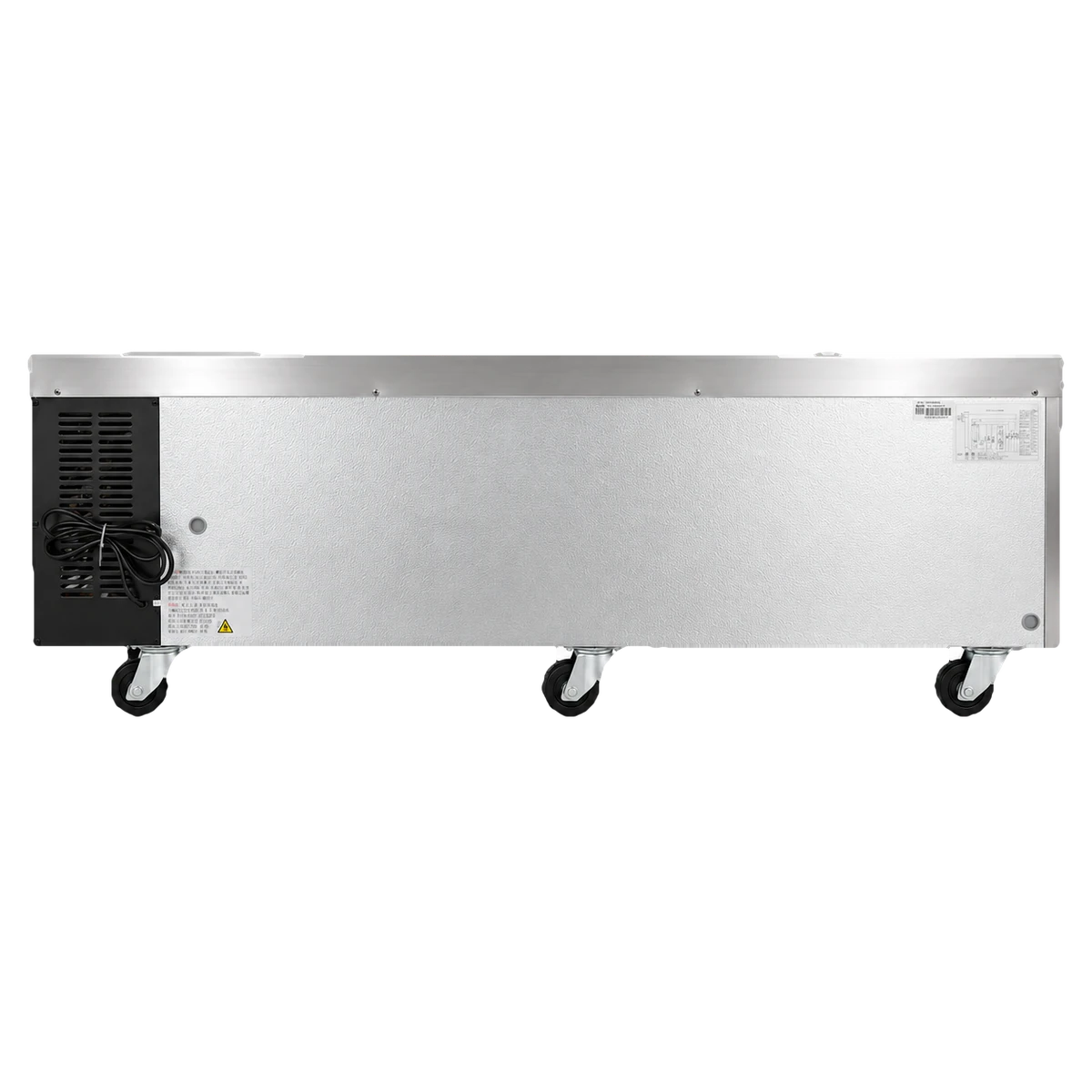

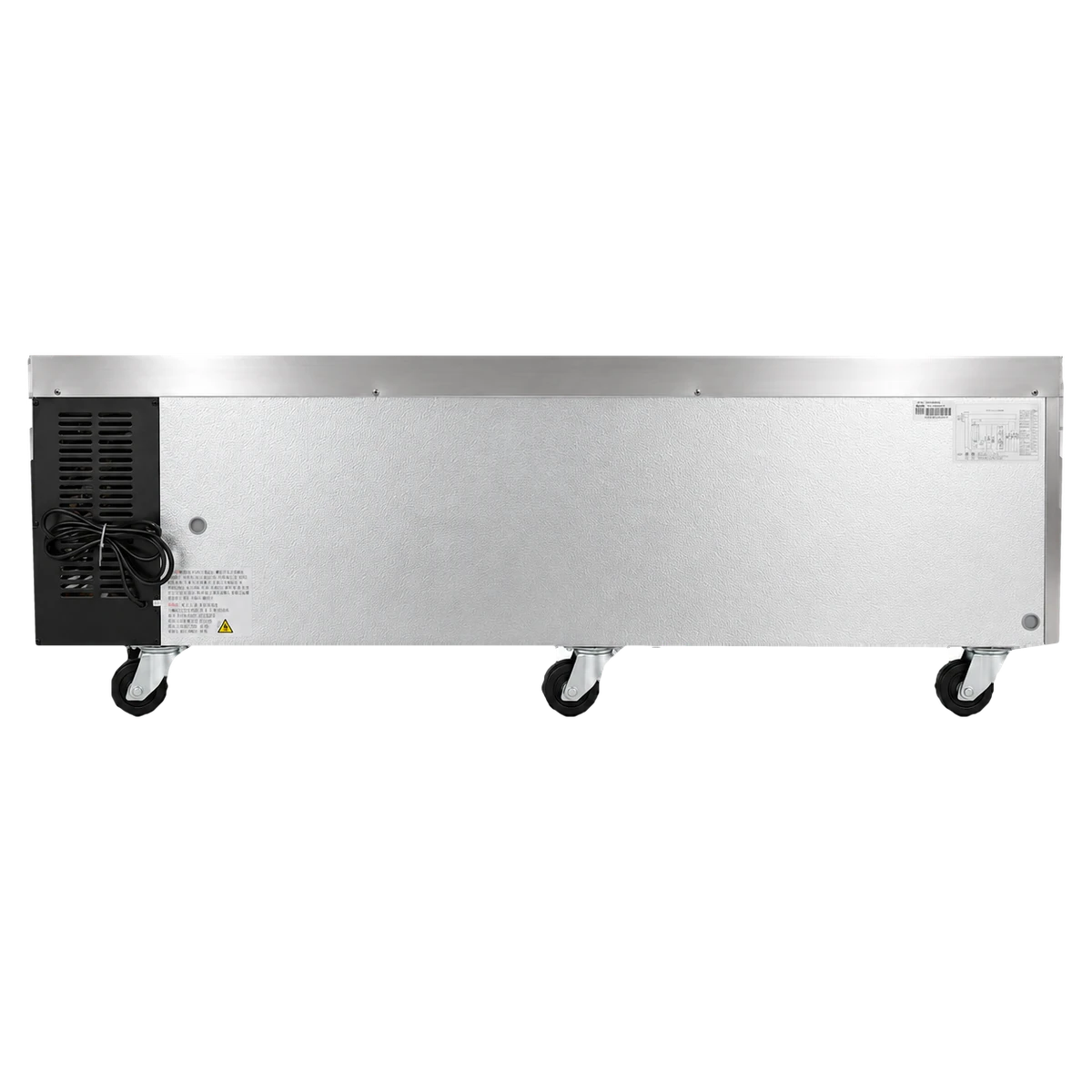

- Accessible condenser coilThe condenser coil is easy to reach for cleaning, and for easy service access.
- Simple installationNo plumbing is required, so installation is simple.
