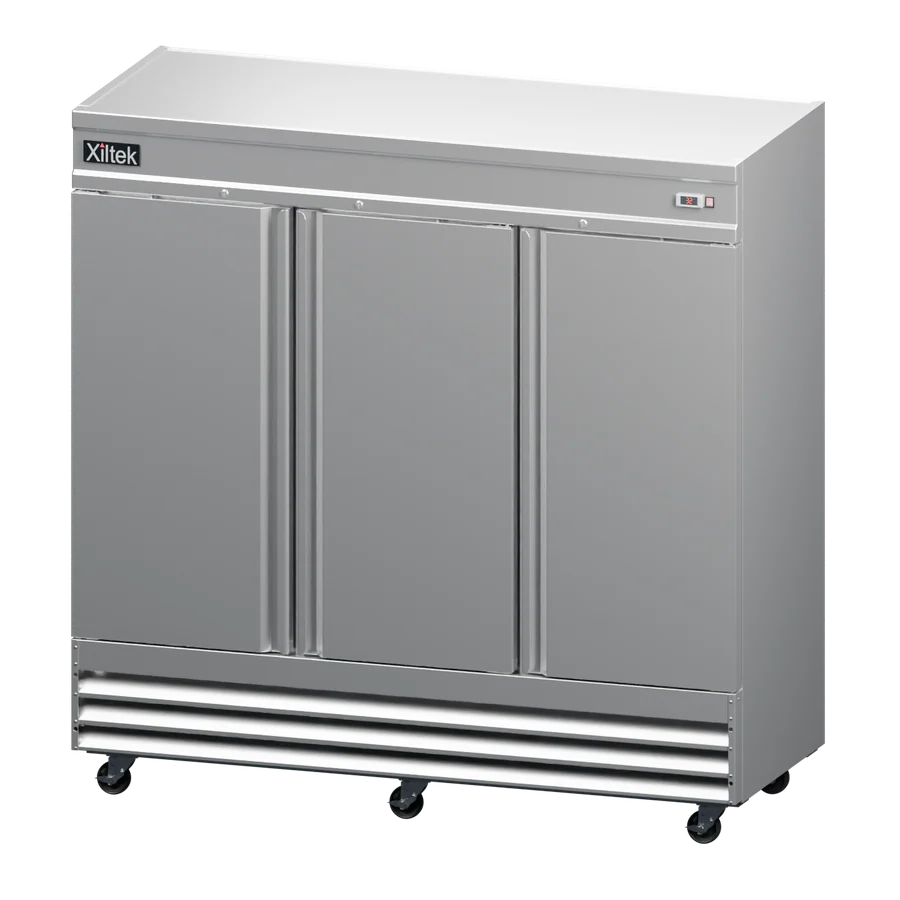

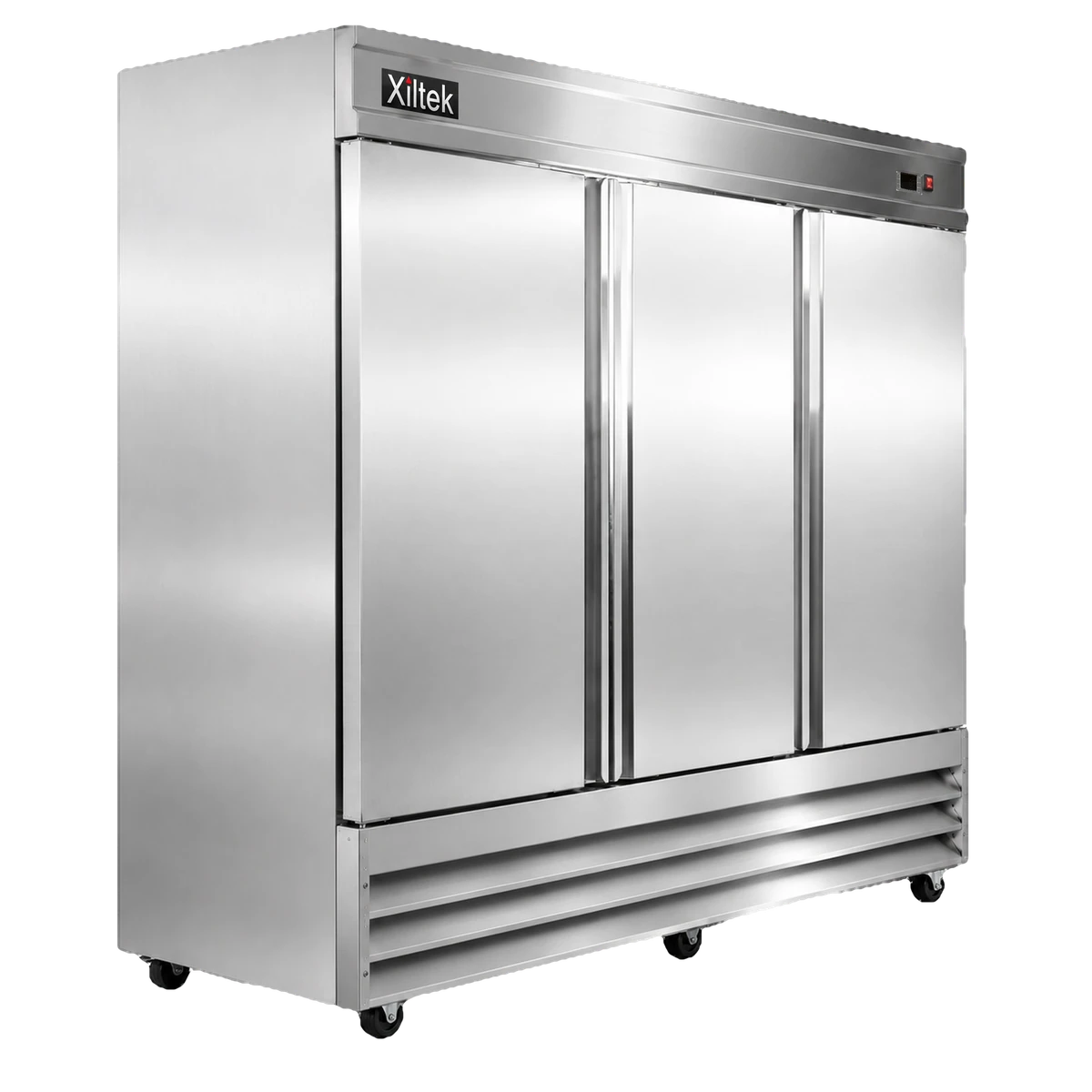

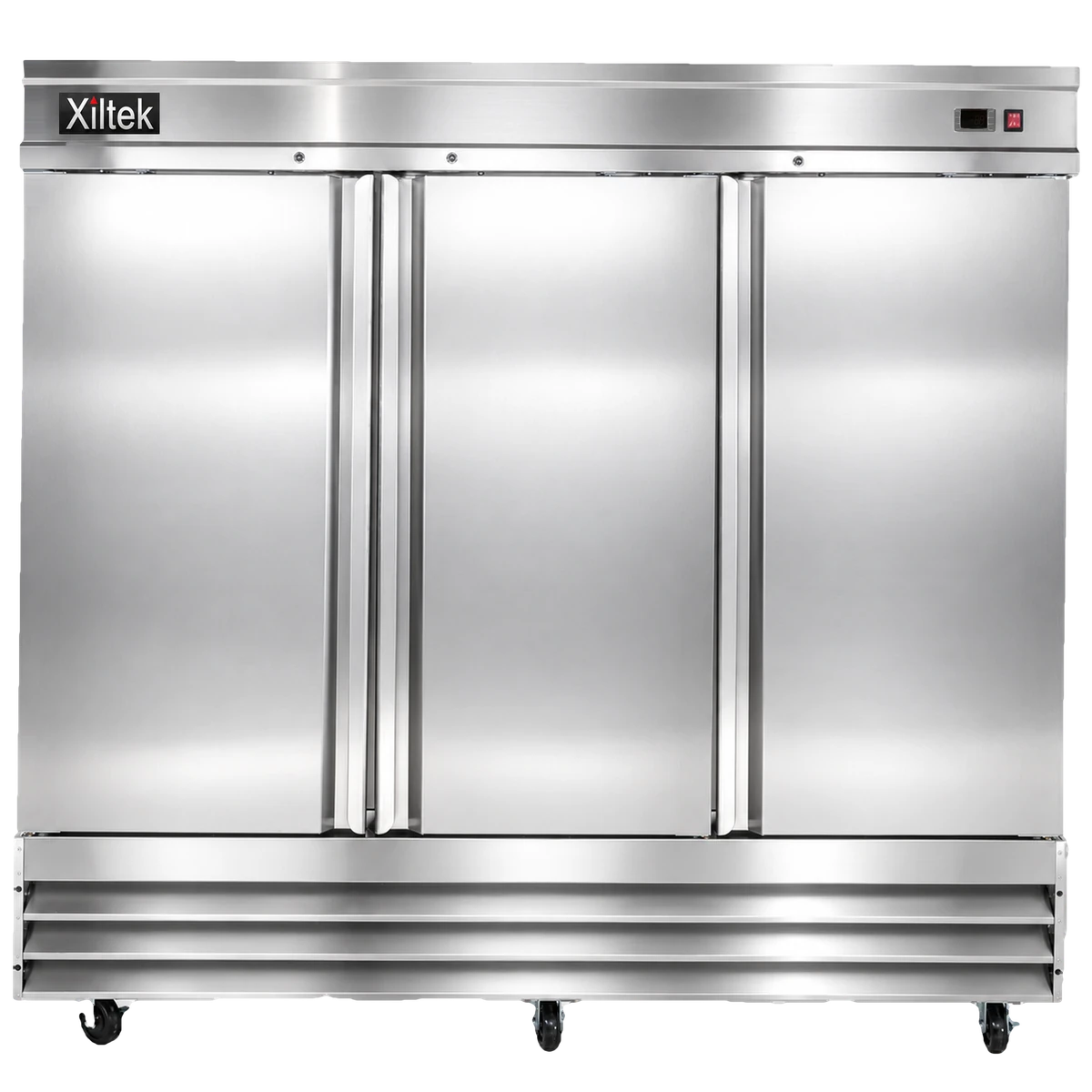

XF-3-HC

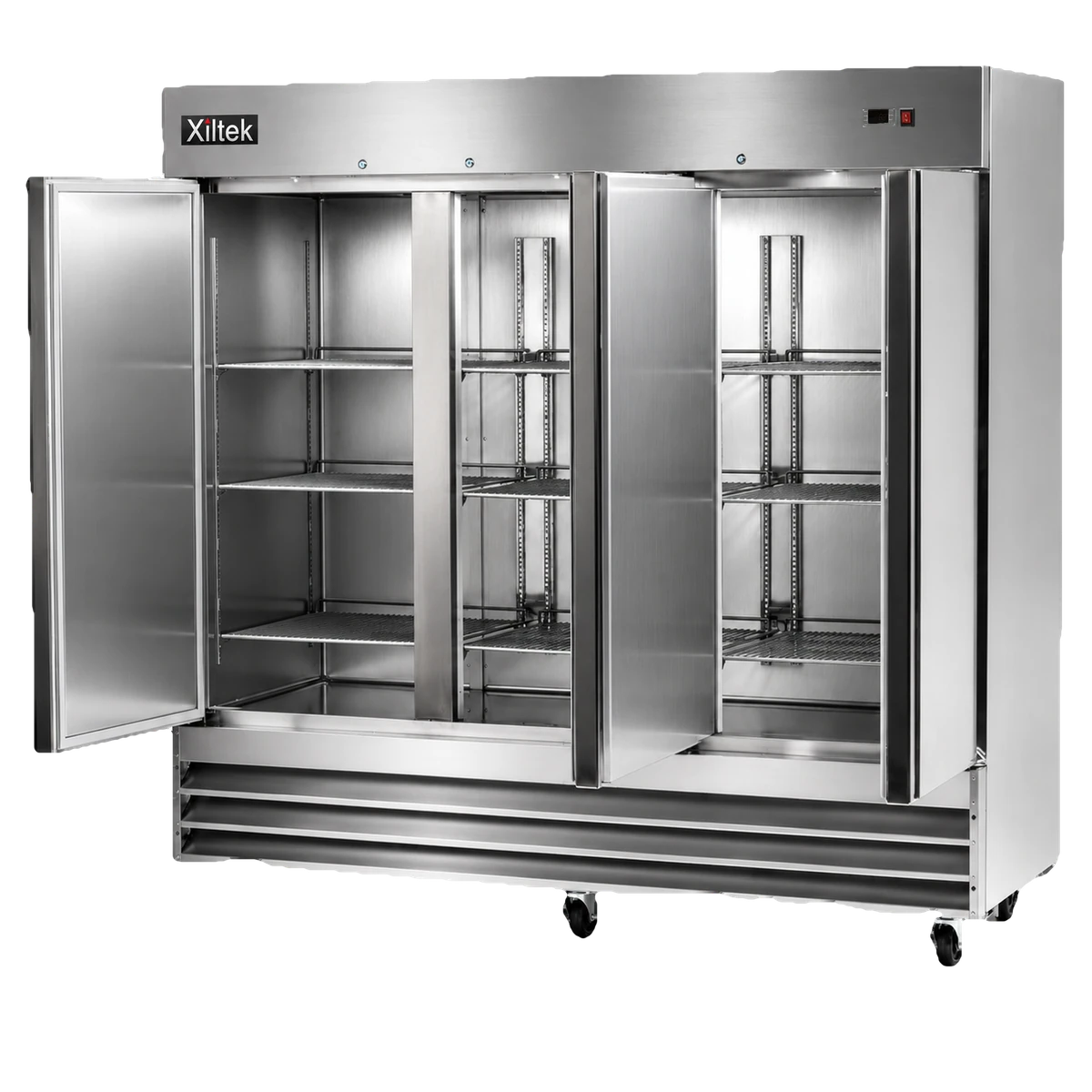

81" Three Door Reach‑In Freezer
Xiltek’s high quality yet affordable reach-in freezers are the perfect pair for any types of in-food preservation.
HOLDS-8°F to 0°F
CAPACITY72 cu. ft.
POWER115V · 12A
Overview
Xiltek’s high quality yet affordable reach-in freezers are the perfect pair for any types of in-food preservation. With an R290 hydrocarbon natural refrigeration system efficiently holding temperatures from -8°F to 0°F (-22.2°C to -17.8°C), it’ll keep any food items fresh for usage. Made of an entirely stainless-steel interior and exterior, the Xiltek reach-in freezer retains its attractive finish longer than typical commercial refrigerators. Other features present in the XF lineup include an electronic control system,adjustable heavy-duty epoxy-coated shelves, standard heavy-duty casters and more.
Specifications
- Model
- XF-3-HC
- Doors
- 3
- Shelves
- 9
- Dimensions (L x D x H)
- 80.9" x 32.25" x 82.25"
- Capacity
- 72 cu. ft.
- HP
- 1.25 HP
- Voltage
- 115/60/1
- Amps
- 12
- NEMA Config
- 5-20P
- Casters
- Pre-Installed
View all specificationsHide full specifications

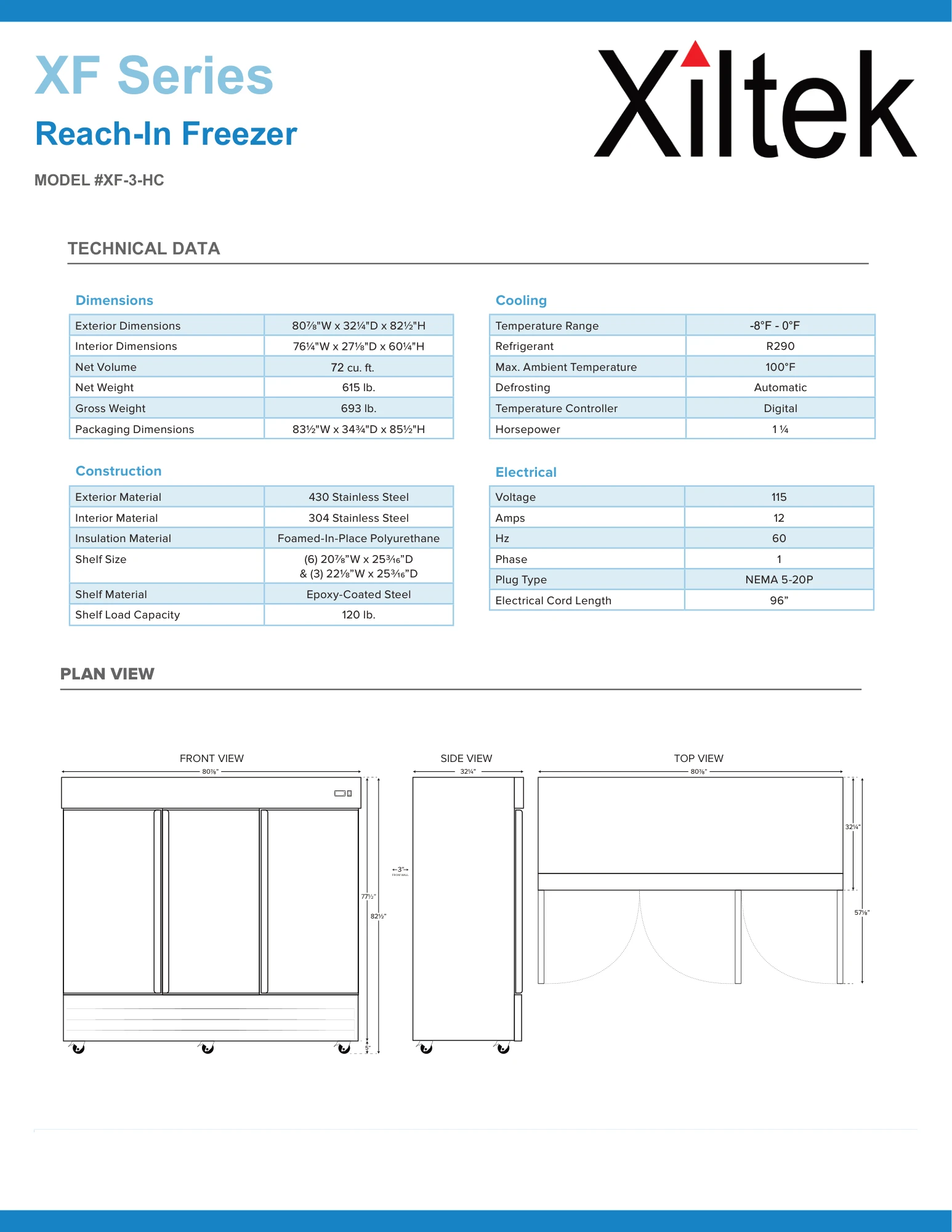

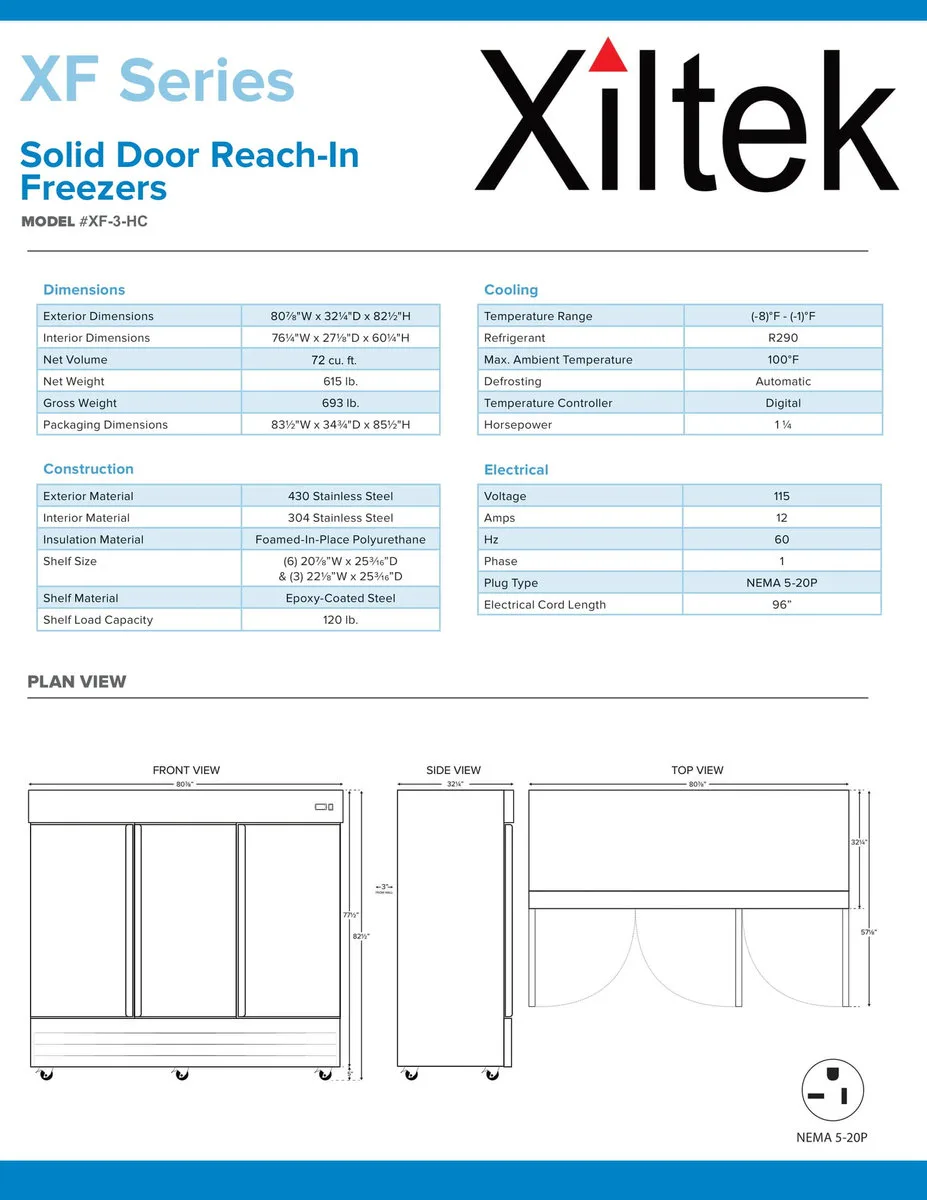

Dimensions
- Exterior Dimensions
- 80.9"W x 32.25"D x 82.25"H
- Net Volume
- 72 cu. ft.
- Net Weight
- 615 lb.
- Gross Weight
- 693 lb.
- Packaging Dimensions
- 83½"W x 34¾"D x 85½"H
Construction
- Exterior Material
- 430 Stainless Steel
- Interior Material
- 304 Stainless Steel
- Insulation Material
- Foamed-In-Place Polyurethane
- Shelf Material
- Epoxy-Coated Steel
- Shelf Load Capacity
- 120 lb.
Cooling
- Temperature Range
- -8°F to 0°F
- Refrigerant
- R290
- Max. Ambient Temperature
- 100°F
- Defrosting
- Automatic
- Temperature Controller
- Digital
- Horsepower
- 1 ¼
Electrical
- Voltage
- 115
- Amps
- 12
- Hz
- 60
- Phase
- 1
- Plug Type
- NEMA 5-20P
- Electrical Cord Length
- 96"
Features
- Heavy-duty pull handlesEach door has two spring hinges, which makes the door self-closing with enduring quality.
- Refrigeration systemHolds -8°F to 0°F (-22.2°C to -17.8°C) for the best in-food preservation.
- Electronic control systemAdjustable temperature set point and defrost frequency, with error codes to diagnose service issues.

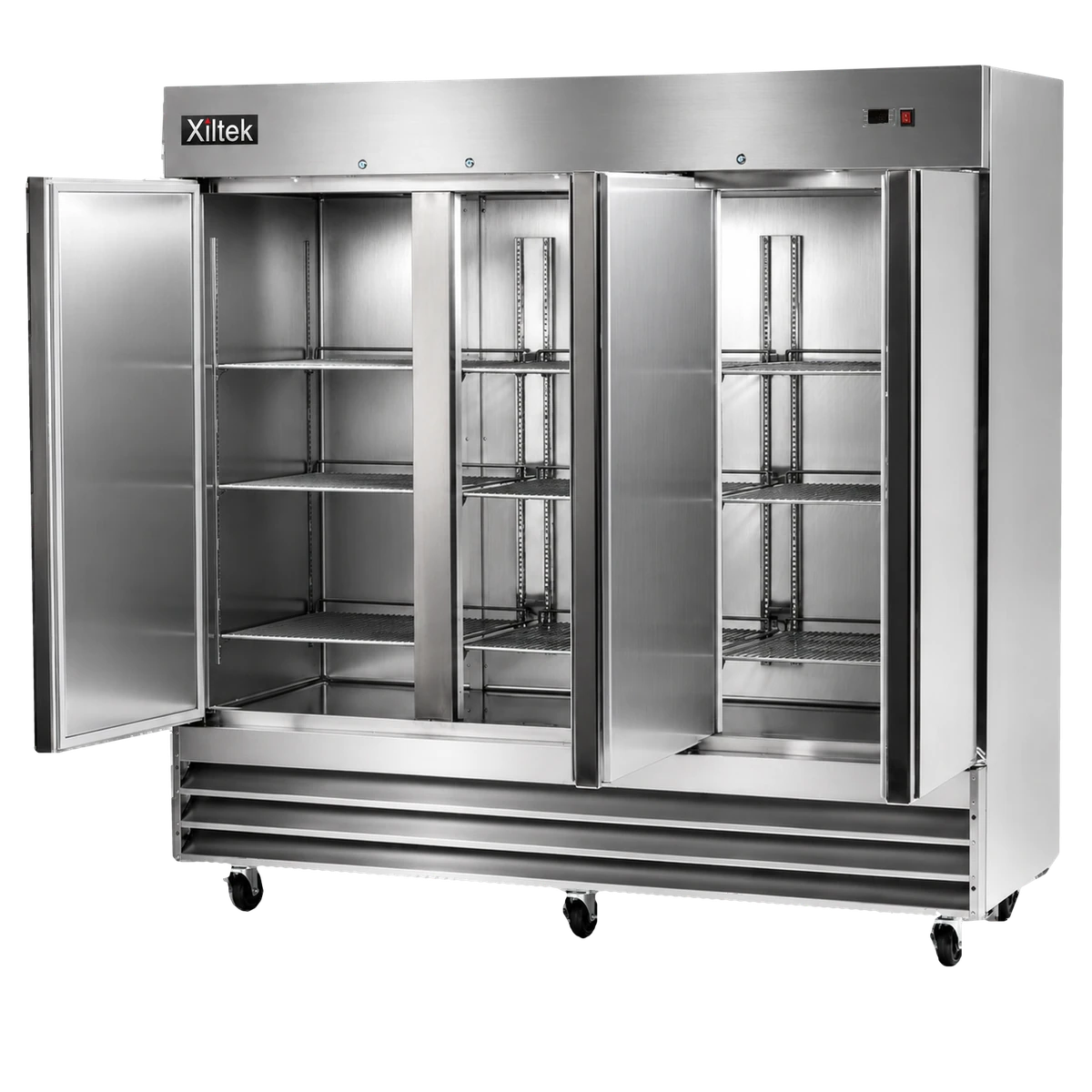

- Adjustable shelvesHeavy-duty, epoxy-coated shelves adjust to fit what you store.
- Heavy-duty castersStandard heavy-duty casters make it easy to move the unit and clean underneath it.
- Stainless steel finishThe stainless steel interior and exterior keeps its attractive finish longer.
- Rounded interior cornersThe cabinet interior has rounded corners, which makes the storage room easy to clean.
- No-stoop lower shelfThe lower shelf is positioned so you can reach it without stooping.
- Top storageThe top of the cabinet doubles as extra storage.
- Accessible condenser coilThe condenser coil is easy to reach for cleaning, and for easy service access.
- Simple installationNo plumbing is required, so installation is simple.
