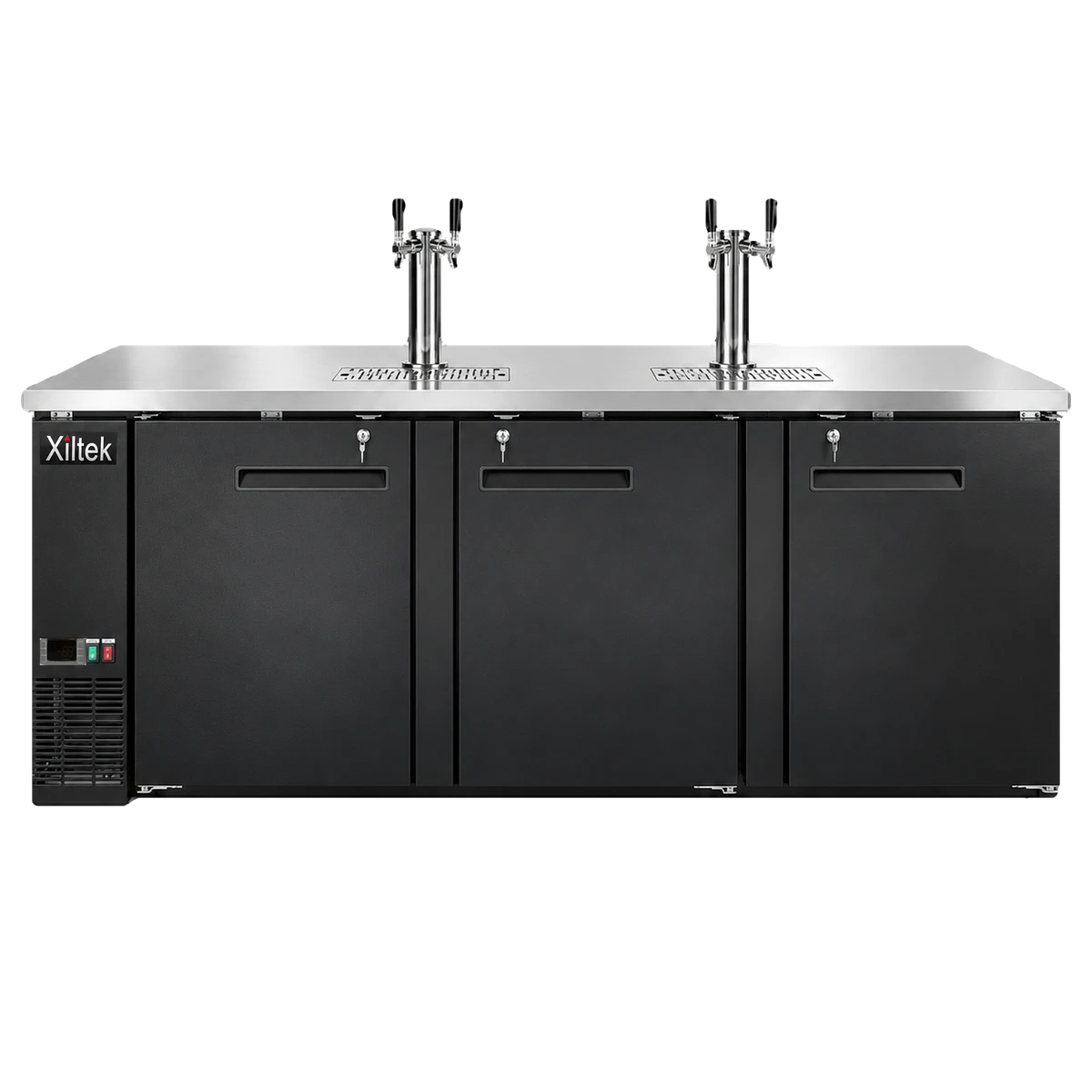

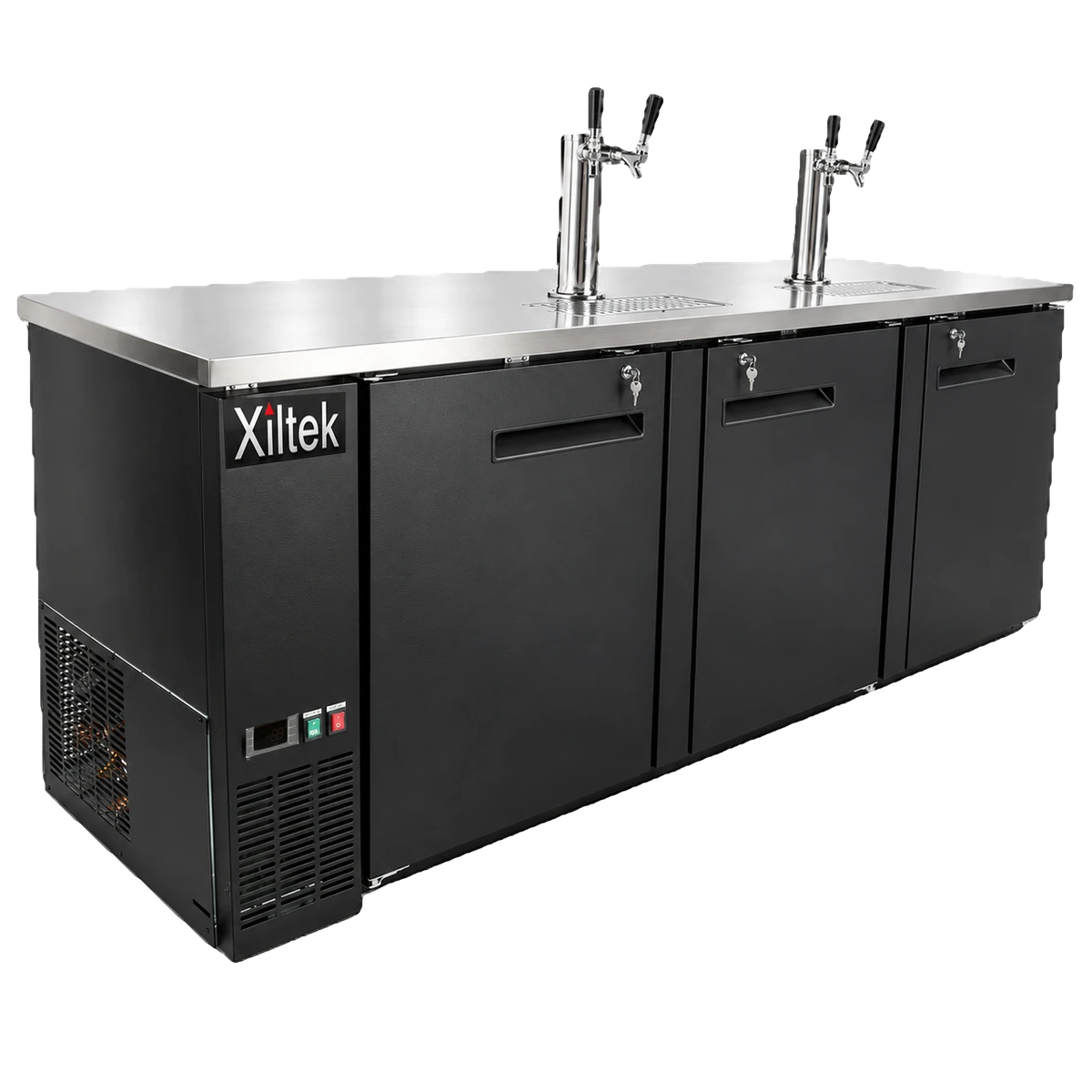

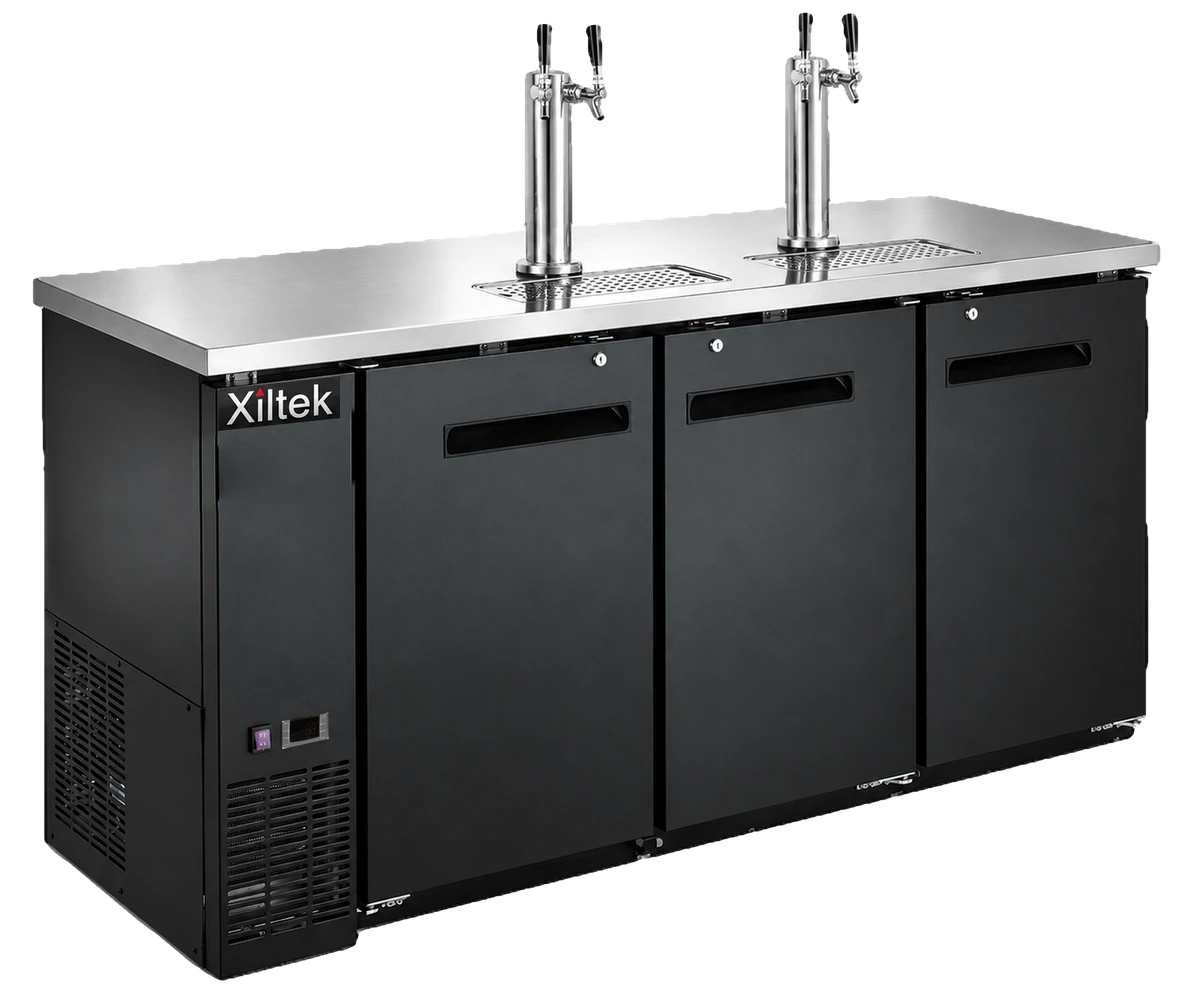

XDD-24-72-HC

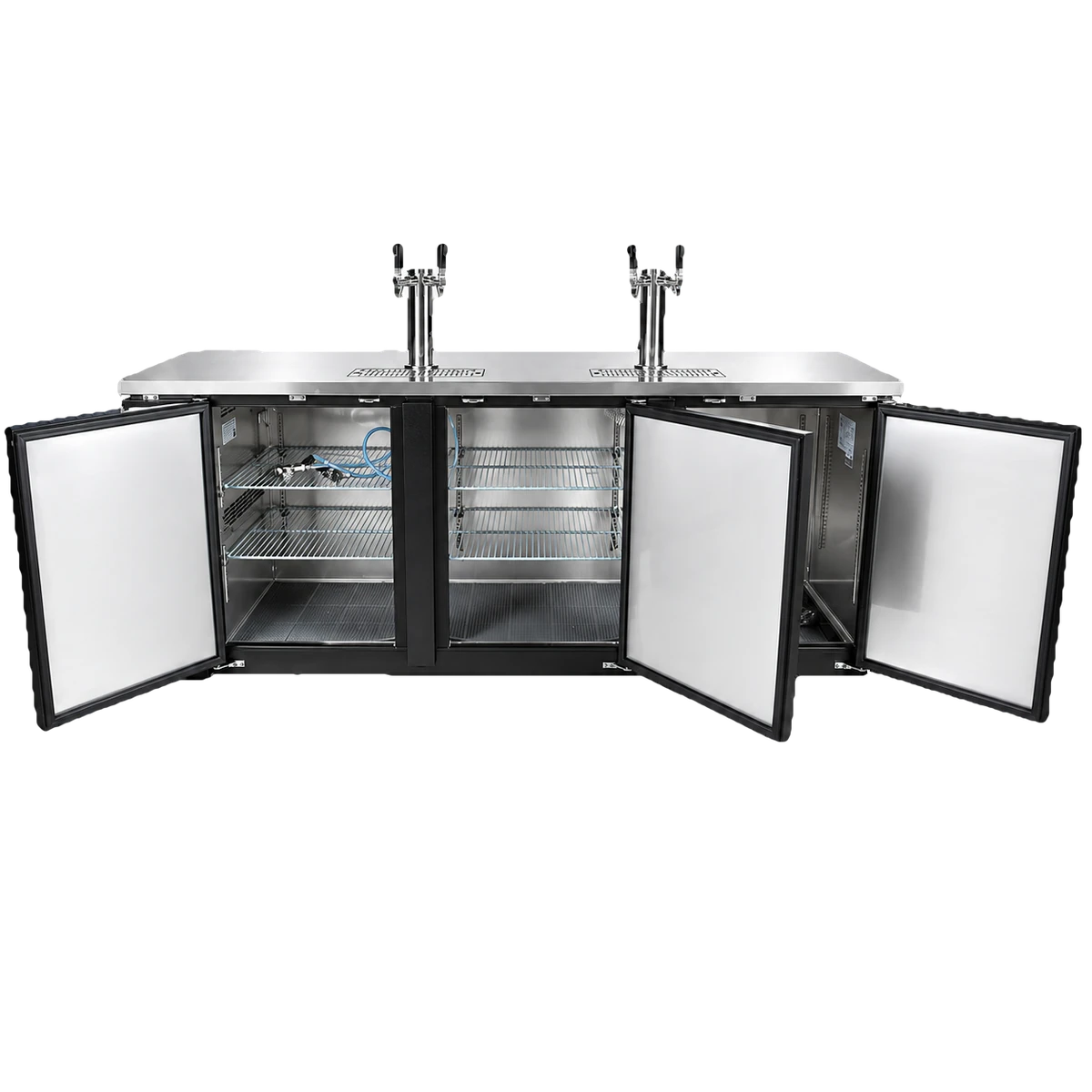

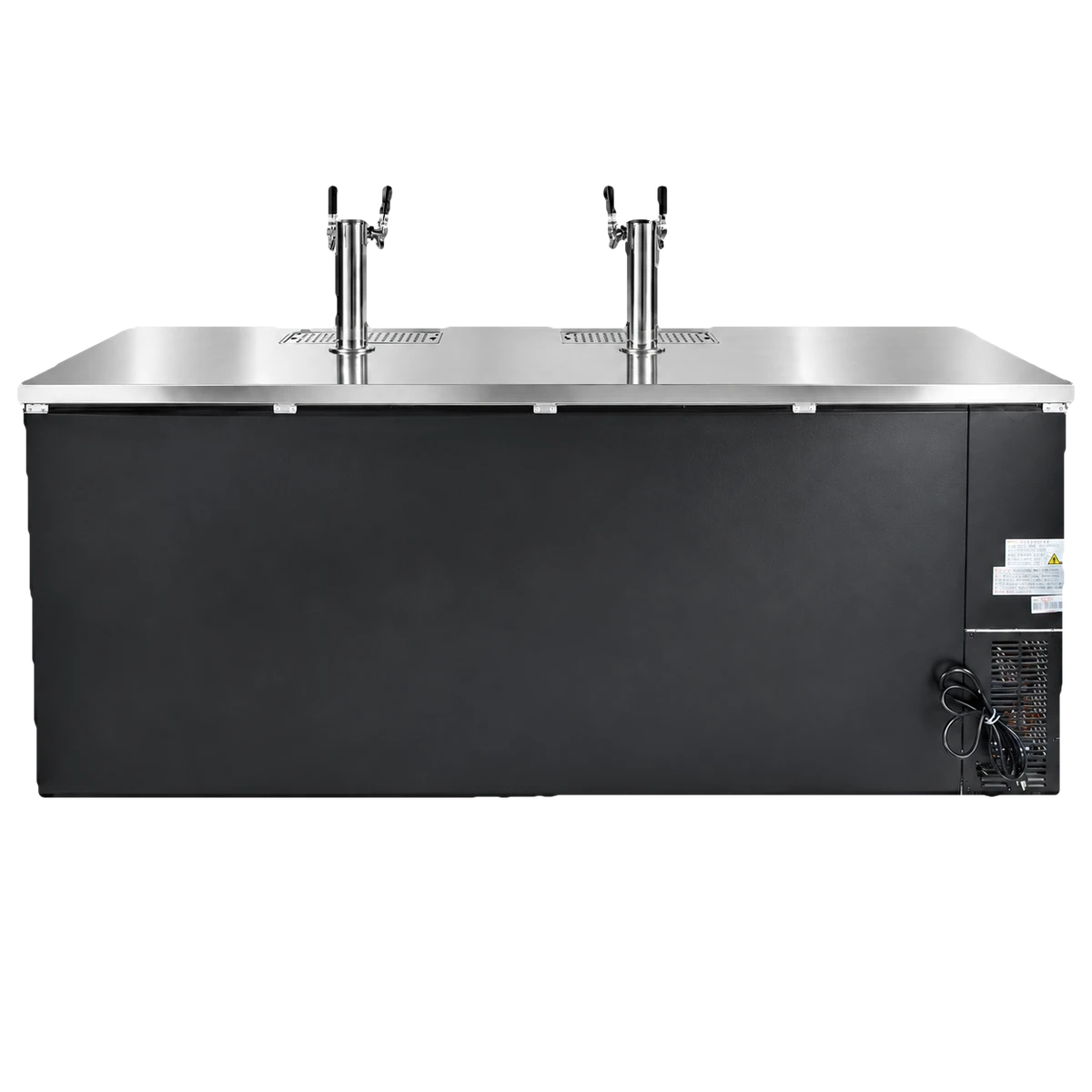

24" Depth 72" Beer Dispenser with (2) Double Tap
Your customers want draft beer, and you want convenience. To serve both, this beer dispenser is designed to simplify the tapping process with its (2) double tap towers and 4 couplers. Plus, it's built to withstand heavy use, featuring a stainless steel interior that won't degrade with the accidental spill or leak. With features like an R290 hydrocarbon natural refrigeration system efficiently holding any temperatures ranging from 33°F to 38°F (0.5°C to 3.3°C), an electronic control system, simple installation, and more.
HOLDS
33°F to 38°F
CAPACITY
3 (1/2) Barrels
POWER
115V · 4A

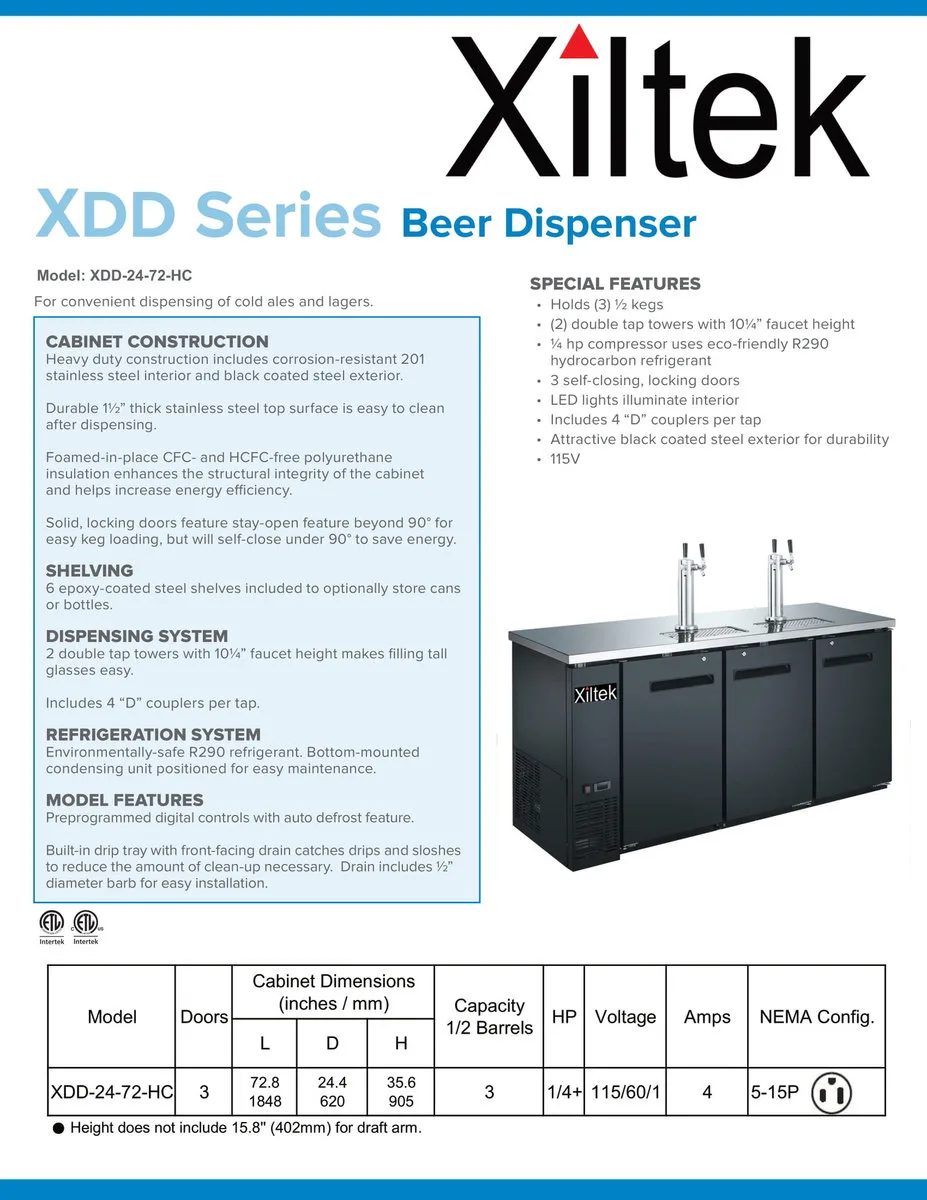

Specifications
- Model
- XDD-24-72-HC
- Doors
- 3
- Draft Arms (Double Tap)
- 2
- Dimensions (L x D x H)
- 72.8" x 24.4" x 35.6"
- Capacity
- 3 (1/2) Barrels
- HP
- 1/4+
- Voltage
- 115/60/1
- Amps
- 4
- NEMA Config
- 5-15P
- Casters
- Optional
Features
- CABINET CONSTRUCTION: Standard, cabinet exterior construction includes attractive, wear resistant vinyl on steel in black finish. Stainless exterior options available. Standard interior construction utilizes stainless steel walls, floor and ceiling.
- REFRIGERANT HYDRO-CARBON R290 which is environmentally friendly and more efficient than R134a/R404a refrigerant.
- Electrical Units wired at factory and ready for connection to a 115/60/1 phase, 15 amp dedicated outlet.
- Temperature: Oversized, factory balanced, refrigeration system holds 33°F to 38°F (0.5°C to 3.3°C)
- Great for packaged and bottled products.
- Standard LED light inside of the cabinet
- Easily accessible condenser coil for cleaning, and easy service access
- Designed to accommodate a variety of beer kegs
View all specificationsHide full specifications

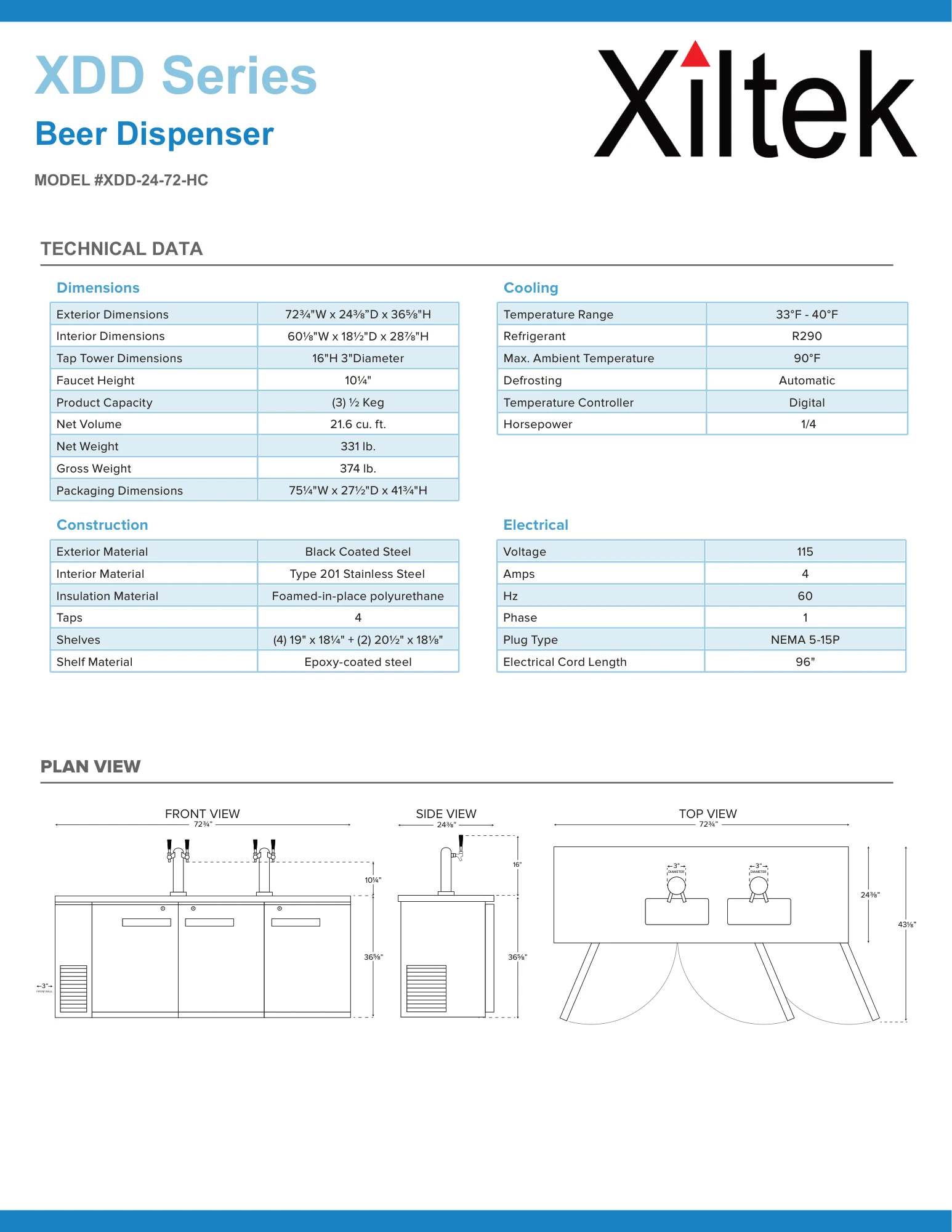

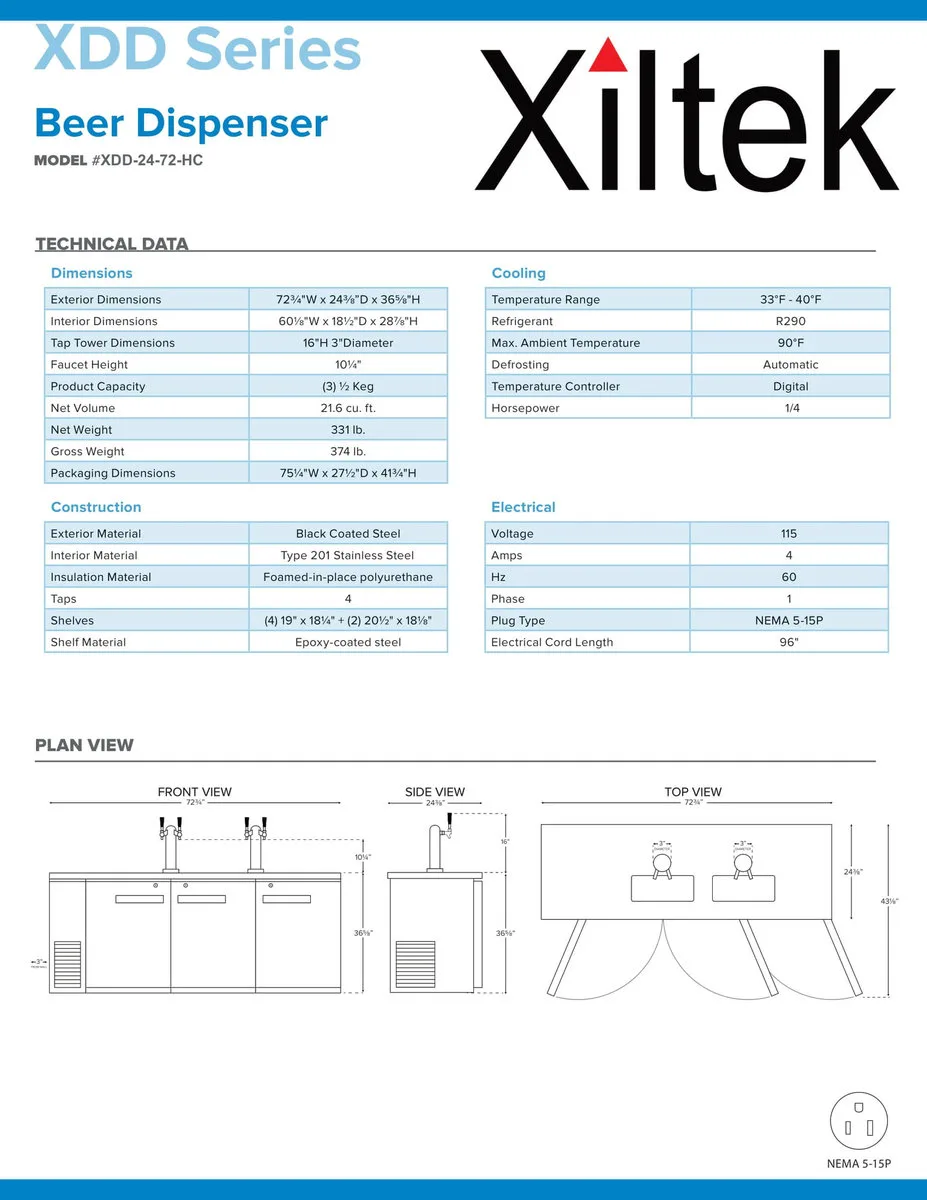

Dimensions
- Exterior Dimensions
- 72.8"W x 24.4"D x 35.6"H

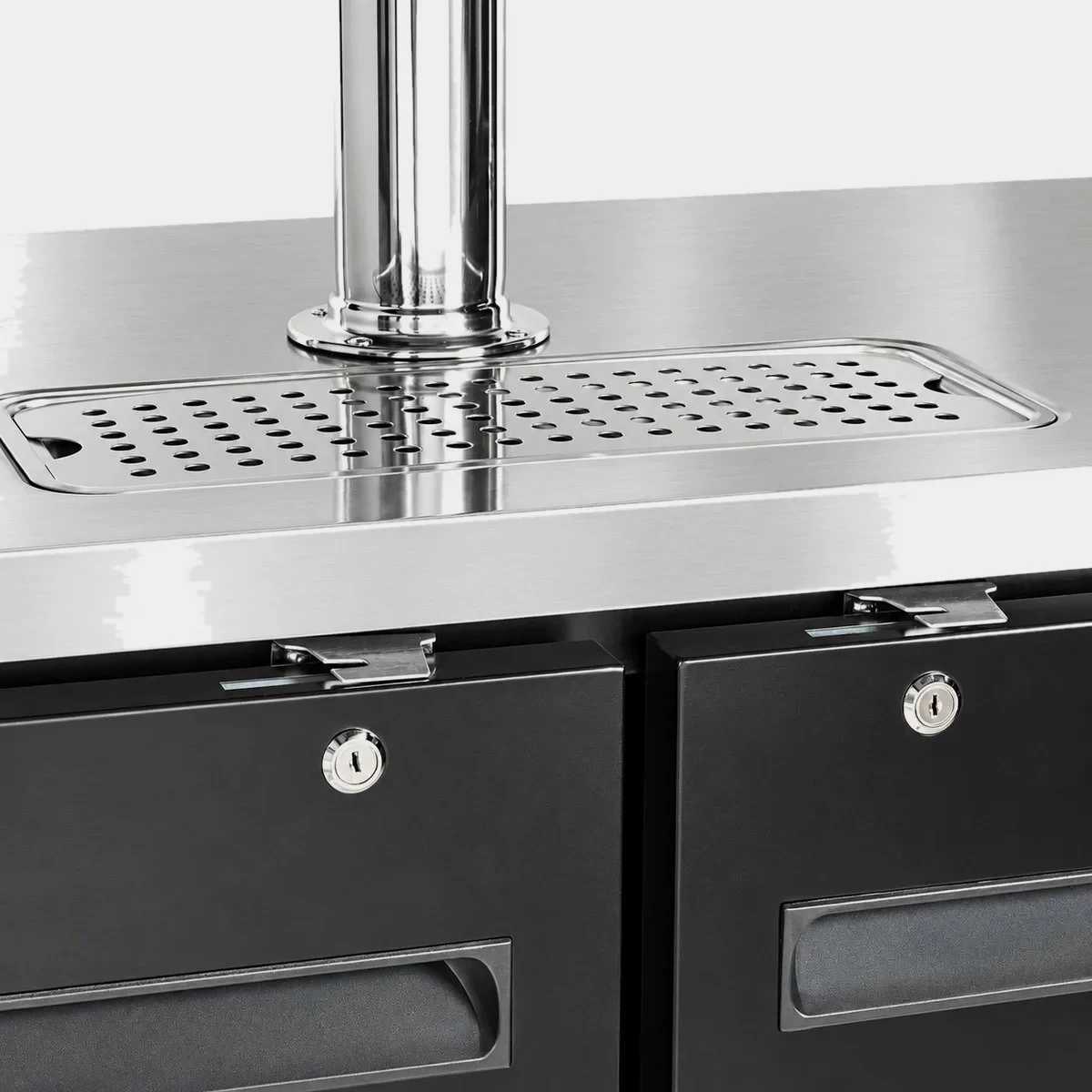

- Tap Tower Dimensions
- 16"H 3"Diameter
- Net Volume
- 21.6 cu. ft.
- Net Weight
- 331 lb.
- Gross Weight
- 374 lb.
Construction
- Exterior Material
- Black Coated Steel
- Interior Material
- Type 201 Stainless Steel
- Insulation Material
- Foamed-in-place polyurethane
- Taps
- 4

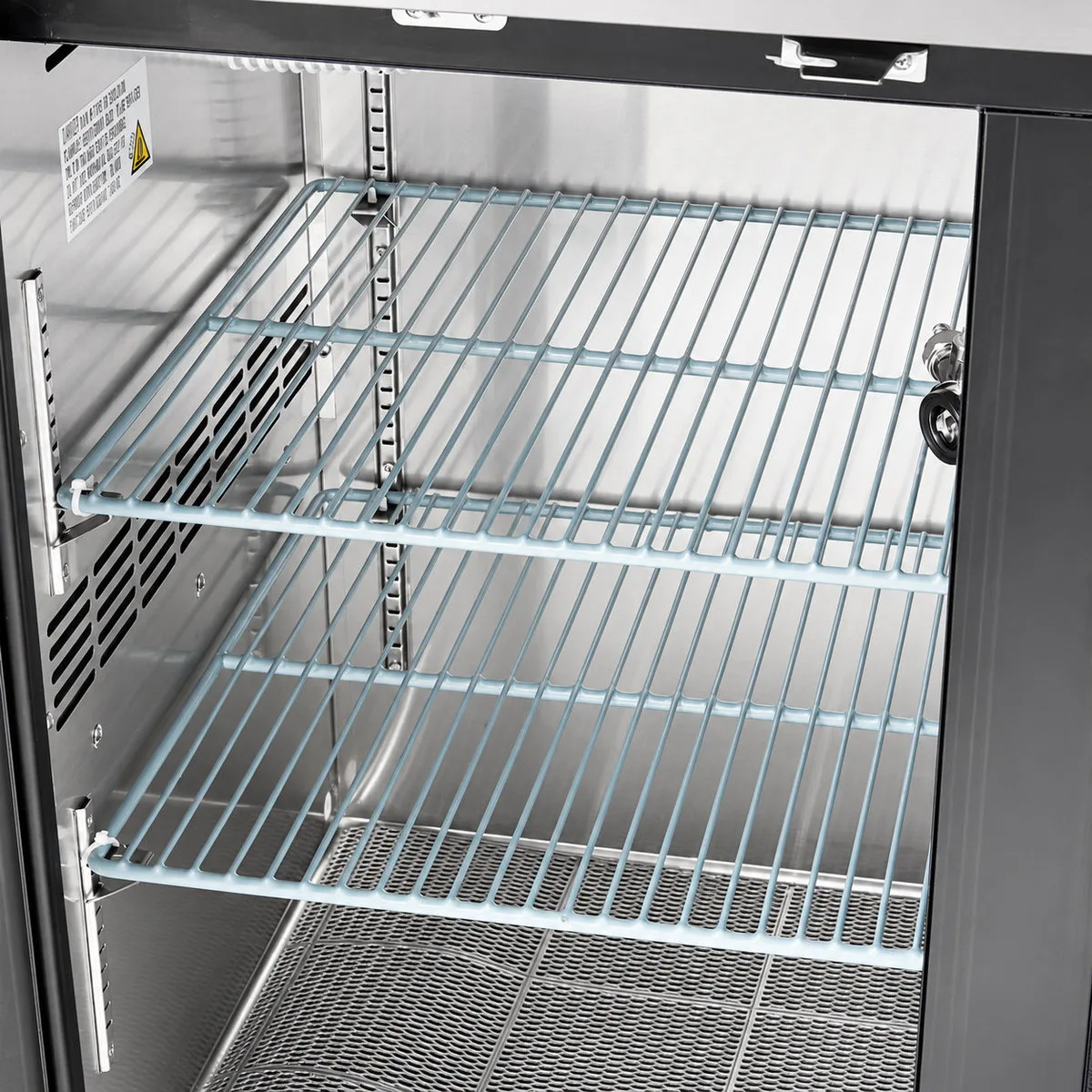

- Shelf Material
- Epoxy-coated steel
Cooling
- Temperature Range
- 33°F - 40°F
- Refrigerant
- R290
- Max. Ambient Temperature
- 90°F
- Defrosting
- Automatic
- Temperature Controller
- Digital
- Horsepower
- 1/4
Electrical
- Voltage
- 115
- Amps
- 4
- Hz
- 60
- Phase
- 1
- Plug Type
- NEMA 5-15P
- Electrical Cord Length
- 96"

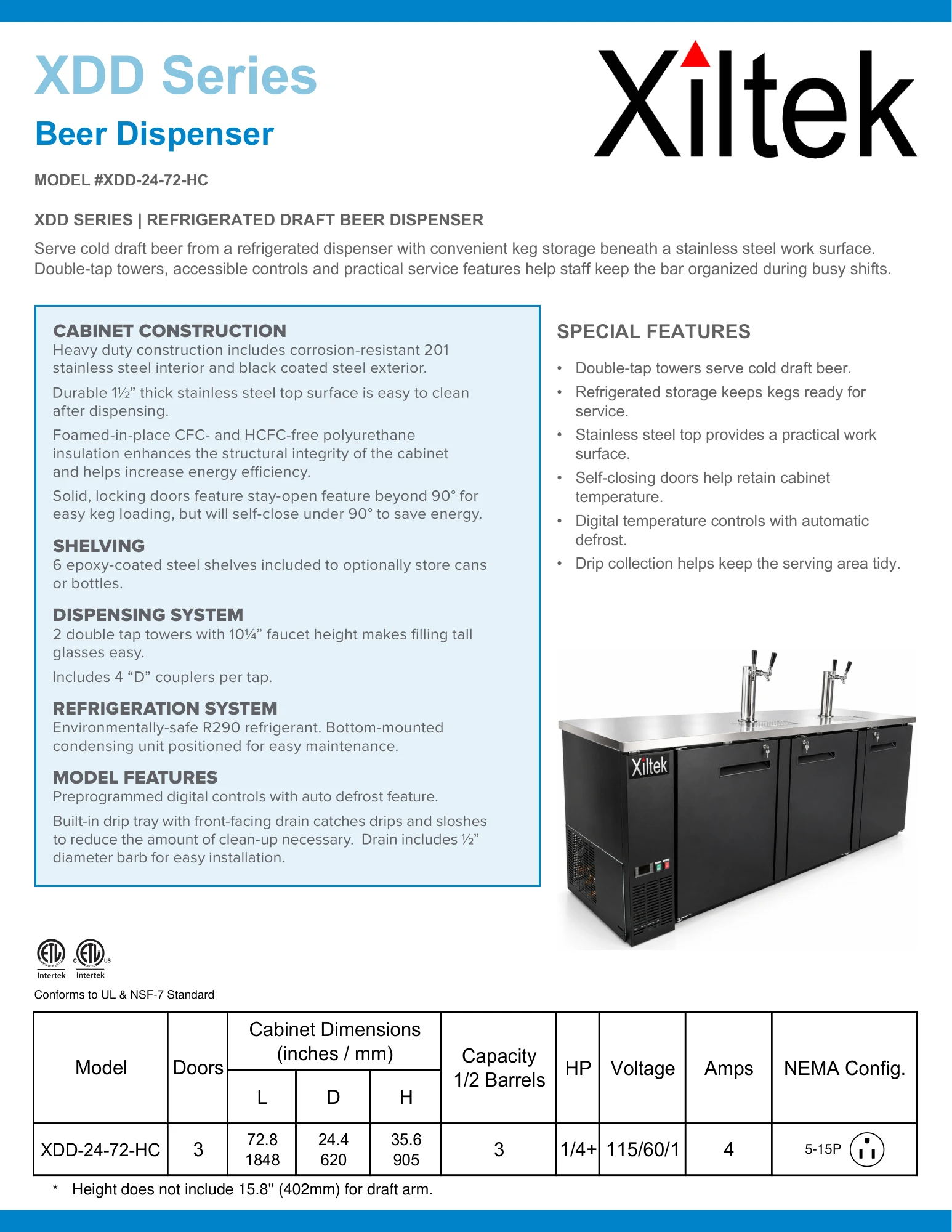

Specifications are taken from the model's spec sheet and may be updated without notice. Please confirm key dimensions and electrical requirements before ordering.
