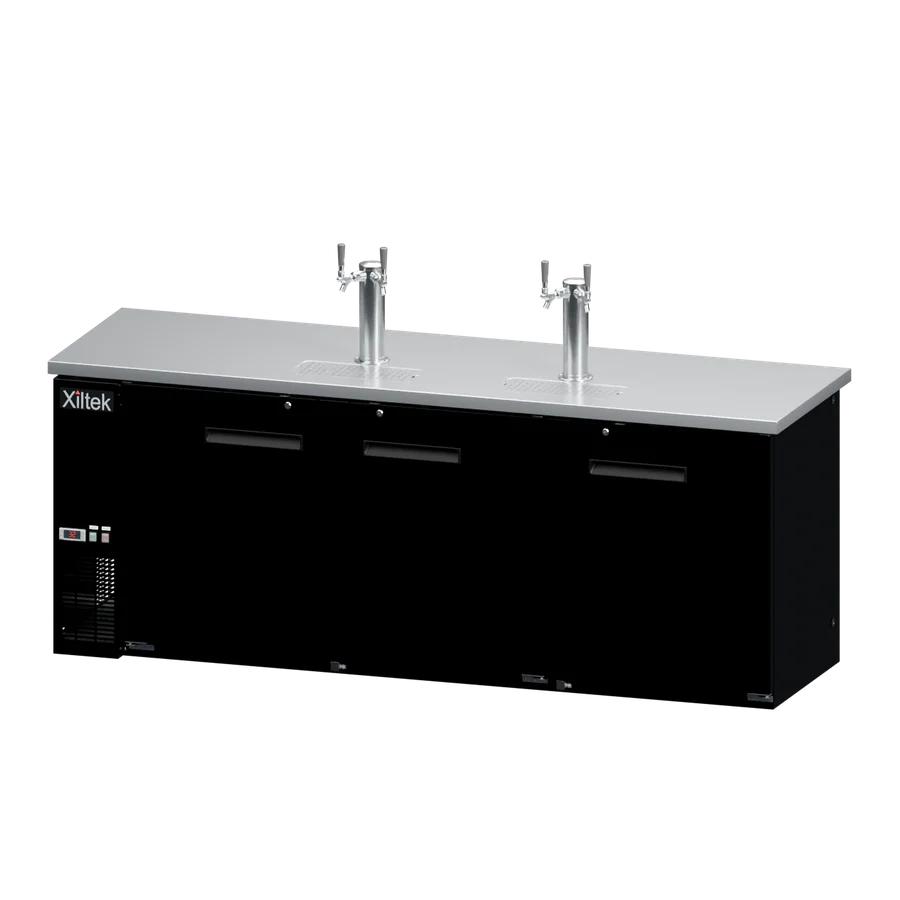

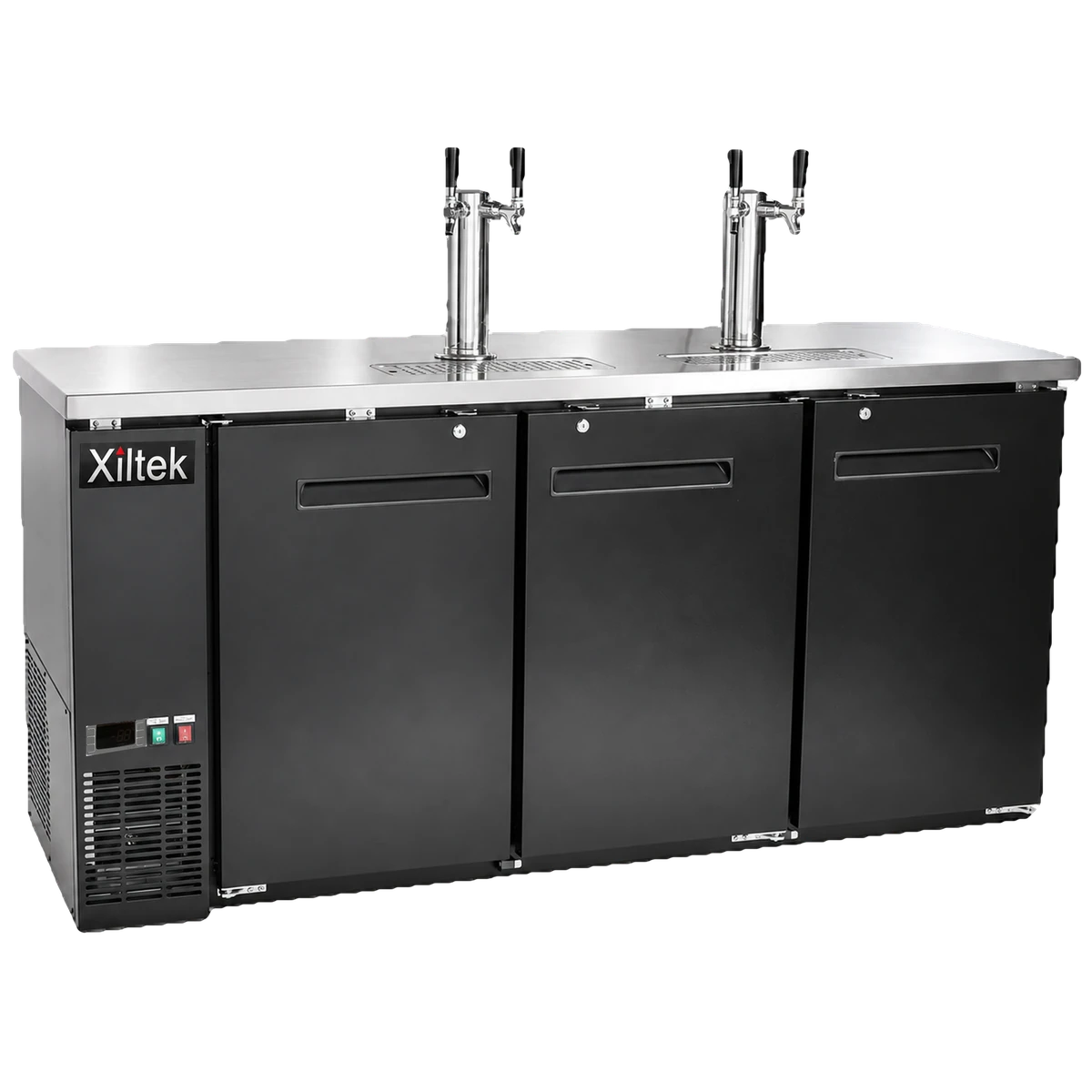

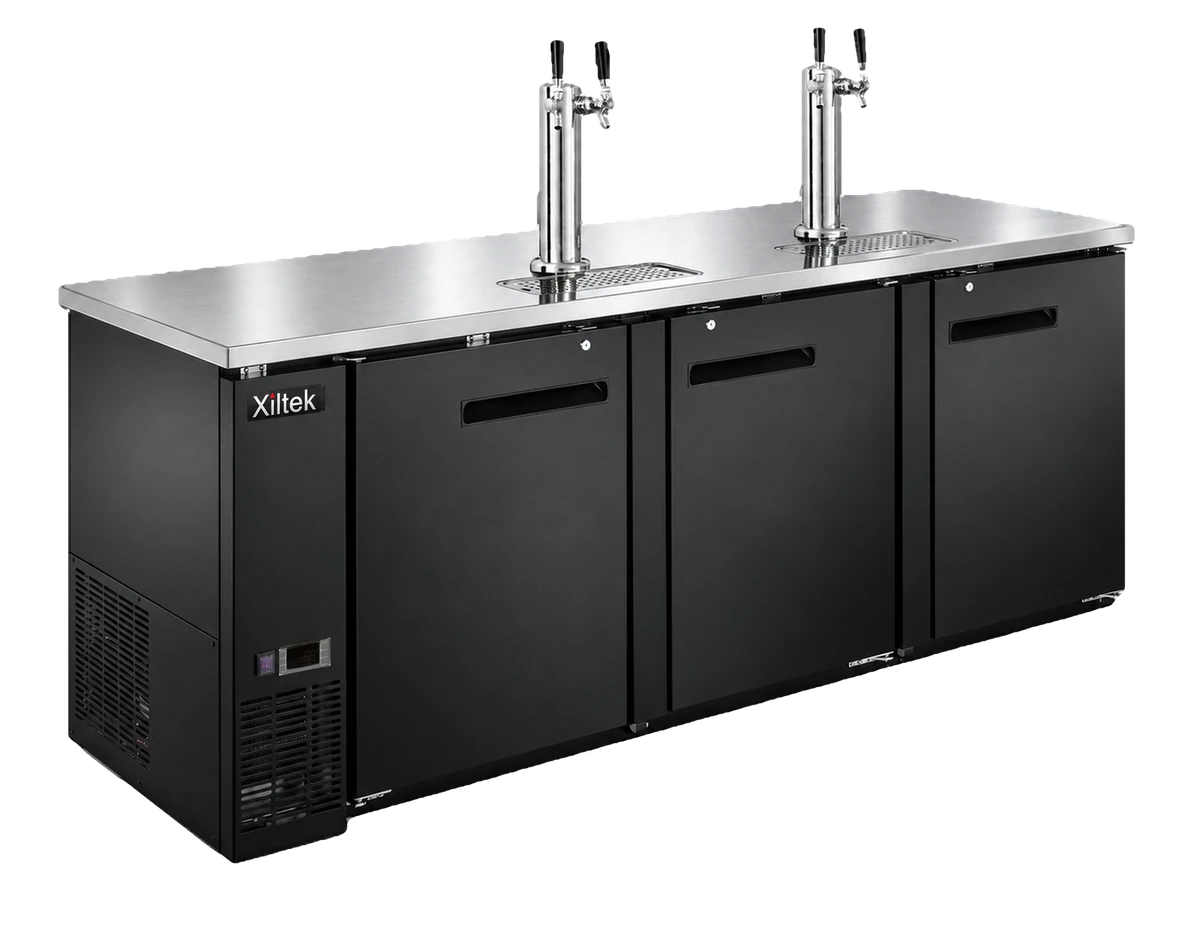

XDD-27-90-HC

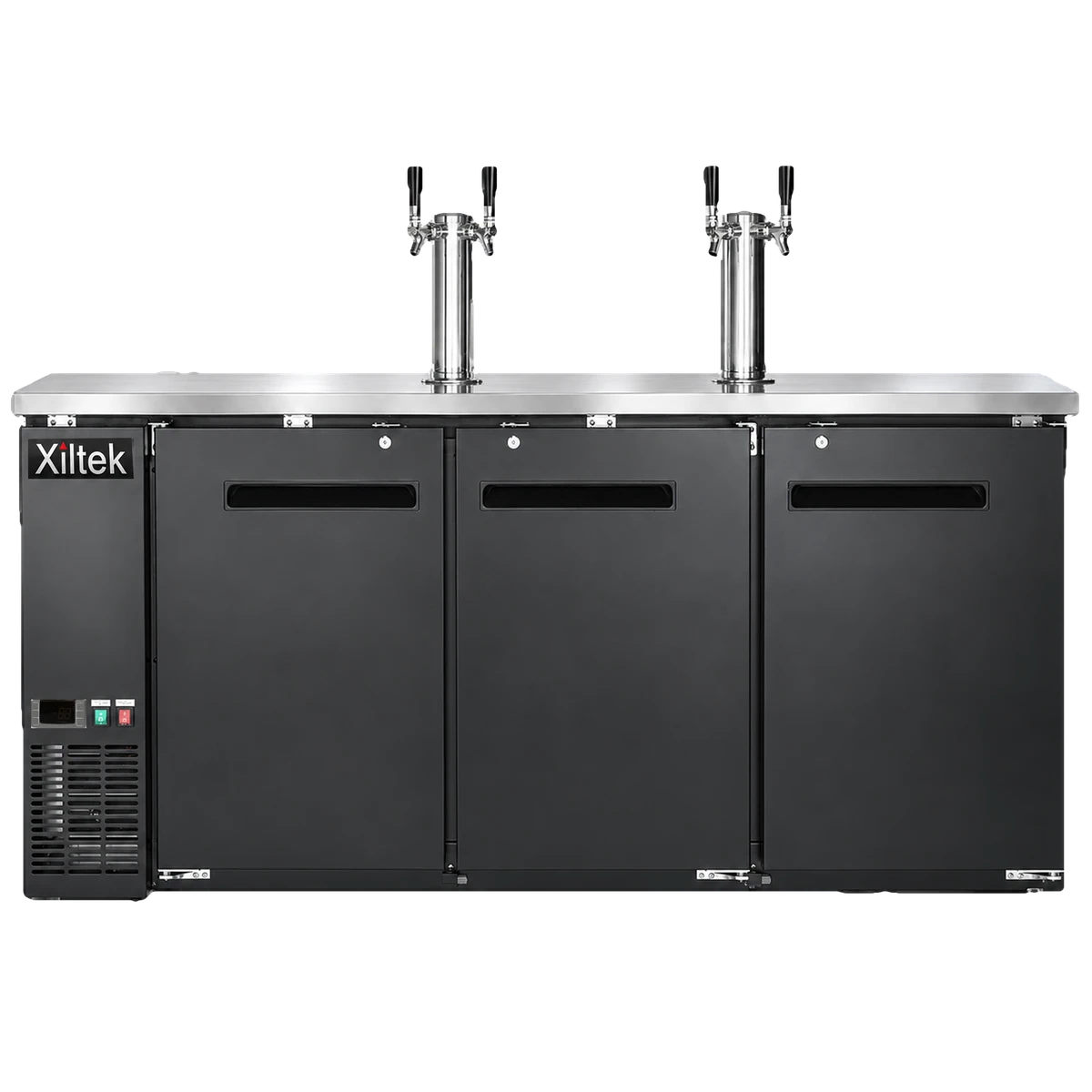

27" Depth 90" Beer Dispenser with (2) Double Tap
Your customers want draft beer, and you want convenience.
HOLDS33°F to 40°F
CAPACITY4 (1/2) Barrels
POWER115V · 4.7A
Overview

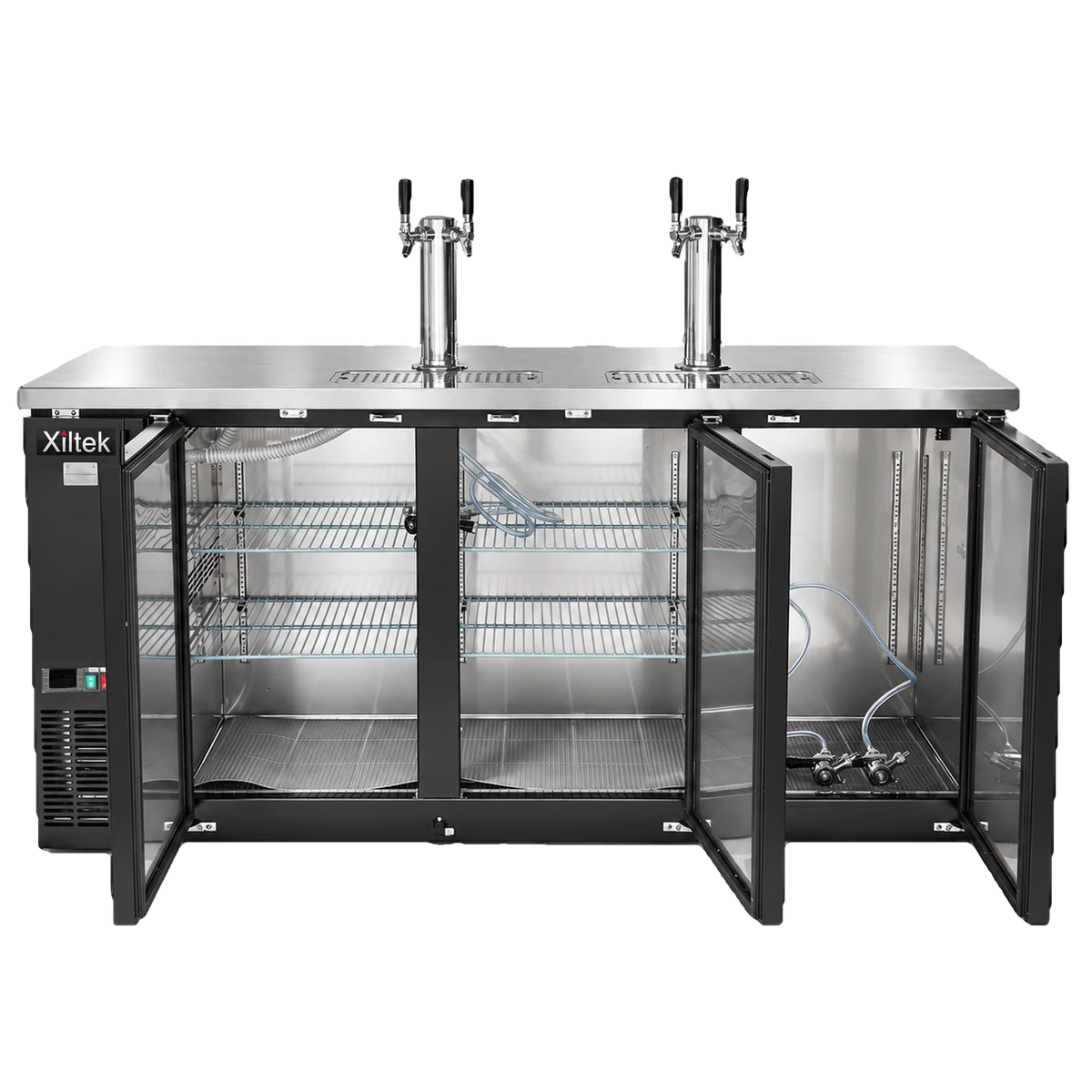

Your customers want draft beer, and you want convenience. To serve both, this beer dispenser is designed to simplify the tapping process with its (2) double tap towers and 4 couplers. Plus, it's built to withstand heavy use, featuring a stainless steel interior that won't degrade with the accidental spill or leak. With features like an R290 hydrocarbon natural refrigeration system efficiently holding any temperatures ranging from 33°F to 40°F (0.6°C to 4.4°C), an electronic control system, simple installation, and more.
Specifications
- Model
- XDD-27-90-HC
- Doors
- 3
- Draft Arms (Double Tap)
- 2
- Dimensions (L x D x H)
- 90.38" x 27.75" x 36.25"
- Capacity
- 4 (1/2) Barrels
- HP
- 1/4
- Voltage
- 115/60/1
- Amps
- 4.7
- NEMA Config
- 5-15P
- Casters
- Optional
View all specificationsHide full specifications

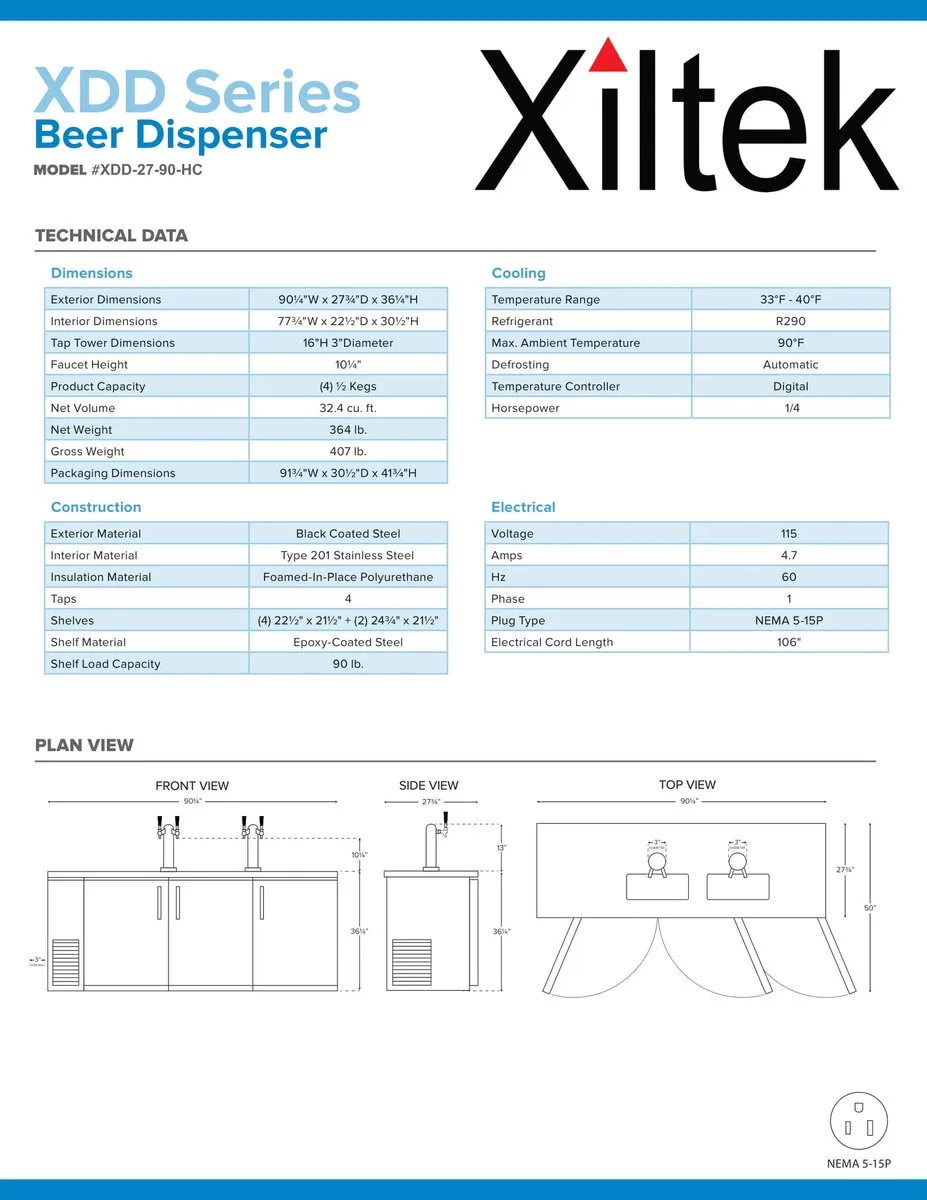

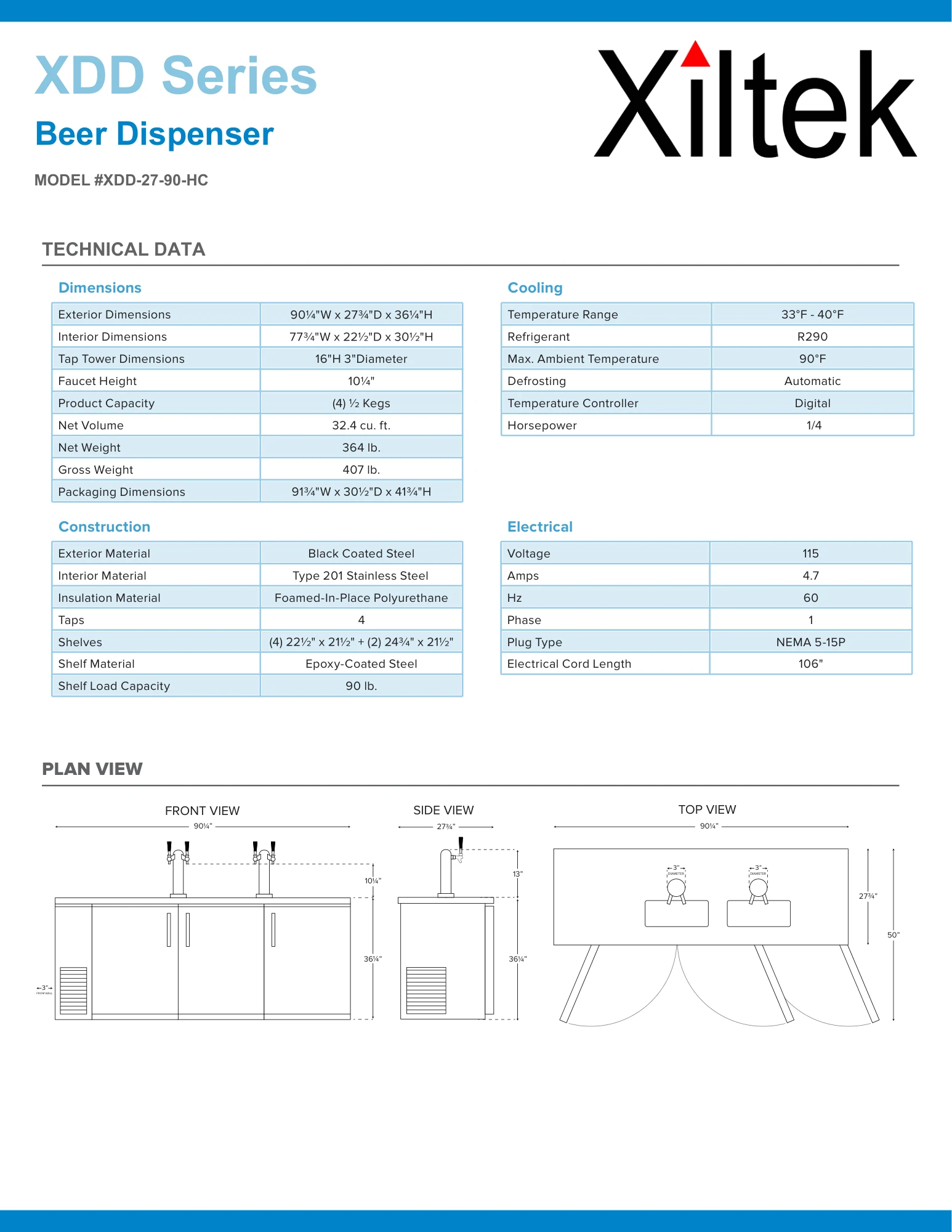

Dimensions
- Exterior Dimensions
- 90.38"W x 27.75"D x 36.25"H
- Tap Tower Dimensions
- 16"H 3"Diameter
- Net Volume
- 32.4 cu. ft.
- Net Weight
- 364 lb.
- Gross Weight
- 407 lb.
Construction
- Exterior Material
- Black Coated Steel
- Interior Material
- Type 201 Stainless Steel
- Insulation Material
- Foamed-In-Place Polyurethane
- Taps
- 4
- Shelf Material
- Epoxy-Coated Steel
- Shelf Load Capacity
- 90 lb.
Cooling
- Temperature Range
- 33°F to 40°F
- Refrigerant
- R290
- Max. Ambient Temperature
- 90°F
- Defrosting
- Automatic
- Temperature Controller
- Digital
- Horsepower
- 1/4
Electrical
- Voltage
- 115
- Amps
- 4.7
- Hz
- 60
- Phase
- 1
- Plug Type
- NEMA 5-15P
- Electrical Cord Length
- 106"
Features
- Cabinet constructionThe standard exterior is attractive, wear-resistant vinyl on steel in a black finish, with stainless exteriors available. The standard interior uses stainless steel walls, floor and ceiling.
- R290 refrigerantHydrocarbon R290 is environmentally friendly and more efficient than R134a and R404a refrigerants.
- Factory wiredWired at the factory and ready for connection to a 115/60/1 phase, 15 amp dedicated outlet.
- Refrigeration systemAn oversized, factory-balanced system that holds 33°F to 40°F (0.6°C to 4.4°C).
- Packaged and bottled productsA great fit for packaged and bottled products.
- LED lightingA standard LED light inside the cabinet keeps products easy to see.
- Accessible condenser coilThe condenser coil is easy to reach for cleaning, and for easy service access.
- Keg flexibilityDesigned to accommodate a variety of beer kegs.
