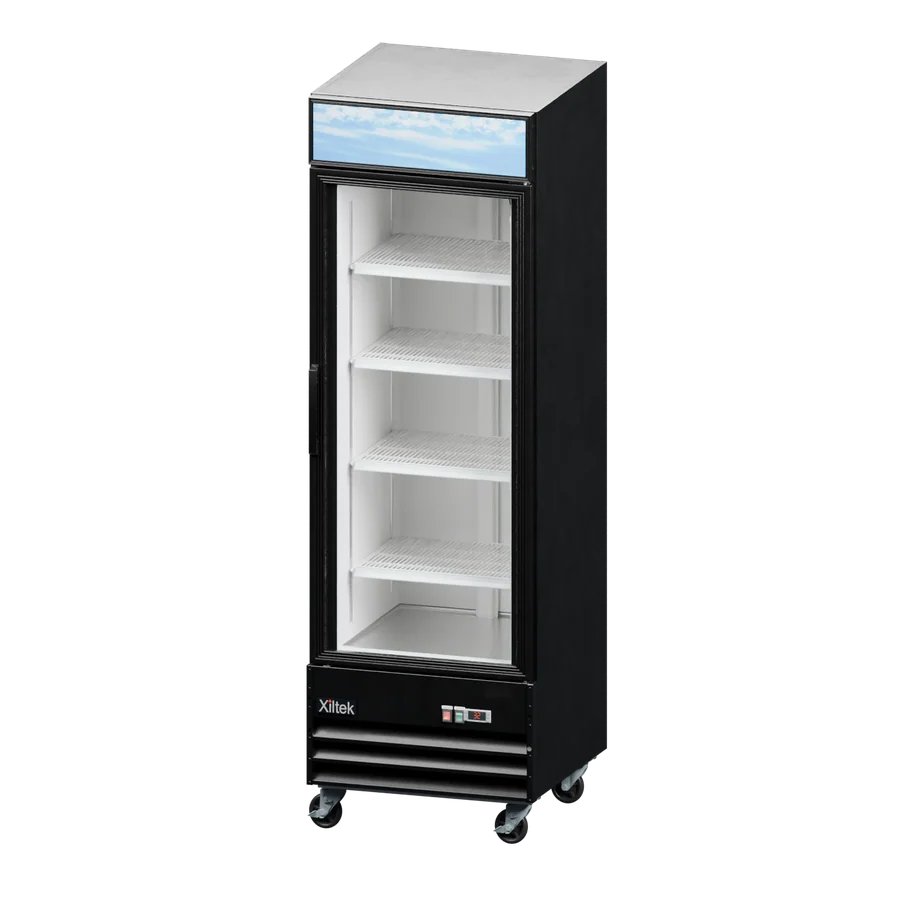

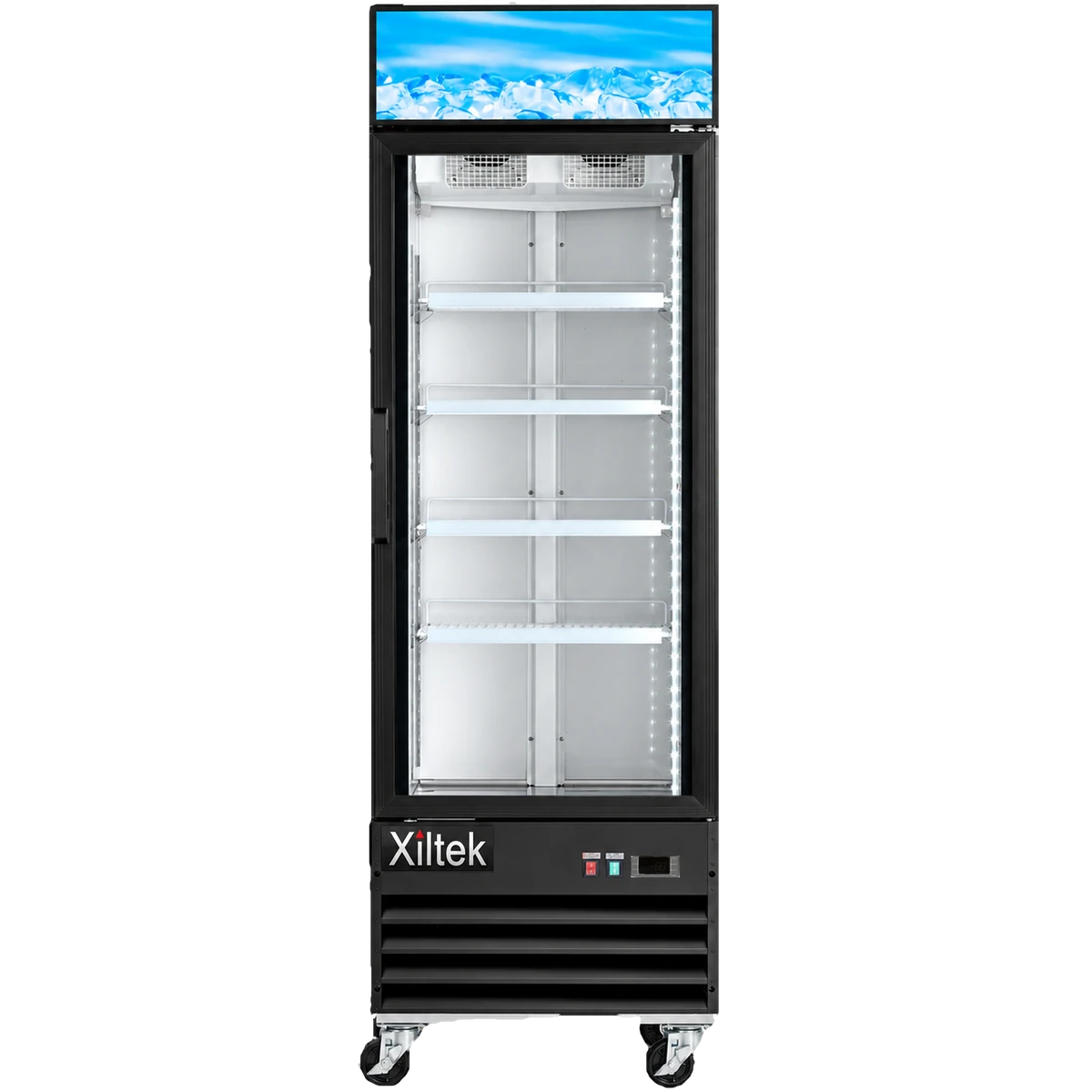

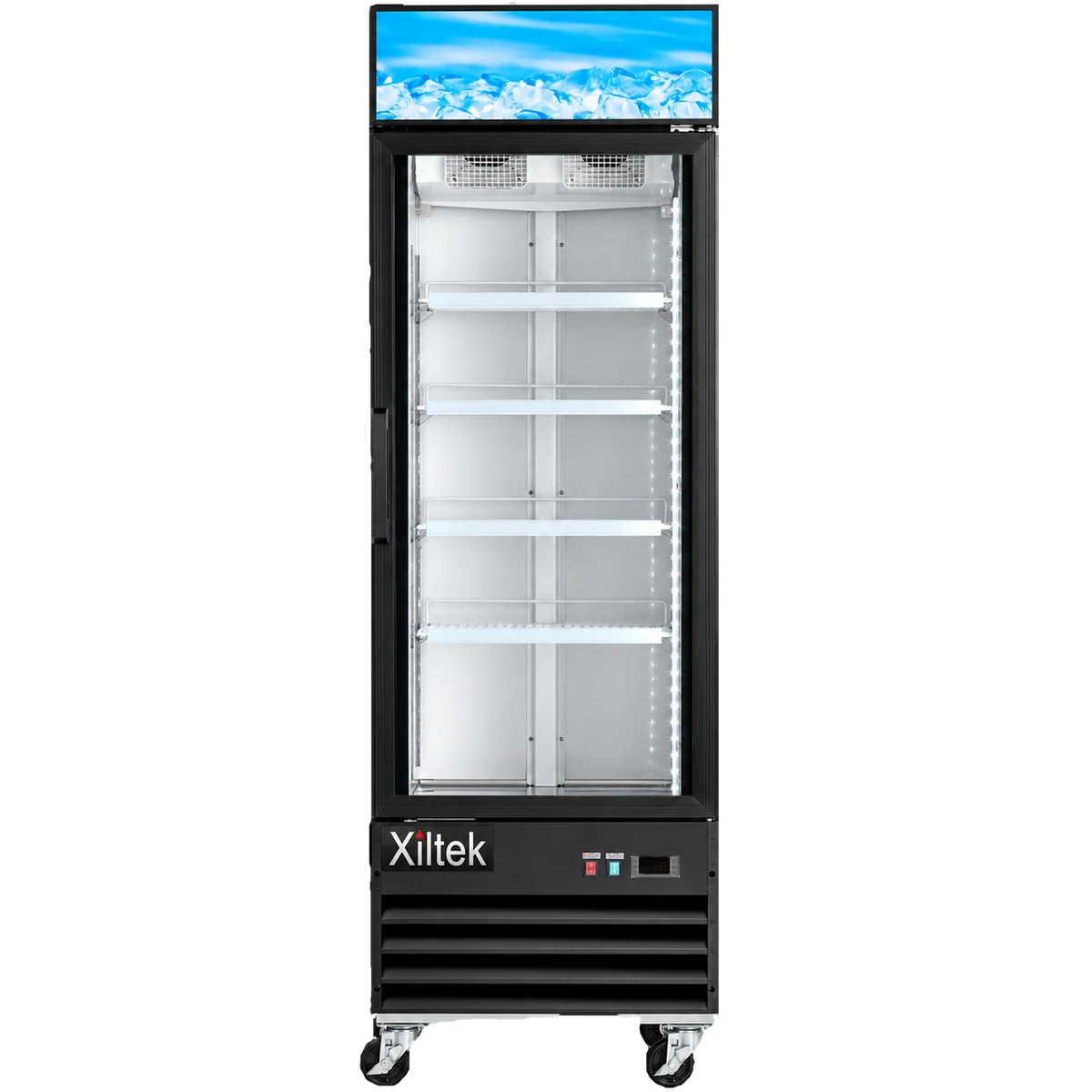

XRM-16F-HC

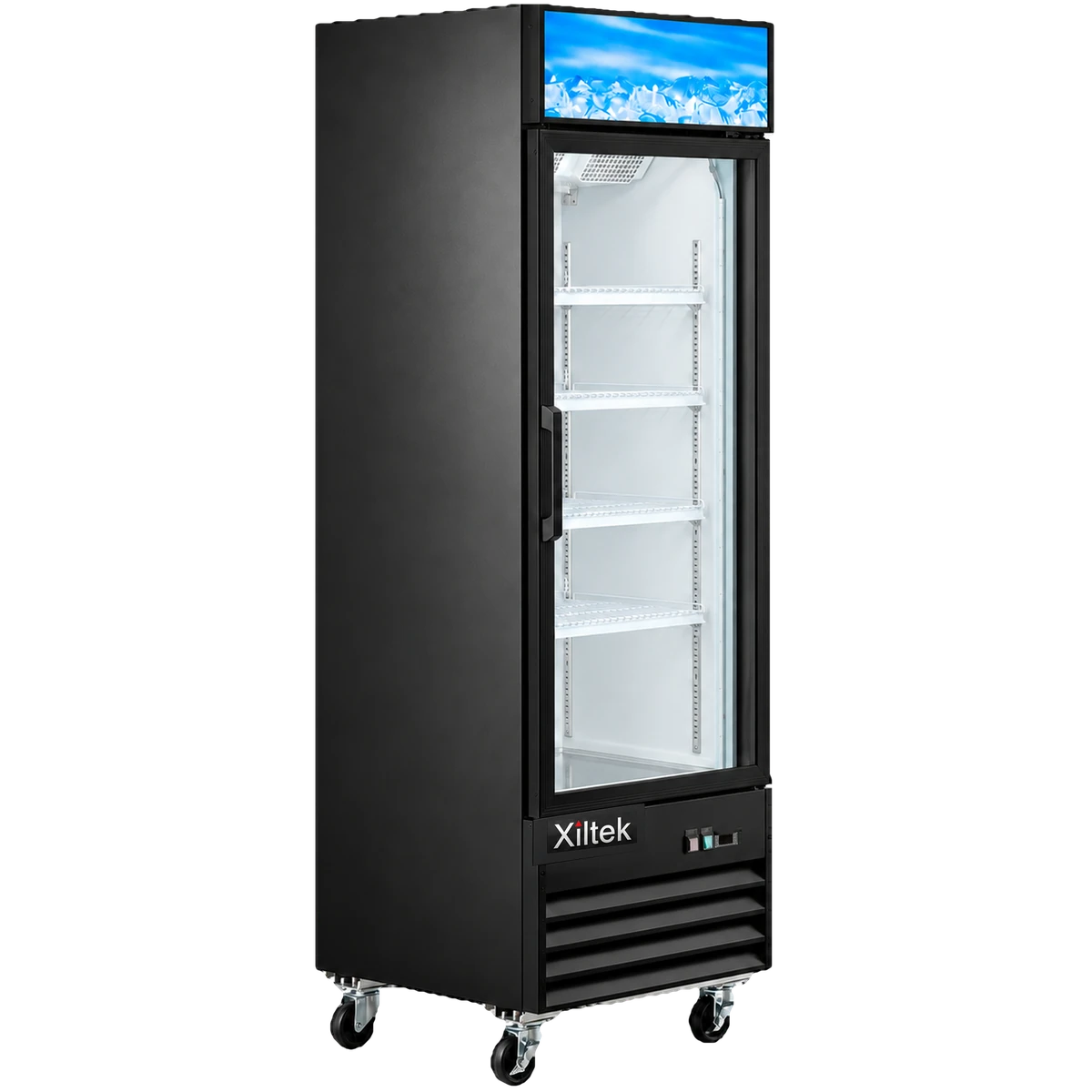

27" Swing Glass Door Merchandiser Freezer

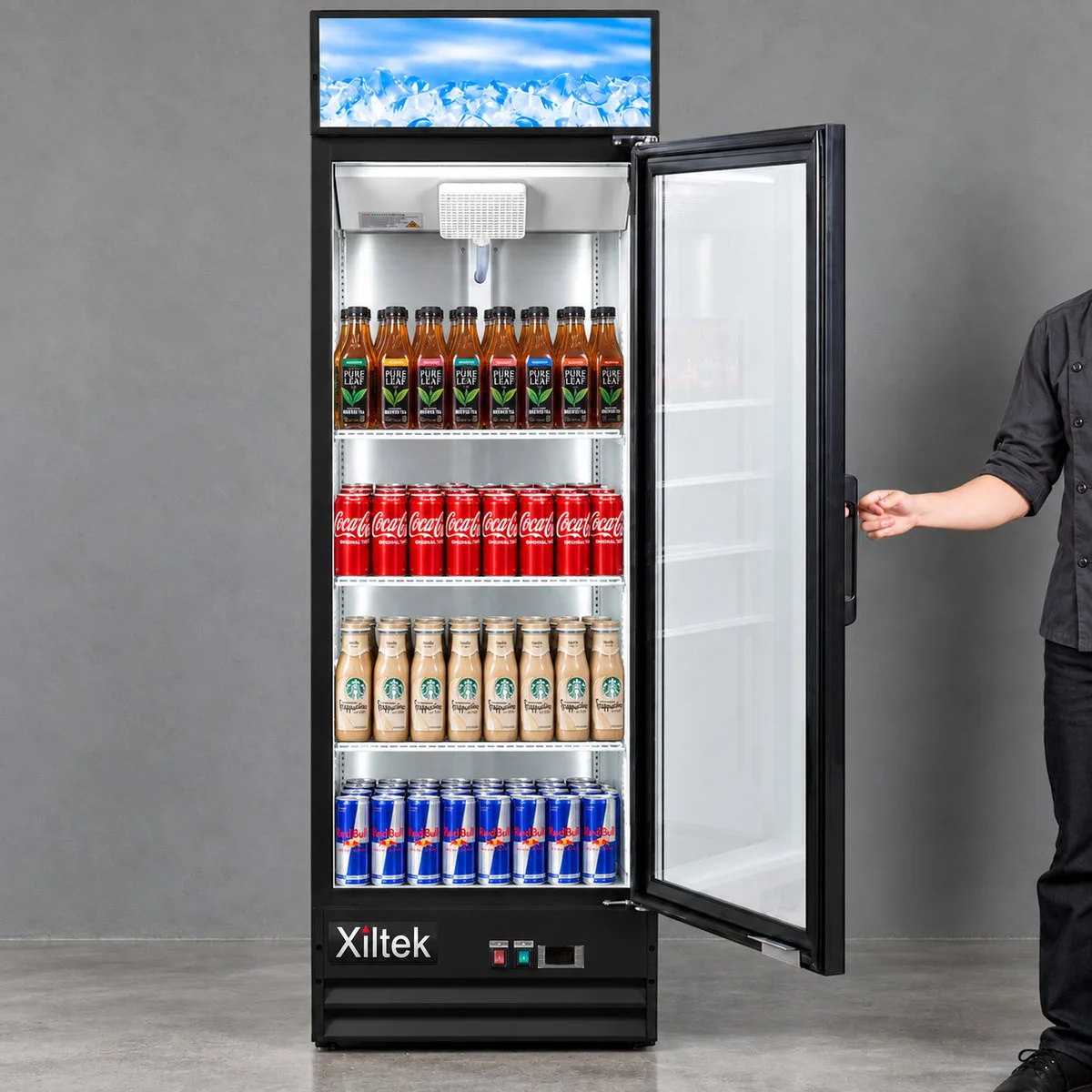

Xiltek’s Merchandiser Freezers are perfect for convenience stores, groceries, cafes, and other operations, this merchandiser freezer is designed to display! With features like an R290 hydrocarbon natural refrigeration system efficiently holding any temperatures ranging from -10°F to 0°F (-23.3°C to -17.8°C), ideal for ice cream and frozen food products. The anti-fogging glass doors with interior LED lights provide a great way for people to check your items out.
HOLDS
-10°F to 0°F
CAPACITY
16 cu. ft.
POWER
115V · 8.8A

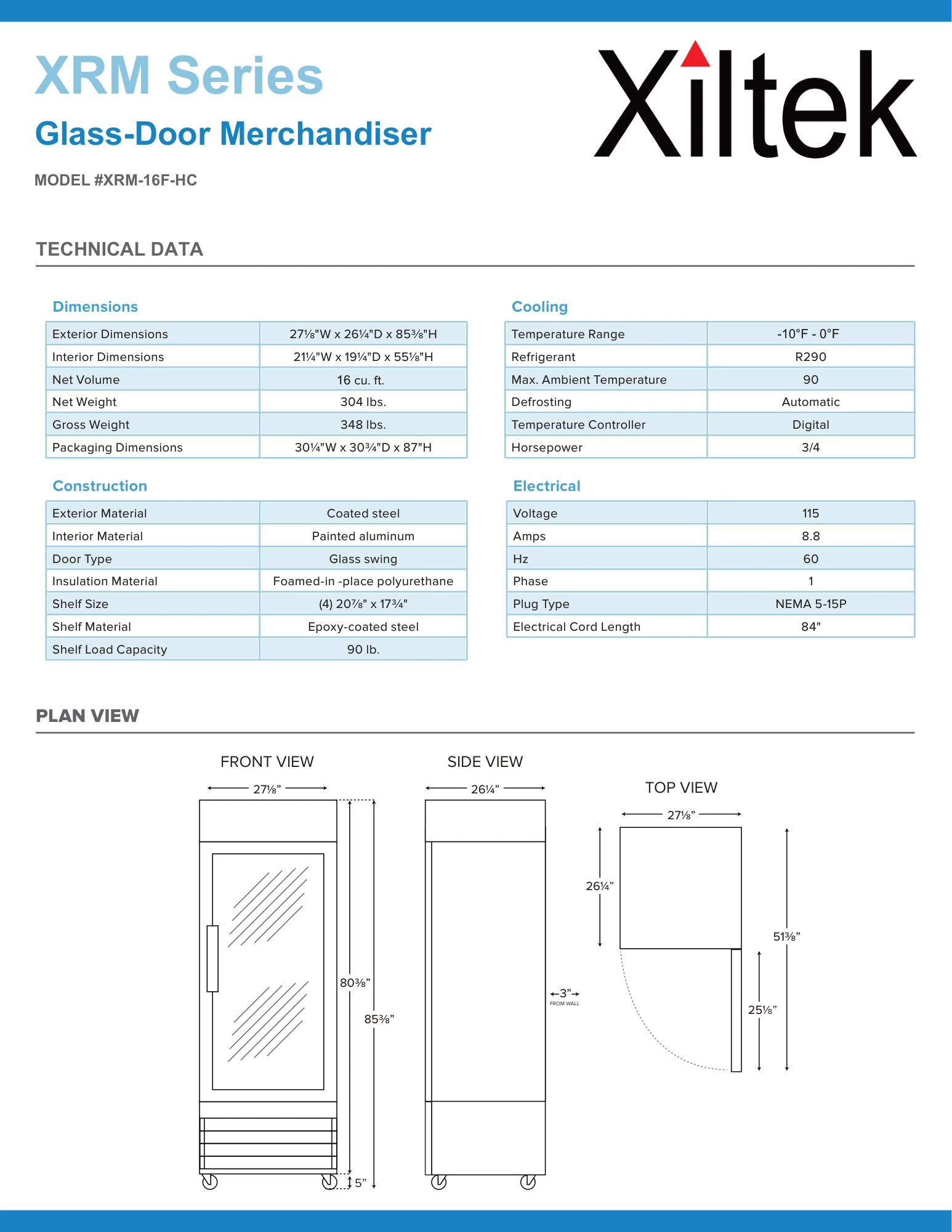

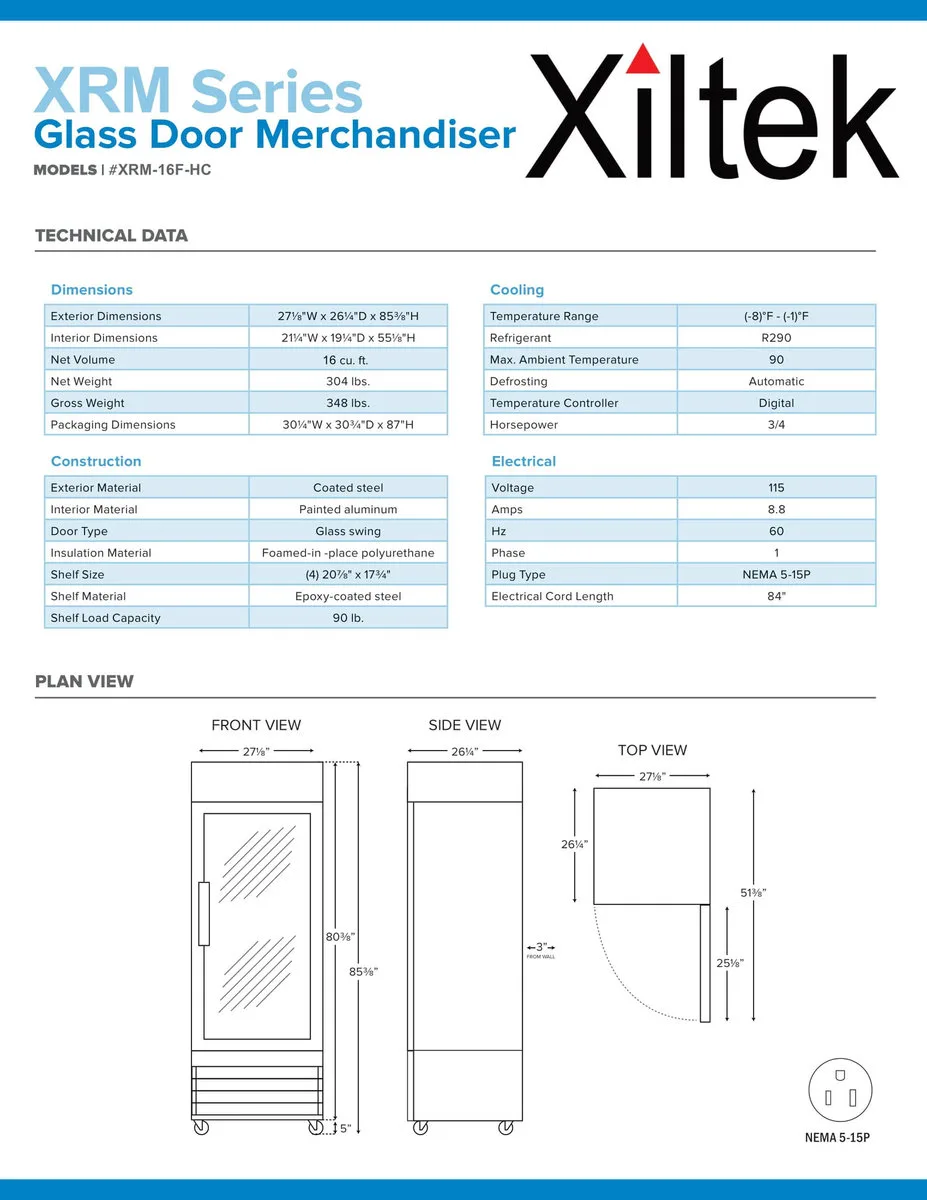

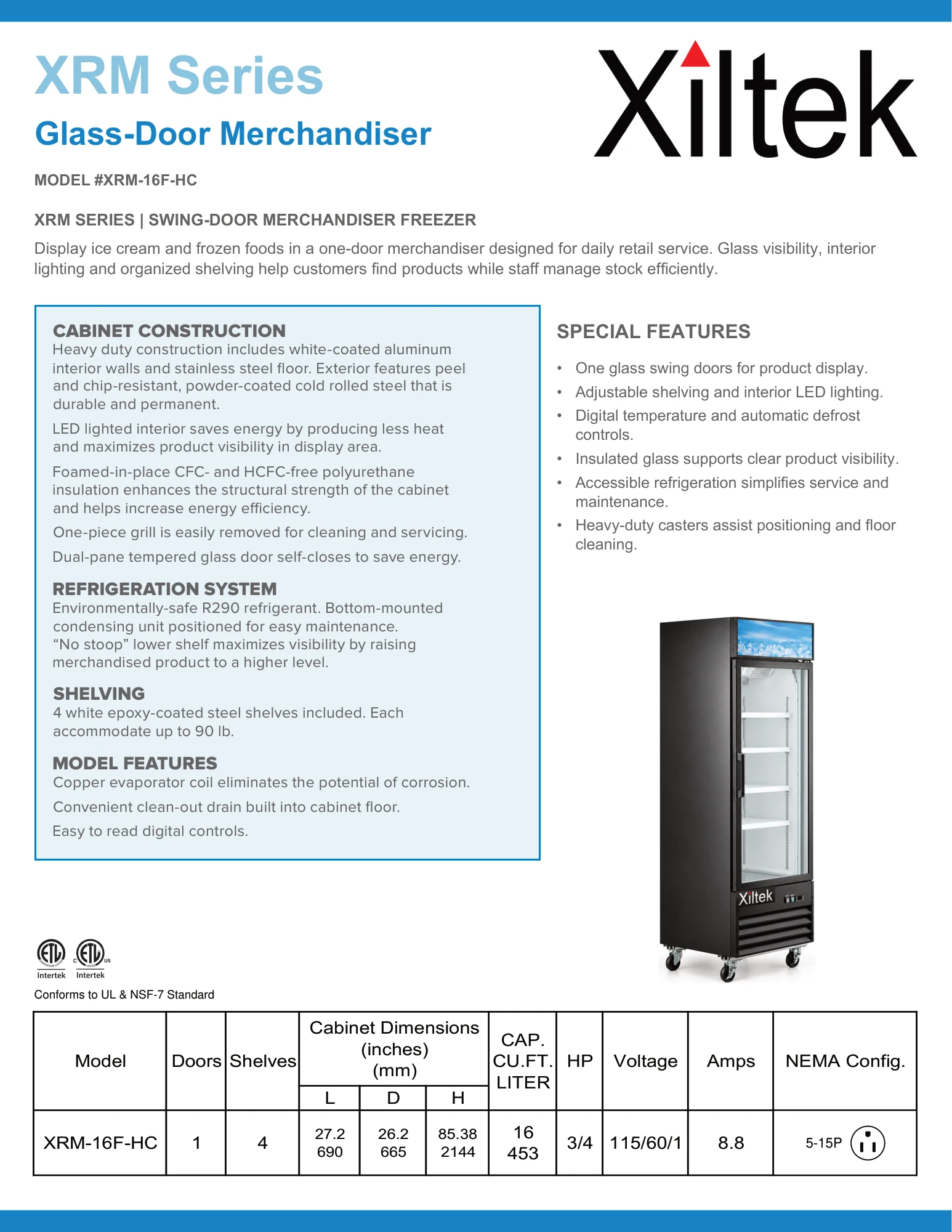

Specifications
- Model
- XRM-16F-HC
- Doors
- 1
- Shelves
- 4
- Dimensions (L x D x H)
- 27.2" x 26.2" x 85.38"
- Capacity
- 16 cu. ft.
- HP
- 3/4
- Voltage
- 115/60/1
- Amps
- 8.8
- NEMA Config
- 5-15P
- Casters
- Pre-Installed
View all specificationsHide full specifications
Dimensions
- Exterior Dimensions
- 27⅛"W x 26¼"D x 85⅜"H
- Interior Dimensions
- 21¼"W x 19¼"D x 55⅛"H
- Net Volume
- 16 cu. ft.
- Net Weight
- 304 lbs.
- Gross Weight
- 348 lbs.
- Packaging Dimensions
- 30¼"W x 30¾"D x 87"H
Construction
- Exterior Material
- Coated steel
- Interior Material
- Painted aluminum
- Door Type
- Glass swing
- Insulation Material
- Foamed-in-place polyurethane
- Shelf Size
- (4) 20⅞" x 17¾"
- Shelf Material
- Epoxy-coated steel
- Shelf Load Capacity
- 90 lb.
Electrical
- Voltage
- 115
- Amps
- 8.8
- Hz
- 60
- Phase
- 1
- Plug Type
- NEMA 5-15P
- Electrical Cord Length
- 84"

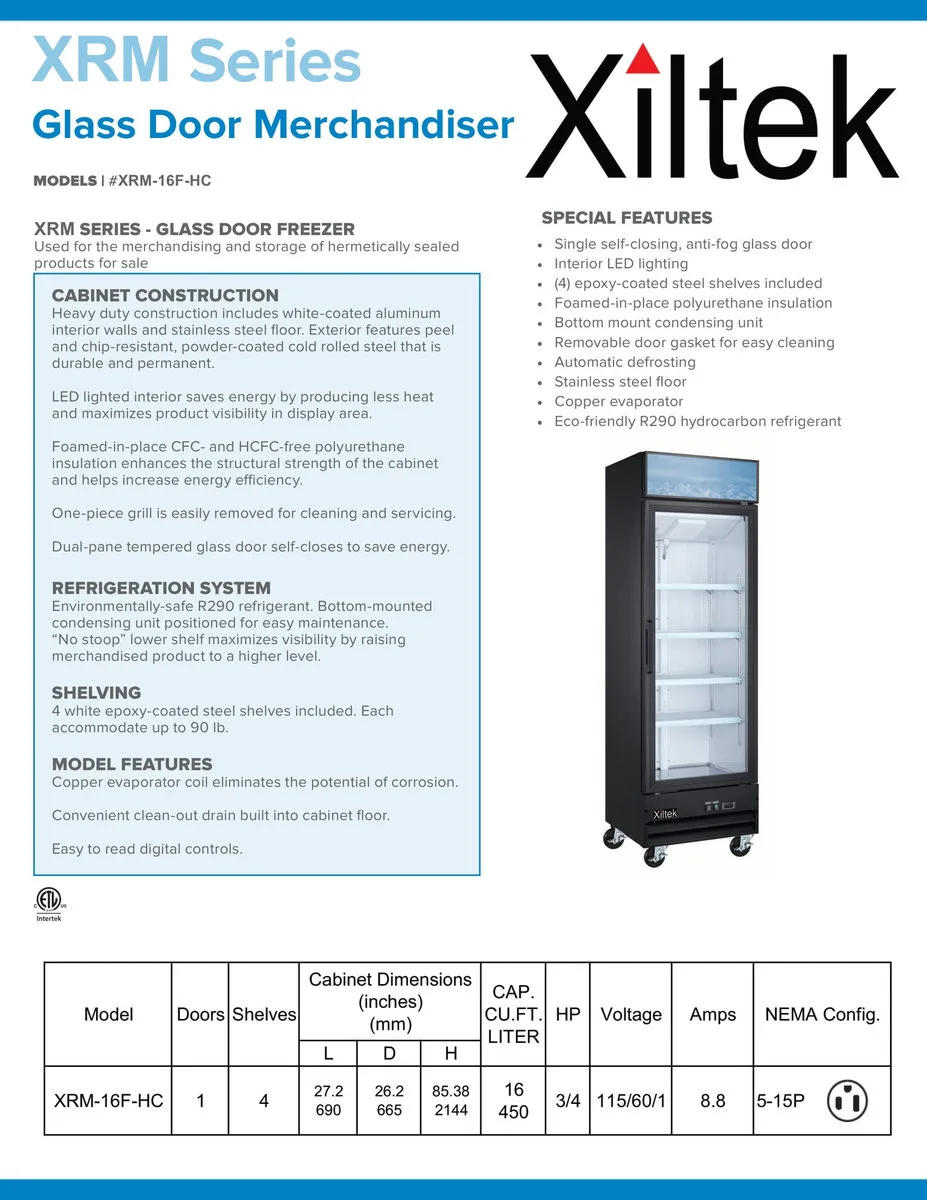

Features
- Cabinet constructionCoated steel exterior with an attractive aluminum interior liner and a stainless steel floor.
- Rounded interior cornersThe cabinet interior has rounded corners, which makes the storage room easy to clean.
- Glass door assemblyTriple-pane thermal insulated glass in extruded aluminum frames.
- Refrigeration systemHolds -10°F to 0°F (-23.3°C to -17.8°C), ideal for ice cream and frozen food products.
- Electronic control systemAdjustable temperature set point and defrost frequency, with error codes to diagnose service issues.

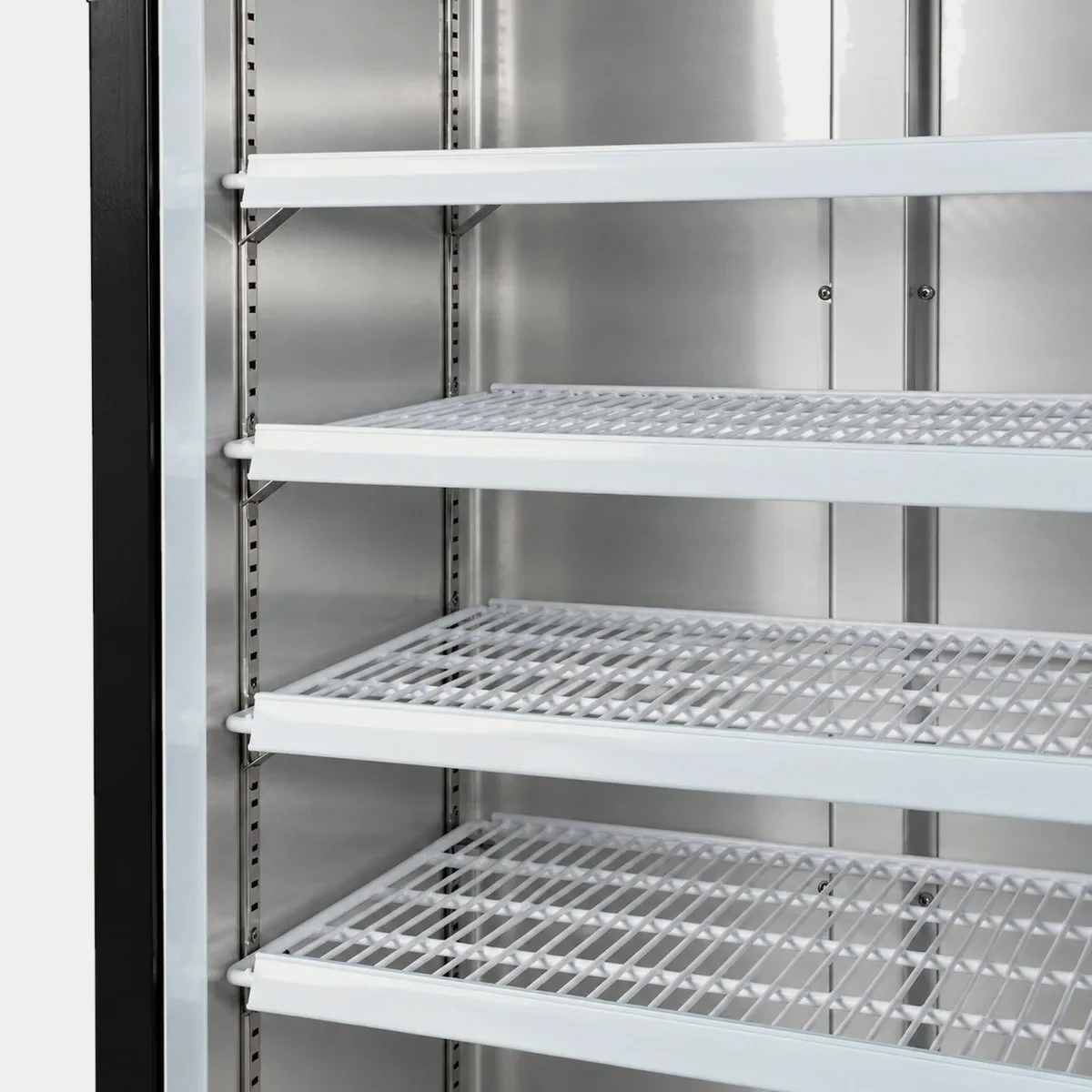

- Adjustable shelvesHeavy-duty, epoxy-coated shelves adjust to fit what you store.
- LED lightingAn LED light inside the cabinet keeps products easy to see.
- Heavy-duty castersStandard heavy-duty casters make it easy to move the unit and clean underneath it.
- No-stoop lower shelfThe lower shelf is positioned so you can reach it without stooping.
- Accessible condenser coilThe condenser coil is easy to reach for cleaning, and for easy service access.
- Simple installationNo plumbing is required, so installation is simple.
