XRM-53F-HC

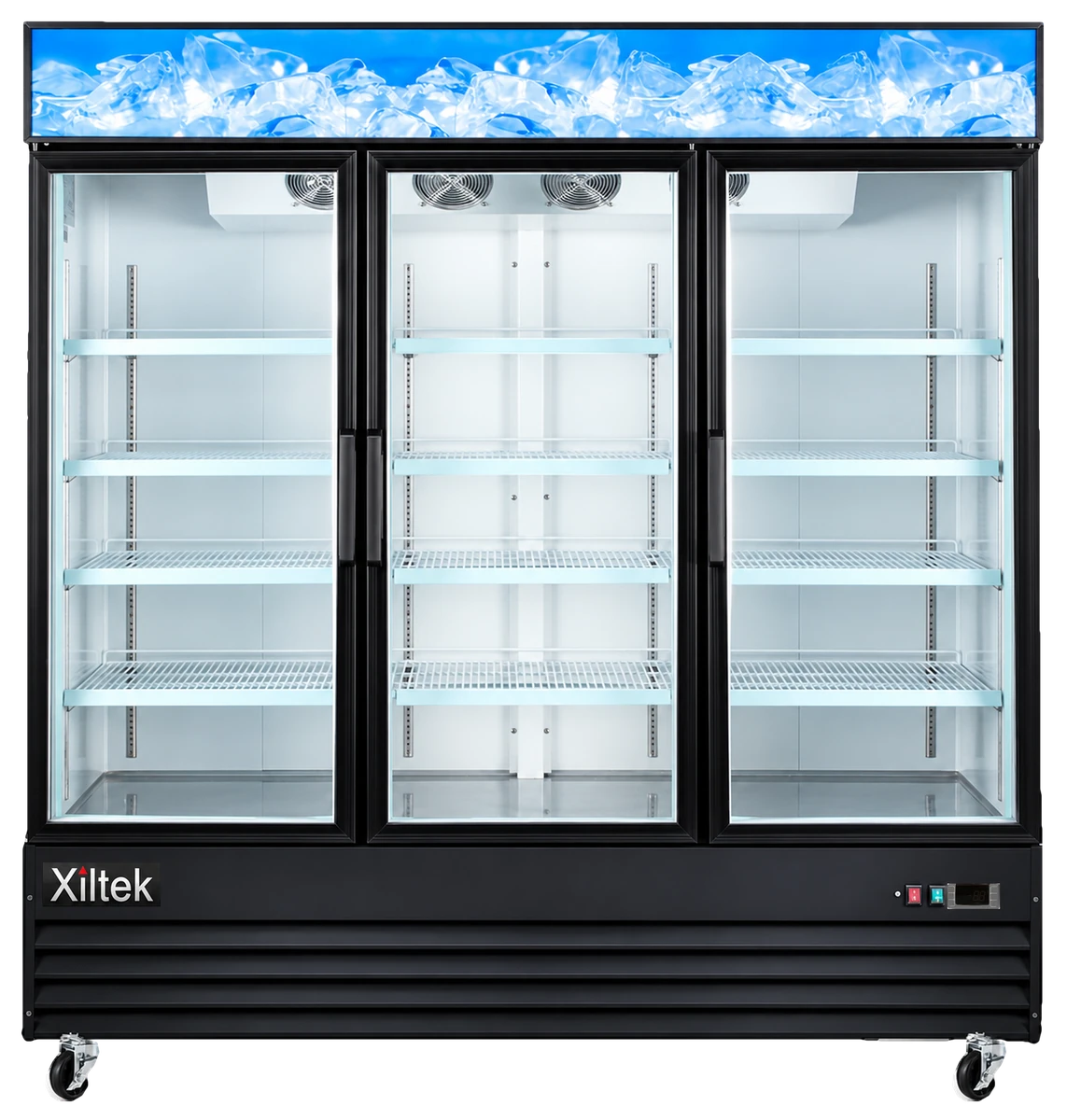

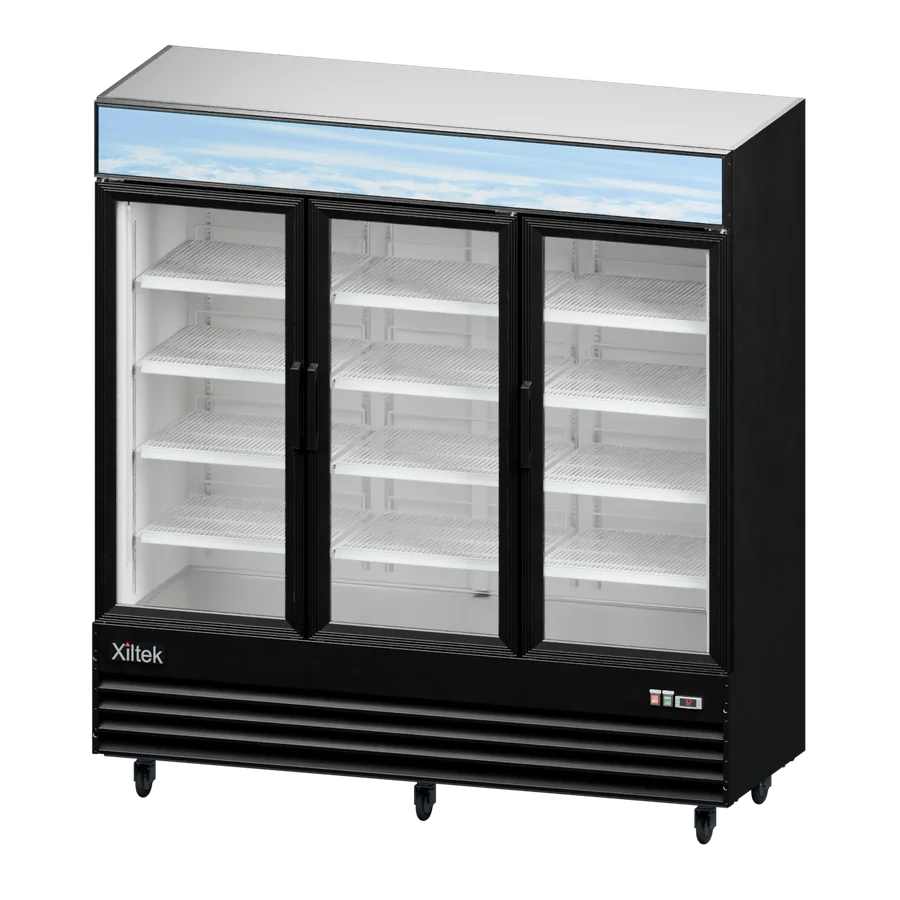

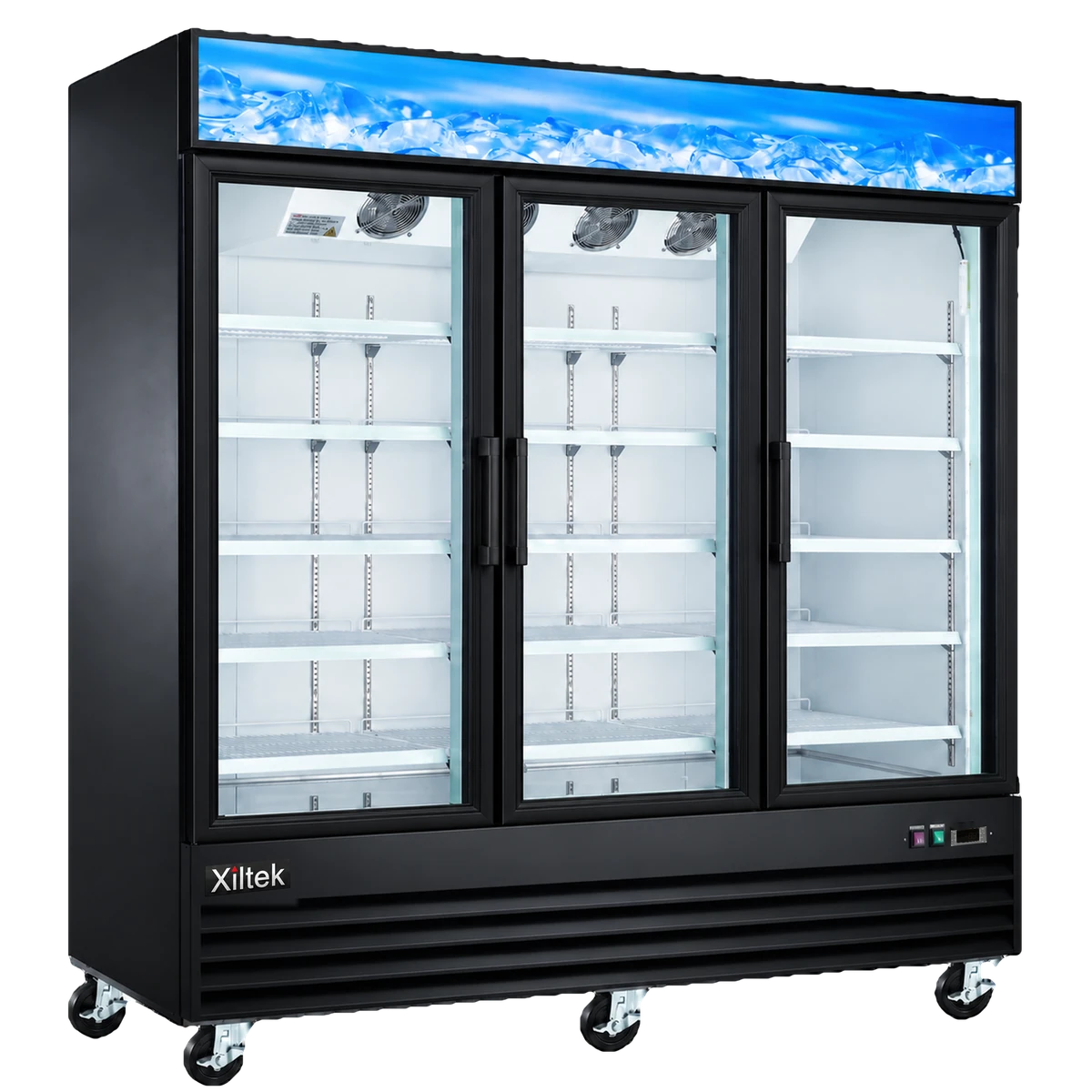

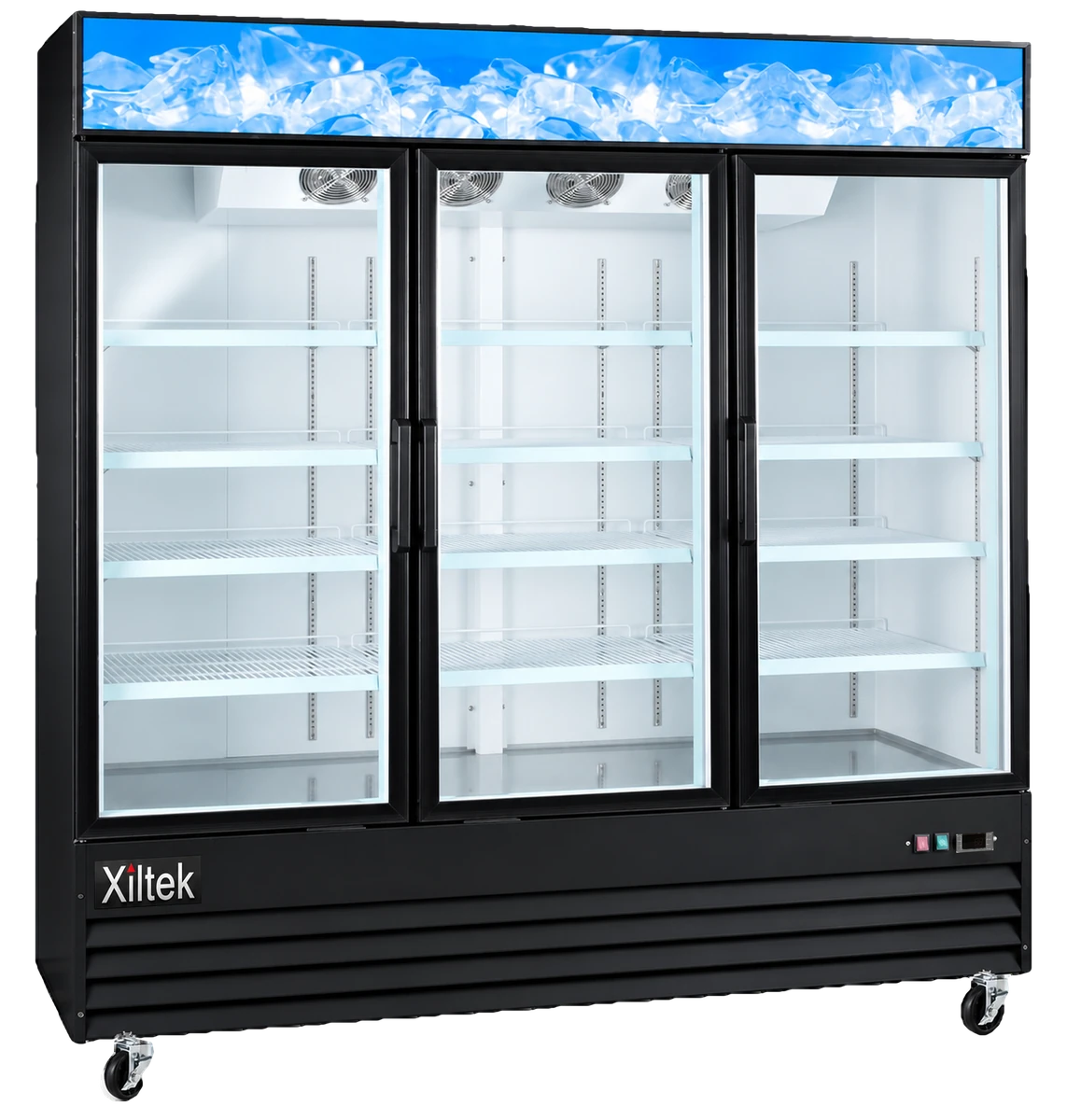

79" Triple Swing Glass Door Merchandiser Freezer
Xiltek’s Merchandiser Freezers are perfect for convenience stores, groceries, cafes, and other operations, this merchandiser freezer is designed to display!
HOLDS-10°F to 0°F
CAPACITY53 cu. ft.
POWER115V · 16.3A
Overview
Xiltek’s Merchandiser Freezers are perfect for convenience stores, groceries, cafes, and other operations, this merchandiser freezer is designed to display! With features like an R290 hydrocarbon natural refrigeration system efficiently holding any temperatures ranging from -10°F to 0°F (-23.3°C to -17.8°C), ideal for ice cream and frozen food products. The anti-fogging glass doors with interior LED lights provide a great way for people to check your items out.
Specifications
- Model
- XRM-53F-HC
- Doors
- 3
- Shelves
- 12
- Dimensions (L x D x H)
- 78.25" x 30" x 85.75"
- Capacity
- 53 cu. ft.
- HP
- 2 x 3/4
- Voltage
- 115/60/1
- Amps
- 16.3
- NEMA Config
- (Two) 5-15P
- Casters
- Pre-Installed
View all specificationsHide full specifications

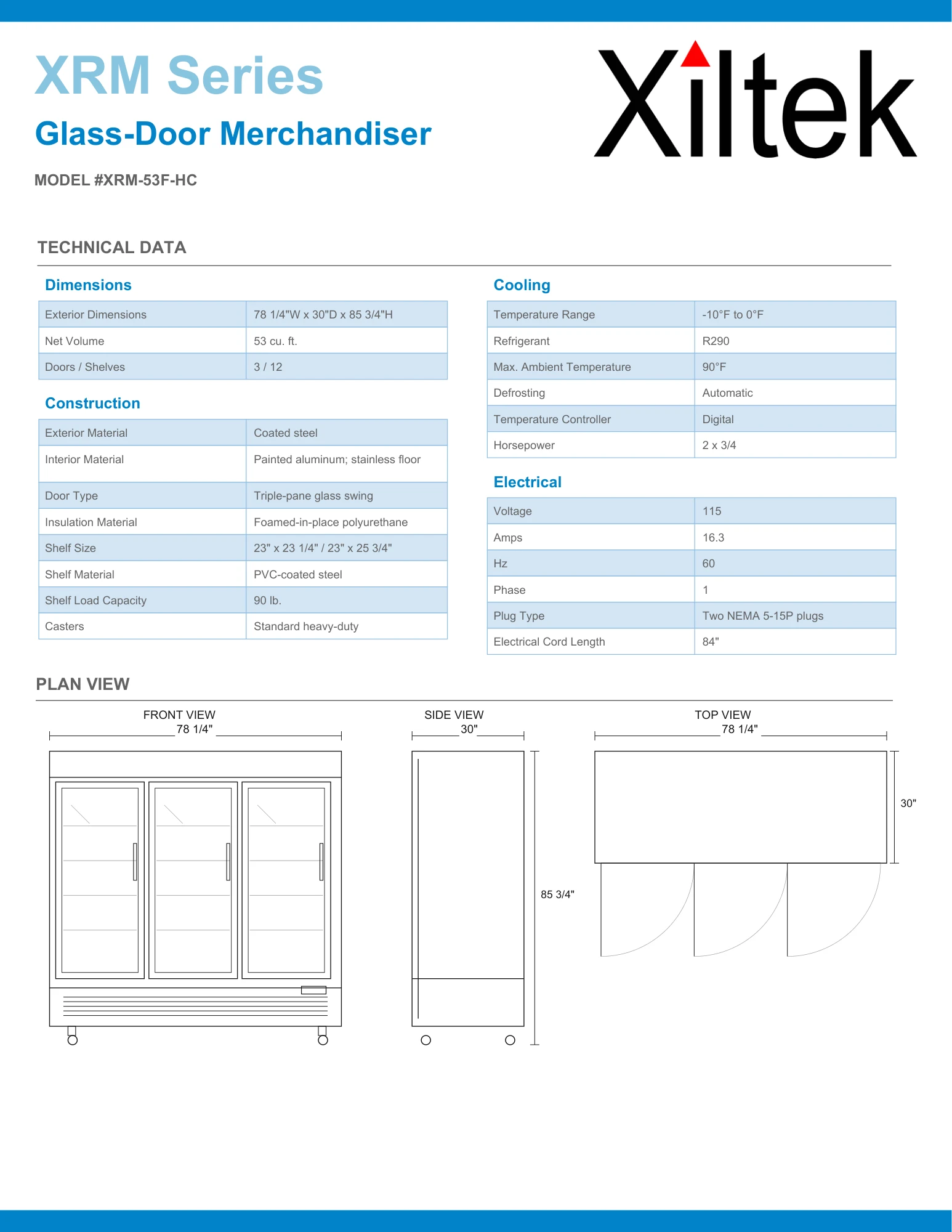

Dimensions
- Exterior Dimensions
- 78 1/4"W x 30"D x 85 3/4"H
- Net Volume
- 53 cu. ft.
- Doors / Shelves
- 3 / 12
Construction
- Exterior Material
- Coated steel
- Interior Material
- Painted aluminum; stainless floor
- Door Type
- Triple-pane glass swing
- Insulation Material
- Foamed-in-place polyurethane
- Shelf Size
- 23" x 23 1/4" / 23" x 25 3/4"
- Shelf Material
- PVC-coated steel
- Shelf Load Capacity
- 90 lb.
- Casters
- Standard heavy-duty
Cooling
- Temperature Range
- -10°F to 0°F
- Refrigerant
- R290
- Max. Ambient Temperature
- 90°F
- Defrosting
- Automatic
- Temperature Controller
- Digital
- Horsepower
- 2 x 3/4
Electrical
- Voltage
- 115
- Amps
- 16.3
- Hz
- 60
- Phase
- 1
- Plug Type
- Two NEMA 5-15P plugs
- Electrical Cord Length
- 84"
Features
- Cabinet constructionCoated steel exterior with an attractive aluminum interior liner and a stainless steel floor.
- Rounded interior cornersThe cabinet interior has rounded corners, which makes the storage room easy to clean.
- Glass door assemblyTriple-pane thermal insulated glass in extruded aluminum frames.
- Refrigeration systemHolds -10°F to 0°F (-23.3°C to -17.8°C), ideal for ice cream and frozen food products.
- Electronic control systemAdjustable temperature set point and defrost frequency, with error codes to diagnose service issues.
- Adjustable shelvesHeavy-duty, PVC-coated shelves adjust to fit what you store.
- LED lightingAn LED light inside the cabinet keeps products easy to see.
- Heavy-duty castersStandard heavy-duty casters make it easy to move the unit and clean underneath it.
- No-stoop lower shelfThe lower shelf is positioned so you can reach it without stooping.
- Accessible condenser coilThe condenser coil is easy to reach for cleaning, and for easy service access.
- Simple installationNo plumbing is required, so installation is simple.
